SUSPENSION ASSEMBLY - 0940243 (4924972497b013)

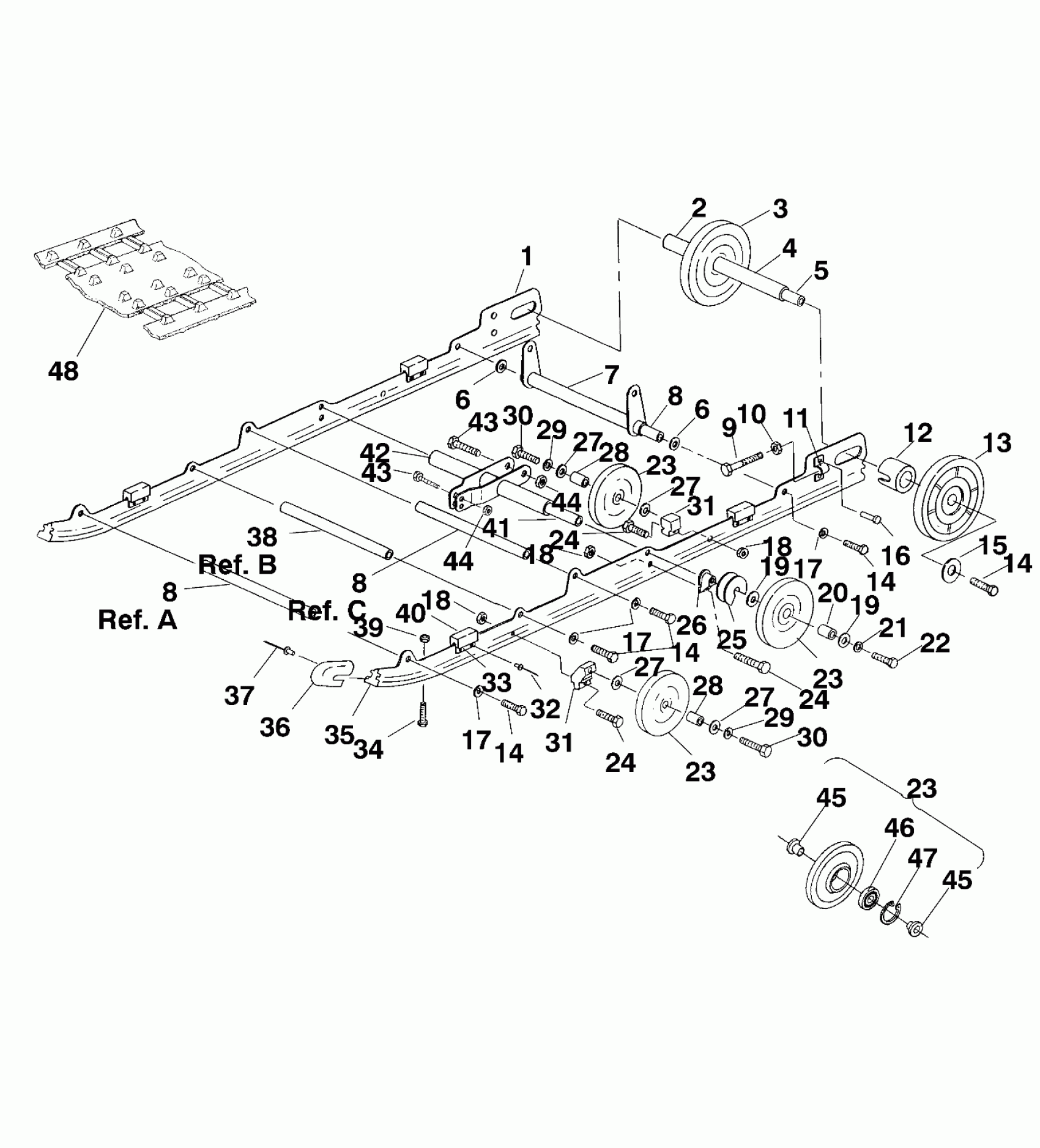

Polaris TRAIL - 0940761 SUSPENSION ASSEMBLY - 0940243 (4924972497b013) Diagram
#
1
RAIL ASM, RH. (Incl.11,33,36,40)
1540742
$289.99
1
RAIL ASM, LH. (Incl. 11,33,36,40)
1540741
$140.87
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM,R.PIVOT,BLK.
1540721-067
Unavailable
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,TEAL
1594050
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
15
WASHER FLAT(10)
7555732
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
20
SPACER, WHEEL
5333116
$7.99
21
WASHER LOCK(10)
7553101
$3.99
22
BOLT(10)
7512538
$6.39
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
ROLLER, SPRING
5431366
$10.51
26
SPACER
5630399
$11.99
27
WASHER(10)
7555804
$3.99
27
WASHER(10)
7555804
$3.99
27
WASHER(10)
7555804
$3.99
27
WASHER(10)
7555804
$3.99
28
SPACER
5332786
$7.99
28
SPACER
5332786
$7.99
29
LOCK WASHER(10)
7553201
$3.99
29
LOCK WASHER(10)
7553201
$3.99
30
BOLT(10)
7512659
$7.99
30
BOLT(10)
7512659
$7.99
31
BRACKET,BOGIE WHEEL
5130570
$48.56
31
BRACKET,BOGIE WHEEL
5130570
$48.56
32
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
33
REINF., BUMPER
5222629
$13.75
34
SCREW(10)
7512227
$3.19
35
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
36
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
37
RIVET(50)
7621435
$1.49
38
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
39
NUT-LOCK(10)
7542122
$1.49
40
BUMPER, RAIL
5810554
$7.27
41
SHAFT,R.SHOCK BRKT.
5020649
Unavailable
42
MT.,R.SHOCK,BLK.
1011904-067
$15.67
43
BOLT(10)
7515415
$1.49
43
BOLT(10)
7515415
$1.49
44
NUT-LOCK(10)
7542439
$1.49
44
NUT-LOCK(10)
7542439
$1.49
45
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
45
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
46
BEARING,CHAINCASE
3514305
$19.99
47
RET.RING-TRUARC
7718407
$4.79
48
TRACK,MOLDED,133
5410727
Unavailable
