STARTING MOTOR ASSEMBLY - 0940262 (4924972497d003)

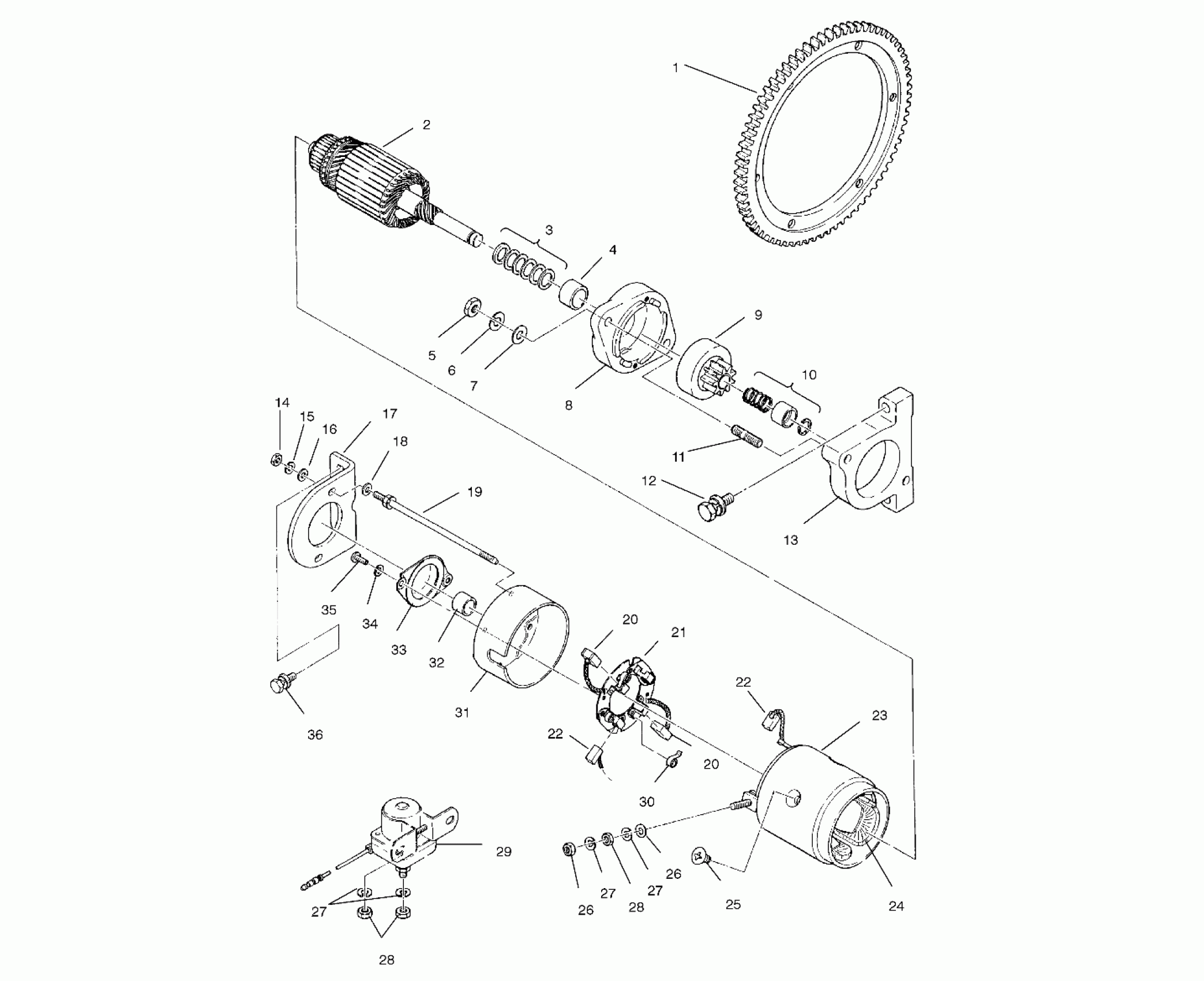

Polaris TRAIL - 0940761 STARTING MOTOR ASSEMBLY - 0940262 (4924972497d003) Diagram
#
1
GEAR, RING
3083075
Unavailable
2
ARMATURE ASM.
3084115
Unavailable
3
KIT-WASHER
3083191
Unavailable
4
BUSHING,METAL,FRONT
3083206
Unavailable
5
NUT
3081086
Unavailable
6
WASHER LOCK ,(10)
3080530
$3.19
7
WASHER(10)
3080142
$3.99
8
COVER ASM-FRONT. (Incl. 4)
3083205
Unavailable
9
PINION ASM
3083201
Unavailable
10
STOPPER SET,(PINION)
3084116
Unavailable
11
STUD
3083210
Unavailable
12
BOLT&WASHER
3083945
Unavailable
13
BRACKET (Incl. 11)
3083535
Unavailable
14
NUT(10)
3083042
Unavailable
15
WASHER SPRING(10)
3083133
Unavailable
16
WASHER Substituted by 3083774
3083134
Unavailable
17
BRACKET #1
3083213
$22.23
18
WASHER
3083357
$2.39
19
BOLT-THROUGH
3083203
Unavailable
20
BRUSH, (-) (-)
3083196
Unavailable
20
BRUSH, (-) (-)
3083196
Unavailable
21
HOLDER ASM,BRUSH (Incl.20, 30)
3083195
Unavailable
22
BRUSH, (+) (+)
3083194
Unavailable
22
BRUSH, (+) (+)
3083194
Unavailable
23
MOTOR-STARTER (Incl. 2-4,8-10,19-28,30-35)
3083189
Unavailable
24
COIL-FIELD (Incl. 22,25)
3083192
Unavailable
25
SCREW-POLE CORE SET
3083193
Unavailable
26
WASHER(10)
3080078
Unavailable
26
WASHER(10)
3080078
Unavailable
27
WASHER SPRING(10)
3080077
$2.39
27
WASHER SPRING(10)
3080077
$2.39
27
WASHER SPRING(10)
3080077
$2.39
28
NUT(10)
3082939
Unavailable
28
NUT(10)
3082939
Unavailable
29
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27,28)
3083211
Unavailable
30
SPRING-BRUSH
3083197
Unavailable
31
COVER ASM-REAR (Incl. 32)
3083198
Unavailable
32
COVER-REAR METAL
3083199
Unavailable
33
COVER-DUST
3083204
Unavailable
34
WASHER-SPRING(10)
3083208
Unavailable
35
SCREW
3083207
Unavailable
36
BOLT&WASHER(10)
3083946
Unavailable
