SEAT and GAS TANK ASSEMBLY - 0940761 (4924972497a008)

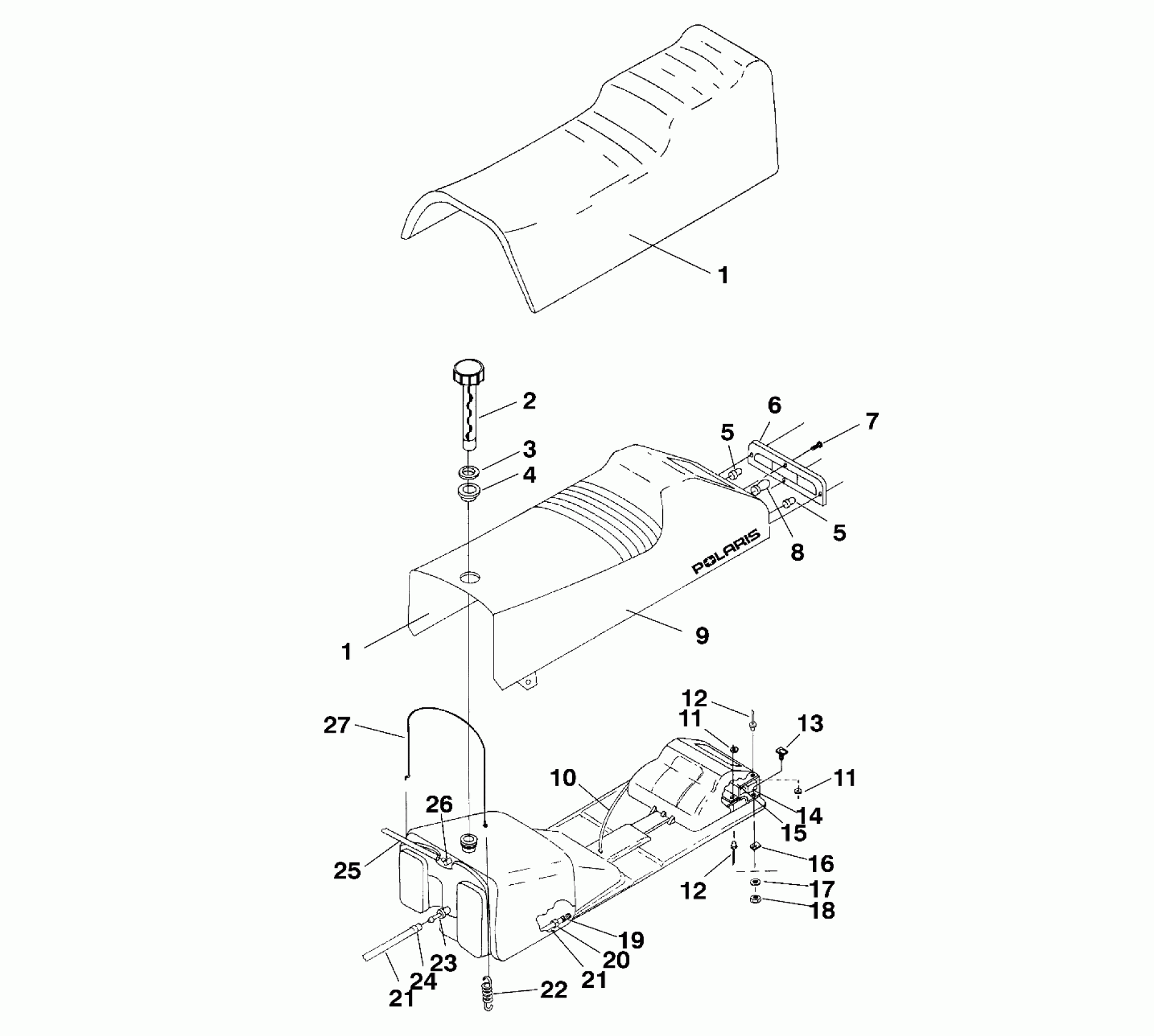

Polaris TRAIL - 0940761 SEAT and GAS TANK ASSEMBLY - 0940761 (4924972497a008) Diagram
#
Description
Price
1
SEAT/TANK ASM,(TRL.DLX.) (Incl. 2,27) (Deluxe)
2681668
$399.99
1
SEAT/TANK CUSH.(TRL.'94) (Trail) (Incl. 2,27)
2681672
$399.99
1
SEAT/TANK ASM,(TRL.DLX.) (Incl. 2,27) (Deluxe)
2681668
$399.99
1
SEAT/TANK CUSH.(TRL.'94) (Trail) (Incl. 2,27)
2681672
$399.99
2
CAP,FUEL W/GAUGE Substituted by 2511248
2511227
$44.51
3
GROMMET,FUELTANK
5410842
Unavailable
4
GROMMET,GAS TANK
5410745
Unavailable
5
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
Bulb, Brakelight
4030045
Unavailable
9
COVER,SEAT(2-UP,TRL.DLX.) (Del.)
2681669
Unavailable
9
COVER SEAT,(TRL,94) (Trail)
2681673
Unavailable
10
HARNESS,TAILLIGHT
2460398
Unavailable
11
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
11
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
12
RIVET, BLIND(50)
7621467
$1.49
12
RIVET, BLIND(50)
7621467
$1.49
13
MOUNT, REAR SEAT
1011855
Unavailable
14
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
15
COVER,T/L PROTECTOR
5431436
$21.43
16
SPEED NUT(10)
7670021
$6.99
17
WASHER(10)
7558221
$2.39
18
NUT-LOCK(10)
7542122
$1.49
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
RING, COMPRESSION(10)
7080402
$1.60
21
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
21
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
22
SPRING-EXHAUST(10)
7042029
$4.84
23
FITTING - OUTLET(10)
7052023
$24.99
24
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
25
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
26
FITTING,90 DEG,1/8,(10)
7052095
$4.79
27
CABLE,TANK RETENTION
7080473
Unavailable
