PISTON and CRANKSHAFT - 0940761 (4924972497c011)

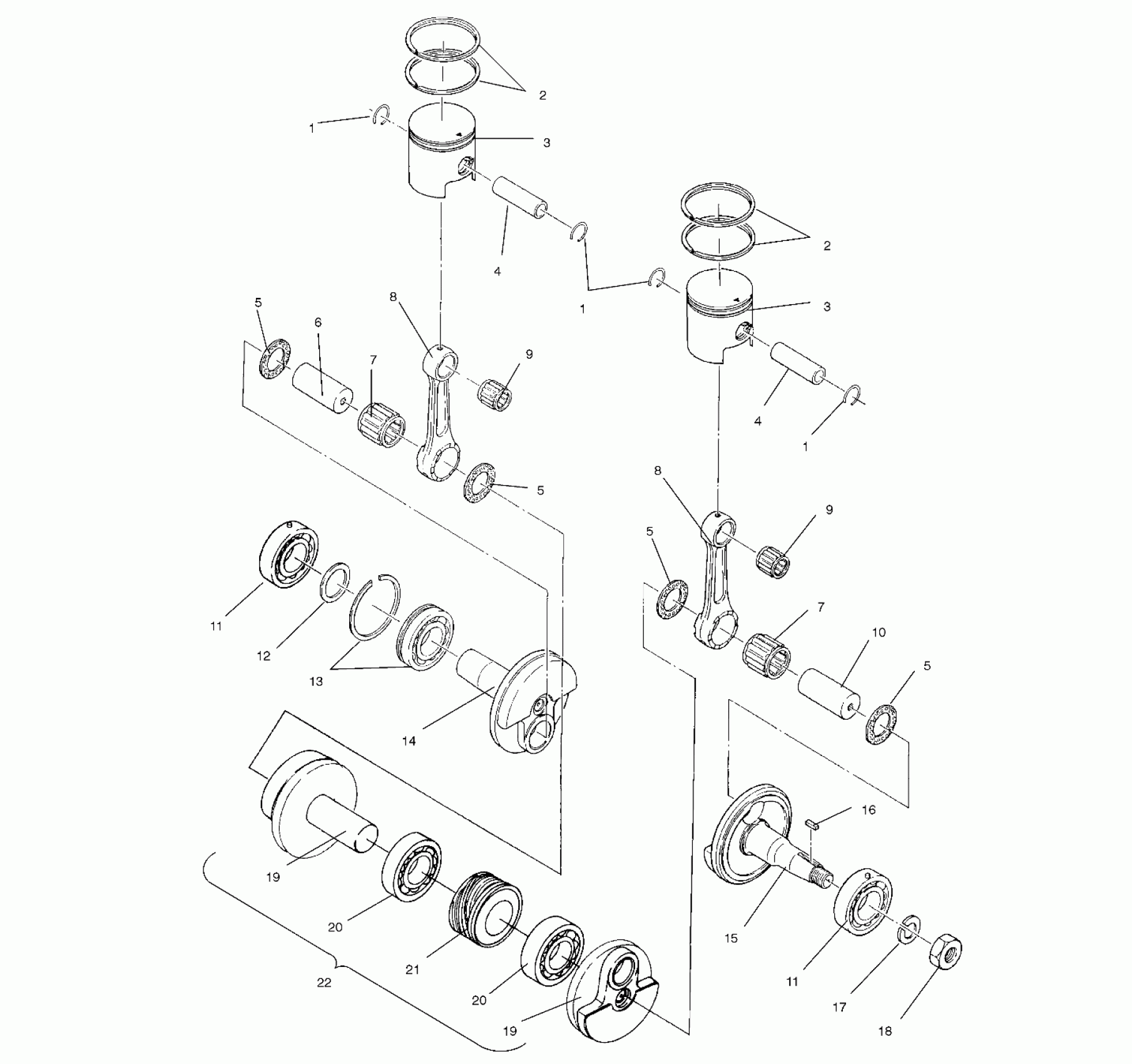

Polaris TRAIL - 0940761 PISTON and CRANKSHAFT - 0940761 (4924972497c011) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING, PISTON (Standard)
3083546
Unavailable
2
RING,.020 O/S (0.50mm/.020"O/S)
3083717
$28.56
2
RING,.010 O/S (0.25mm/.010"O/S)
3083678
Unavailable
2
RING, PISTON (Standard)
3083546
Unavailable
2
RING,.020 O/S (0.50mm/.020"O/S)
3083717
$28.56
2
RING,.010 O/S (0.25mm/.010"O/S)
3083678
Unavailable
3
PISTON ASM. (Standard)
3083841
Unavailable
3
PISTON ASM, (.020) (0.50m/.020"O/S)
3083842
Unavailable
3
PISTON,(.010 O/S) (0.25m/.010"O/S)
3084600
Unavailable
3
PISTON ASM. (Standard)
3083841
Unavailable
3
PISTON ASM, (.020) (0.50m/.020"O/S)
3083842
Unavailable
3
PISTON,(.010 O/S) (0.25m/.010"O/S)
3084600
Unavailable
4
Pin, Piston
3083838
$27.99
4
Pin, Piston
3083838
$27.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
Pin, Crank, 2
3083456
Unavailable
7
BEARING, LARGE END
3084274
$19.19
7
BEARING, LARGE END
3084274
$19.19
8
ROD-CONNECTING
3083252
$164.99
8
ROD-CONNECTING
3083252
$164.99
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
10
PIN,CRANK
3083233
$36.41
11
BEARING,BALL
3084601
$49.99
11
BEARING,BALL
3084601
$49.99
12
SPACER,CRANKSHAFT
3080447
$1.99
13
BEARING, BALL
3084587
Unavailable
14
CRANKSHAFT #3 Substituted by 3084357 (PTO End)
3083364
Unavailable
15
CRANKSHAFT #1 (Mag End)
3083362
Unavailable
16
KEY
3081447
Unavailable
17
WASHER-SPRING(10)
3083094
$3.17
18
NUT
3083093
$19.99
19
CRANKSHAFT, CTR. (Incl. 10,6)
3084370
Unavailable
19
CRANKSHAFT, CTR. (Incl. 10,6)
3084370
Unavailable
20
Bearing, Ball
3515501
$27.99
20
Bearing, Ball
3515501
$27.99
21
DRIVEGEAR,OILPUMP
3083780
$107.99
22
CRANKSHAFT ASM. Substituted by 3084585 (Incl. 5,8,7-15,19)
3084369
Unavailable
