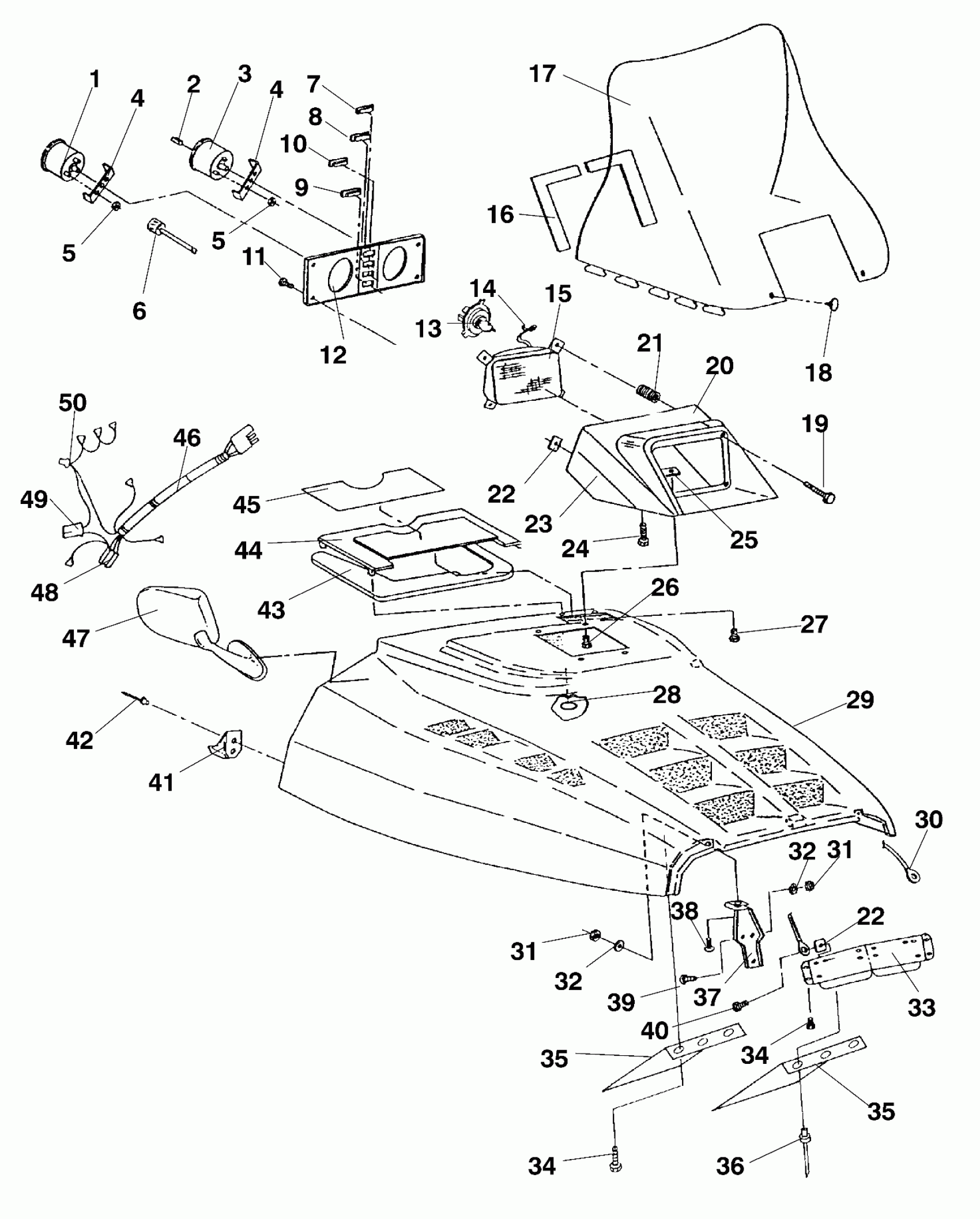

Polaris TRAIL - 0940761 HOOD ASSEMBLY - 0940761 (4924972497a011) Diagram
#
1
TACHOMETER (Incl.4,5) (Trail)
3280093
Unavailable
2
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
3
SPEEDOMETER (Incl. 4,5)
3280092
$111.99
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
PLUG,INDIC.HOLE
5430967
$5.65
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST. (Trail)
5430924
Unavailable
12
BEZEL, INSTRUMENT (Deluxe)
5431064
$16.67
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD, W/S, LH
5810414
Unavailable
16
PAD, W/S
5810415
Unavailable
17
WINDSHIELD,HI,TEAL,INDY Substituted by 5431118 (Deluxe)
5431327
Unavailable
17
WINDSHIELD,LT.TEAL(INDY) (Trail)
5431458
Unavailable
18
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
19
SCREW, ADJ.(10)
4032003
Unavailable
20
HSG.,INST.,SLATE
5430923-174
Unavailable
21
SPRING-ADJ
4032002
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
23
HSG.,INST.BOTT,SLATE
5430922-174
Unavailable
24
SCREW(10)
7512009
Unavailable
25
NUT, SPEED(10)
7670057
$1.49
26
SCREW, SEMS(10)
7512283
$3.99
27
SCREW(10)
7511840
Unavailable
28
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
29
HOOD, TEAL Substituted by 2631573-168 (See Footnote) (Incl. Foam, Foil & Warning Decals )
5431193-168
Unavailable
29
HOOD ASM,TEAL,(TRL.) (See Footnote) (Incl. Foam, Foil & Warning Decals)
2631573-168
$750.99
30
CABLE,HD.RETAINER
7080360
$24.27
31
NUT-LOCK(10)
7542122
$1.49
31
NUT-LOCK(10)
7542122
$1.49
32
WASHER,WROUGHT(10)
7558302
$1.59
32
WASHER,WROUGHT(10)
7558302
$1.59
33
PLATE,RE-INF.,(HD.)
5222105
$49.51
34
SCREW(10)
7511861
Unavailable
34
SCREW(10)
7511861
Unavailable
35
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
35
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
36
POP RIVET(50)
7621425
$1.49
37
HINGE ASM,HD,BLK
2635005-067
$16.67
38
BOLT(10)
7512193
$2.39
39
BOLT-CARRIAGE(10)
7512263
$3.99
40
SCREW(10)
7511989
Unavailable
41
CUP, HOOD LATCH,(10)
5430733
$4.84
42
RIVET(50)
7621334
$1.49
43
SEAL, INTAKE
5810597
Unavailable
44
COVER, INLET,TEAL Substituted by 5431195-169
5431195-168
Unavailable
45
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
46
HARNESS, HEADLIGHT
2460383
Unavailable
47
PR,MIRRORS,R.VIEW (Deluxe)
2870938
Unavailable
48
HOUSING
4020052
Unavailable
49
Housing
4020115
$1.59
50
HOUSING
4020114
Unavailable
