Description

Price

1

MUFFLER

1260506-029

Unavailable

2

NUT-LOCK(10)

7542122

$1.49

2

NUT-LOCK(10)

7542122

$1.49

3

WASHER(10)

7558221

$2.39

4

WASHER,RUBBER

5410436

$1.59

5

SPRING, EXHAUST(10)

7042031

$5.65

5

SPRING, EXHAUST(10)

7042031

$5.65

6

DAMPNER, VIB.

5410467

$8.79

7

WASHER, THRUST(10)

7555788

Unavailable

8

SUPPORT,MUFFLER,BLK. Substituted by 5242798-067

1011831-067

Unavailable

9

NUT(10)

3080285

Unavailable

10

WASHER LOCK ,(10)

3080530

$3.19

11

BUSHING-RES. MT.

5010192

$6.39

12

DAMPENER

5410241

Unavailable

13

GASKET, EXHAUST

3083770

Unavailable

14

MANIFOLD

1260505-029

Unavailable

15

Boot, Exhaust

5410502

$24.27

16

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

17

HAT, EXHAUST

5431005

Unavailable

18

POP RIVET(50)

7621418

$1.49

19

SUPPORT,R.MUFFLER,BLK.

5220695-067

Unavailable

20

BOLT-CARRIAGE(10)

7512275

$3.99

21

BOLT(10)

7512193

$2.39

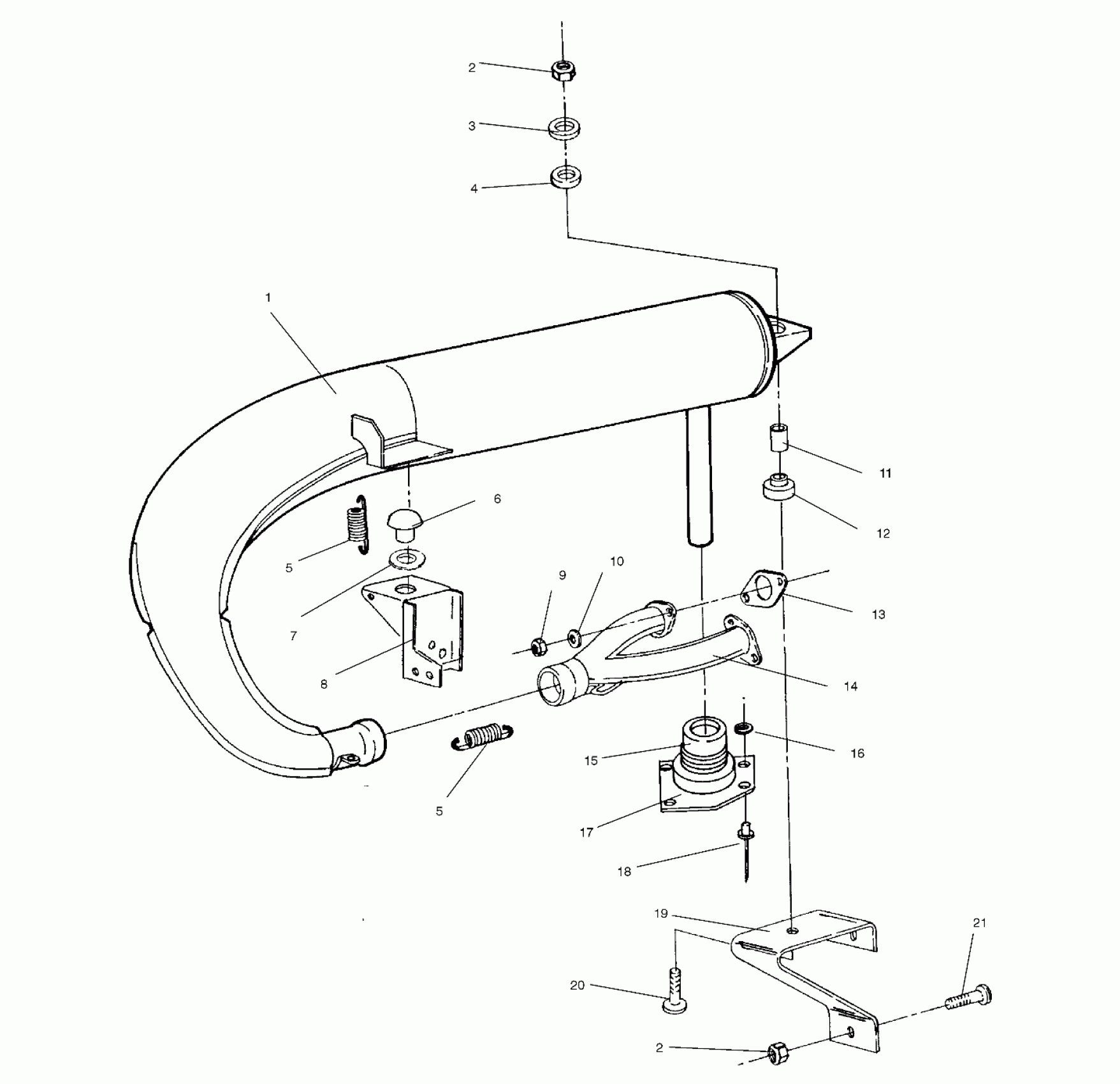

Polaris TRAIL - 0940761 EXHAUST SYSTEM - 0940761 (4924972497c006) Diagram

MUFFLER

NUT-LOCK(10)

NUT-LOCK(10)

WASHER(10)

WASHER,RUBBER

SPRING, EXHAUST(10)

SPRING, EXHAUST(10)

DAMPNER, VIB.

WASHER, THRUST(10)

SUPPORT,MUFFLER,BLK. Substituted by 5242798-067

NUT(10)

WASHER LOCK ,(10)

BUSHING-RES. MT.

DAMPENER

GASKET, EXHAUST

MANIFOLD

Boot, Exhaust

WASHER,13/64X1/2X18GA,FL-Y

HAT, EXHAUST

POP RIVET(50)

SUPPORT,R.MUFFLER,BLK.

BOLT-CARRIAGE(10)

BOLT(10)
