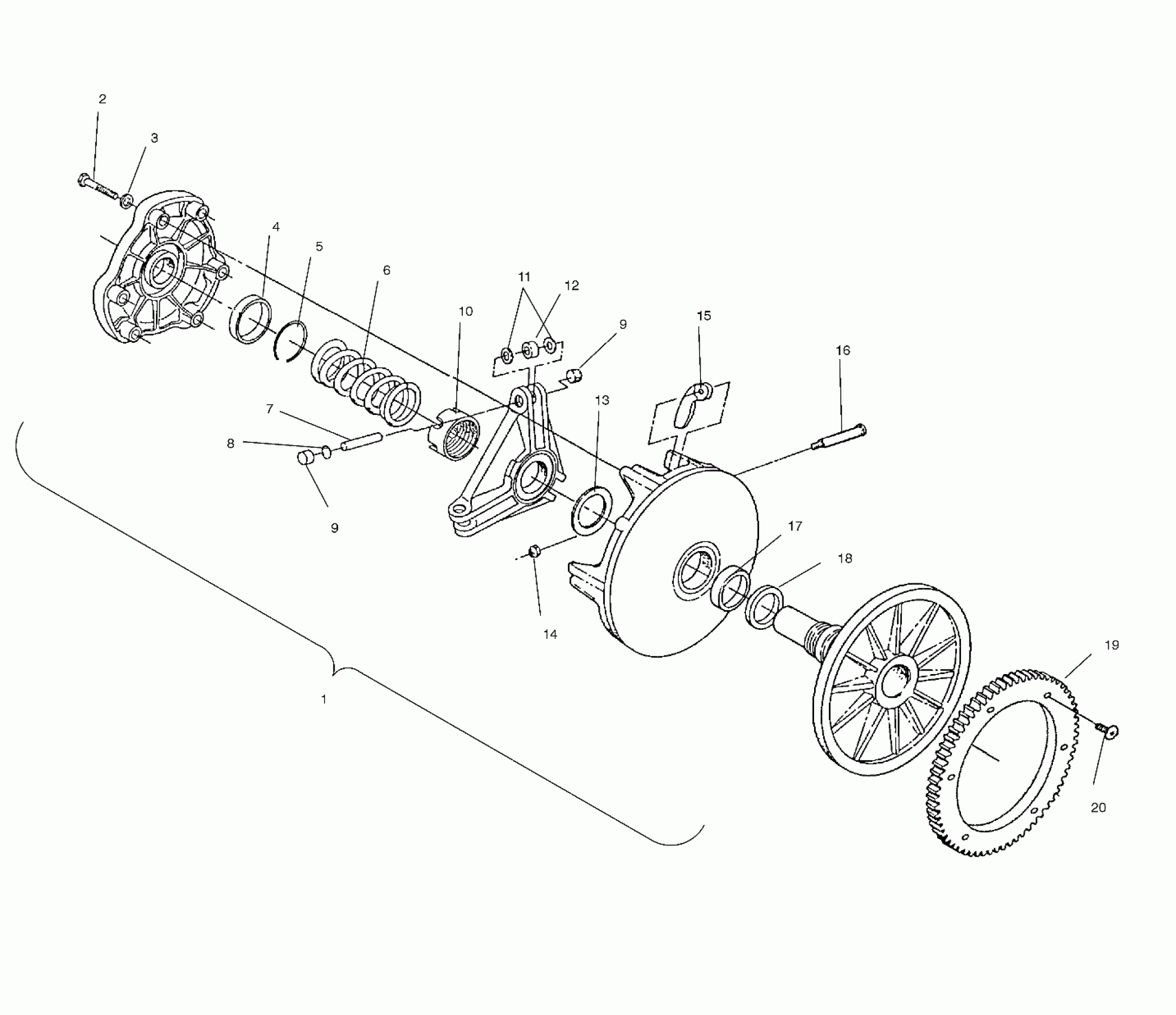

Polaris TRAIL - 0940761 DRIVE CLUTCH - 0940761 (4924972497c003) Diagram
#
Description
Price
1
CLUTCH,BASIC,#43(DRIVE) Substituted by 1321669 (Less 6,15)(Deluxe)
1321597
Unavailable
1
CLUTCH,BASIC,#46(DRIVE) Substituted by 1321647 (Less 6,15)(Trail)
1321611
Unavailable
2
BOLT,(10)
7512265
$3.99
3
LOCK WASHER(10)
7552801
$1.59
4
BEARING, COVER,(10)
3576510
$9.59
5
RING-RETAINING,COVER
7710417
$1.49
6
SPRING-RED&WHITE (Red/White)
7041150
$64.99
7
PIN-ROLLER
5020422
$2.39
8
Kit - Shim, Drive Clutch
2200387
$24.27
9
BUTTON, GUIDE,(10)
5430445
$6.39
9
BUTTON, GUIDE,(10)
5430445
$6.39
10
NUT-JAM
5020425
$23.99
11
WASHER,MULTILUBE
5430945
$1.59
12
ASM-ROLLER AND BUSHING
1321457
$40.46
13
SPACER(10)
5210754
Unavailable
13
SPACER(10)
5210752
Unavailable
13
SPACER(10)
5210753
Unavailable
14
NUT FLEX LOC(10)
7541906
$3.19
15
WT/BUSH.ASM,10M(3) (Bushed)(Deluxe)
1321528
$40.46
15
WT/BUSH.ASM,10(3) (10)(Trail)
1321526
$40.46
16
PIN-WEIGHT,HARDENED,1/4X2.00
7515105
$13.75
17
SLEEVE, BEARING
3576502
$23.99
18
INSERT-MOVEABLE
5010188
$7.99
19
GEAR, RING (Deluxe Only)
3083075
Unavailable
20
BOLT,RING GEAR(10) (Deluxe Only)
7515351
$3.99
