CHAINCASE ASSEMBLY - 0940761 (4924972497b009)

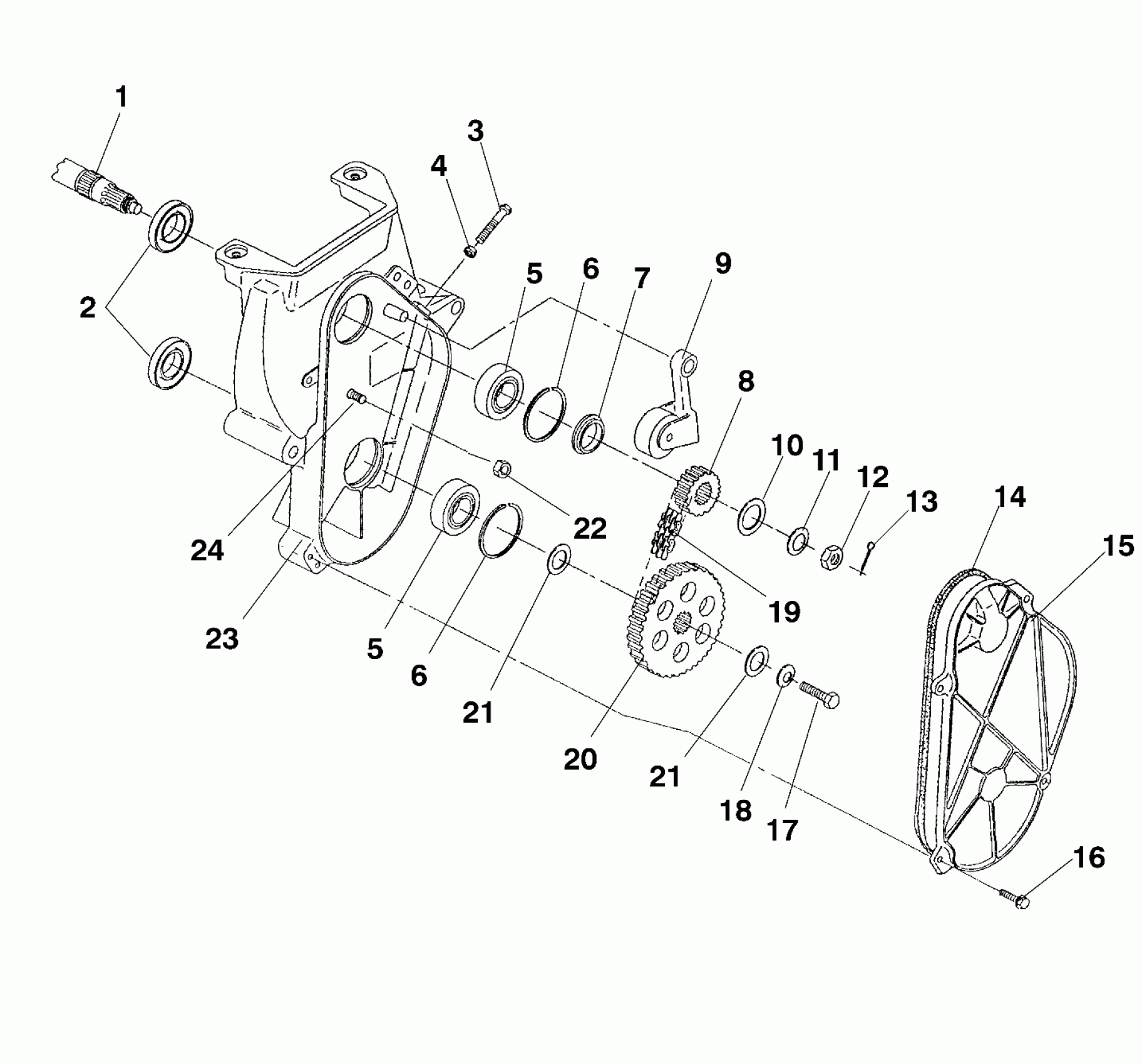

Polaris TRAIL - 0940761 CHAINCASE ASSEMBLY - 0940761 (4924972497b009) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. B8, Ref. 15)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,CHAINCASE
3514306
Unavailable
5
BEARING,CHAINCASE
3514306
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER, SPROCKET
5010270
Unavailable
8
SPROCKET 21 T
3221035
Unavailable
9
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
10
BUSHING(10)
7555863
$2.39
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
16
SCREW(10)
7512242
$2.39
17
SCREW(10)
7515350
$3.97
18
WASHER(10)
7571618
$6.39
19
CHAIN 66 PITCH
3224024
Unavailable
20
SPROCKET 39 T
3222034
Unavailable
21
BUSHING(10)
7555864
$2.39
21
BUSHING(10)
7555864
$2.39
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
23
CHAINCASE,TOP MNT.BRAKE
5130849
Unavailable
24
BOLT(10)
7515477
$34.99
