CHAINCASE ASSEMBLY - 0940262 (4924972497b010)

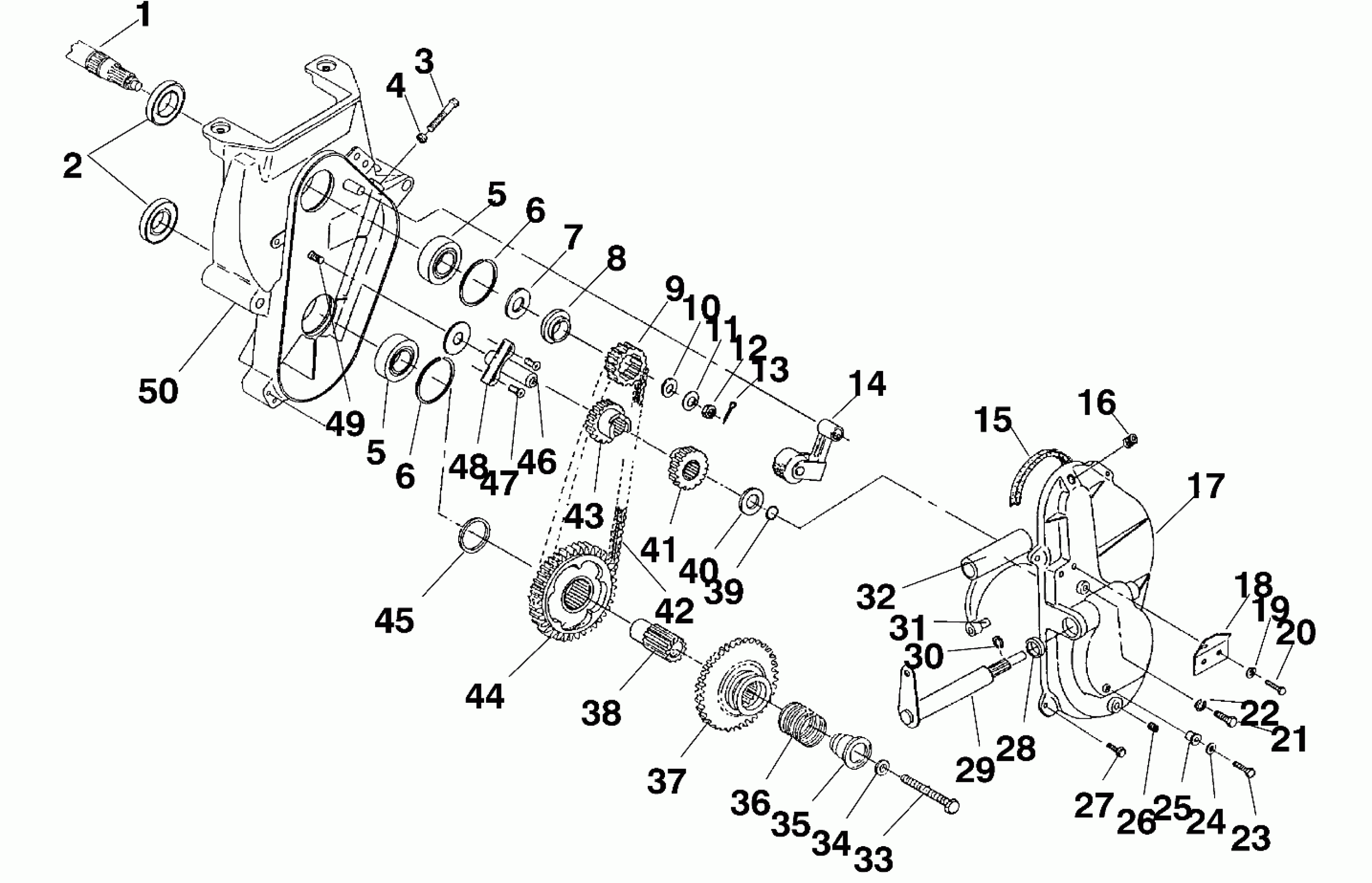

Polaris TRAIL - 0940761 CHAINCASE ASSEMBLY - 0940262 (4924972497b010) Diagram
#
1
Asm., Jackshaft (See Pg. B8, Ref. 15)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,205,W/O SEAL
3514304
$15.99
5
BEARING,205,W/O SEAL
3514304
$15.99
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER,THRUST(10)
7555876
Unavailable
8
SPACER, SPROCKET
5010270
Unavailable
9
SPROCKET,22T,11
3222059
Unavailable
10
BUSHING(10)
7555863
$2.39
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
15
GASKET-CHAINCASE
5410277
$24.99
16
PLUG(10)
7051520
$8.79
17
COVER,CHAINCASE Substituted by 5131114
5130813
Unavailable
18
BRKT,CABLE MOUNT
5222502-067
Unavailable
19
LOCK WASHER(10)
7552801
$1.59
20
SCREW(10)
7512252
Unavailable
21
SCREW(10)
7512497
Unavailable
22
WASHER WROUGHT(10)
7558403
$4.79
23
SCREW(10)
7511909
$3.99
24
WASHER, FLAT(10)
7558201
$5.79
25
NUT-WELL(10)
7541918
Unavailable
26
PLUG, DRAIN
7052053
Unavailable
27
SCREW(10)
7512225
$3.99
28
Seal, Oil
3610029
$8.89
29
SHAFT, SHIFT
1341093-067
$29.37
30
RING, RETAINER(10)
7710415
$3.99
31
PIN, SHIFT FORK(10)
7661826
$5.65
32
KIT,SHIFT FORK/SHAFT (Incl. 29,31)
2200363
Unavailable
33
SCREW, NYLOK(10)
7515348
$4.79
34
LOCK WASHER(10)
7552901
$1.49
35
RETAINER,DRIVE COUPLER
5130727
Unavailable
36
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
37
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
38
Coupler, Drive
5130720
Unavailable
39
O RING
5410589
$4.99
40
WASHER,THRUST(10)
7555877
$3.99
41
GEAR,SPUR PINION
1341075
$149.99
42
CHAIN 68 PITCH
3224025
Unavailable
43
GEAR ASM, PINION
1341076
Unavailable
44
Bearing, Needle
3555104
Unavailable
44
KIT,REV.GEAR'G'(93STARLITE+) (Incl. Bearing)
1341112
$123.99
45
WASHER, REVERSE(10)
7555871
$5.59
46
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
47
SCREW(10)
7512019
$3.99
48
BRKT,CHAIN RETENTION
5222298
Unavailable
49
BOLT(10)
7515477
$34.99
50
CHAINCASE,TOP MNT.BRAKE
5130849
Unavailable
