TUNNEL ASSEMBLY TRAIL DELUXE / 0930243 (4923222322001A)

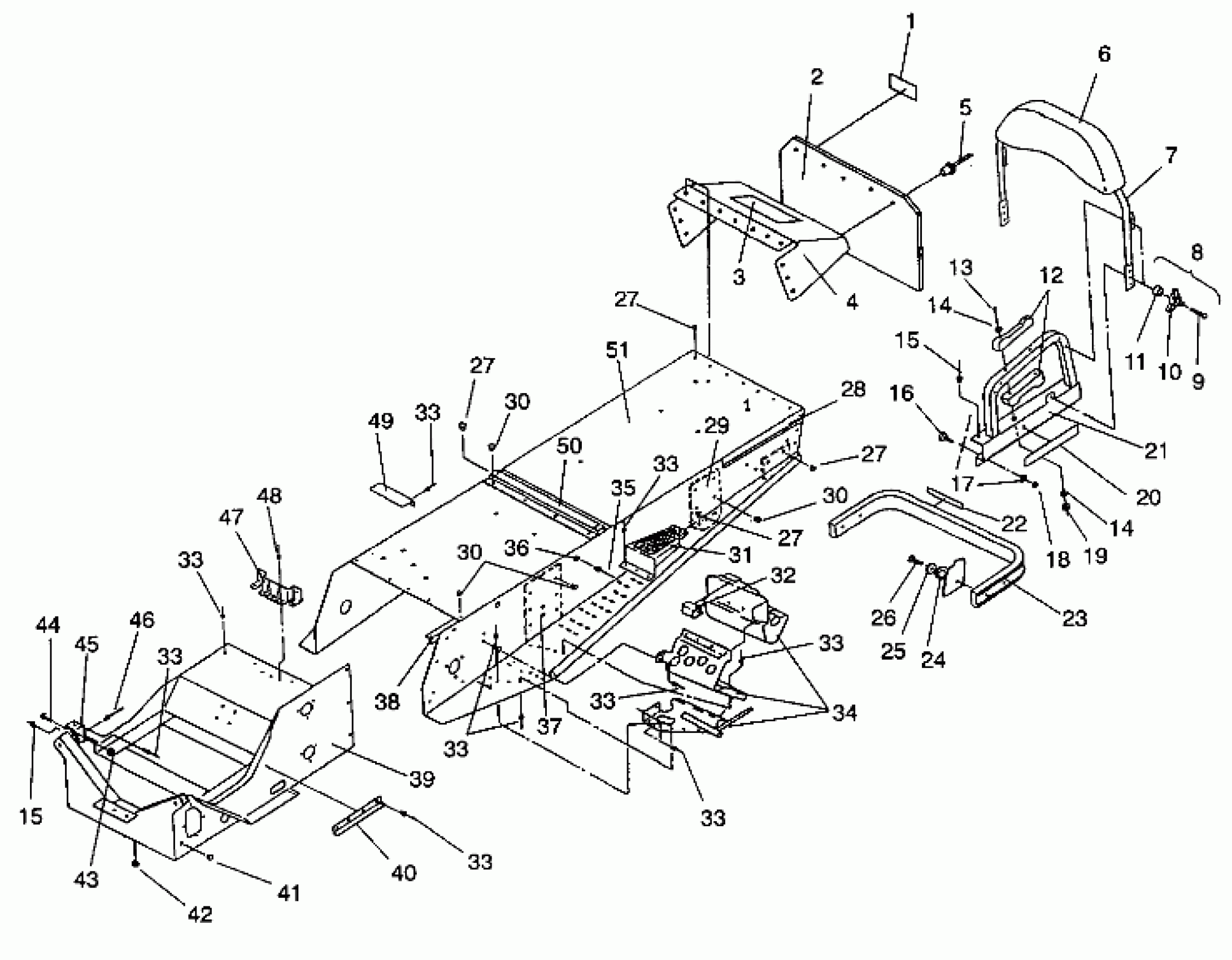

Polaris TRAIL - 0930761 TUNNEL ASSEMBLY TRAIL DELUXE / 0930243 (4923222322001A) Diagram
#
1
DECAL,TRACK SEAT(BLK.) [No Longer Available] (Black)
7073038
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106 (Silver)
5410394
$121.02
3
DECAL,CLOSEOFF,'TRL.DELUXE' [No Longer Available]
7073581
Unavailable
4
PANEL,R.CLOSE-OFF ASM.
1011799
$32.95
5
POP RIVET(50)
7621418
$1.49
6
COVER,B'REST(93TRLDLX)
2681630
$216.17
7
BACKREST ASM,COOL/SLATE
2681629
Unavailable
8
KNOB ASM,BACKREST
2670130
Unavailable
9
SCREW(10)
7515352
Unavailable
10
Knob, Backrest
5630386-067
$20.22
11
SPACER
5431285
Unavailable
12
GRIP, HAND Substituted by 5433383
5431015
$19.68
13
SCREW(10)
7510504
$6.76
14
WASHER(10)
7555783
$3.99
14
WASHER(10)
7555783
$3.99
15
RIVET Substituted by 7661638
7661625
$1.19
15
RIVET Substituted by 7661638
7661625
$1.19
16
BOLT(10) Substituted by 7512325
7515363
Unavailable
17
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
18
NUT, NYLOK(10)
7542327
$4.79
19
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
20
REFLECTOR RED
2670070
$9.91
21
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
21
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
22
DECAL.R.BUMPER [No Longer Available]
7073576
Unavailable
23
BUMPER, REAR Substituted by 2670122
5224420
Unavailable
24
WASHER(10)
7558301
$1.49
25
LOCK WASHER(10)
7552801
$1.59
26
BOLT(10)
7512240
$3.99
27
RIVET Substituted by 7661829
7661828
Unavailable
27
RIVET Substituted by 7661829
7661828
Unavailable
27
RIVET Substituted by 7661829
7661828
Unavailable
27
RIVET Substituted by 7661829
7661828
Unavailable
28
DECAL,RH.TUNNEL(TRAIL) [No Longer Available]
7073578
Unavailable
28
DECAL,LH.TUNNEL [No Longer Available]
7073577
Unavailable
29
BRKT,RH.REAR SUSP.
1011906-067
Unavailable
29
BRKT,LH.REAR SUSP
1011905-067
Unavailable
30
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
30
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
30
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
31
FOOTREST,LH REAR
5220893
Unavailable
31
FOOTREST,RH REAR
5220894
$32.15
31
PAD,LH FOOT SAFETY
5830007
$7.89
31
PAD,RH FOOT SAFETY
5830008
$4.92
32
EXTRUSION,CLUTCHGUARD
5521238
$6.46
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
34
FOOTREST ASM,LH
1011890
Unavailable
34
FOOTREST ASM, RH
1011891
$164.79
35
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
36
SNAP-MALE(10)
7080227
Unavailable
37
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
38
BRACE,TUNNEL REINF.
5222412
Unavailable
39
BULKHEAD
1011874
Unavailable
40
GUARD
5223789
Unavailable
41
PLUG, HOLE(10)
7080416
$5.65
42
PLUG-HOLE
7080398
$4.84
43
NUT LOCK(10)
7542321
$1.49
44
SCREW(10)
7512307
$3.99
45
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
46
RIVET(50)
7621452
$1.49
47
BRKT,GASTANK,WELD.
1011733-067
$19.73
48
RIVET(50)
7621301
$3.99
49
BRKT, TOOL BOX
5220973
Unavailable
50
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
51
TUNNEL ASM,(93 DLX.) (Incl. 4, 29, 37, 38 & 50)
1011888
Unavailable
51
TUNNEL ASM,(93 DLX.) (Incl. 4, 29, 37, 38 & 50 )
1011888
Unavailable
