TUNNEL ASSEMBLY TRAIL/0930761 (4923222322003A)

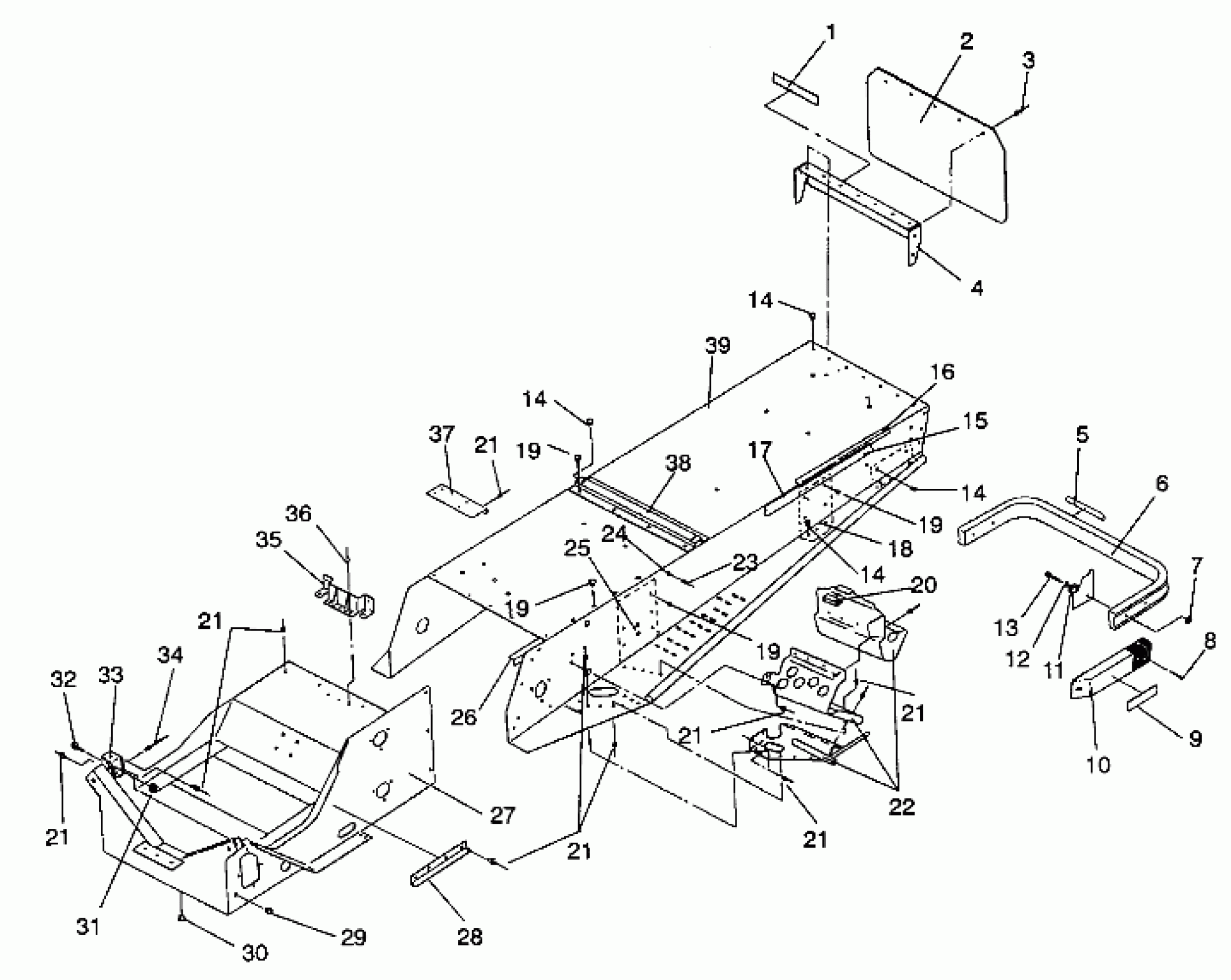

Polaris TRAIL - 0930761 TUNNEL ASSEMBLY TRAIL/0930761 (4923222322003A) Diagram
#
1
DECAL,TRACK SEAT(BLK.) [No Longer Available] (Black)
7073038
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
5
DECAL.R.BUMPER [No Longer Available]
7073576
Unavailable
6
BUMPER,REAR,BLK.
5224334-067
Unavailable
7
NUT-LOCK(10)
7542122
$1.49
8
SCREW(10)
7511863
$1.99
9
REFLECTOR RED
2670070
$9.91
10
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
11
WASHER(10)
7558301
$1.49
12
LOCK WASHER(10)
7552801
$1.59
13
BOLT(10)
7512240
$3.99
14
RIVET Substituted by 7661829
7661828
Unavailable
14
RIVET Substituted by 7661829
7661828
Unavailable
14
RIVET Substituted by 7661829
7661828
Unavailable
14
RIVET Substituted by 7661829
7661828
Unavailable
15
DECAL,R.TUNNELSTRIPE
7073775
Unavailable
16
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
17
DECAL,RH.TUNNEL(TRAIL) [No Longer Available]
7073578
Unavailable
17
DECAL,LH.TUNNEL [No Longer Available]
7073577
Unavailable
18
BRKT,RH,R.SUSP.
1011858-067
Unavailable
18
BRKT,LH,R.SUSP
1011857-067
Unavailable
19
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
19
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
19
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
19
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
20
EXTRUSION,CLUTCHGUARD
5521238
$6.46
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
22
FOOTREST ASM,LH
1011890
Unavailable
22
FOOTREST ASM, RH
1011891
$164.79
23
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
24
SNAP-MALE(10)
7080227
Unavailable
25
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
26
BRACE,TUNNEL REINF.
5222412
Unavailable
27
BULKHEAD,(TRAIL)
1011894
Unavailable
28
GUARD
5223789
Unavailable
29
PLUG, HOLE(10)
7080416
$5.65
30
PLUG-HOLE
7080398
$4.84
31
NUT LOCK(10)
7542321
$1.49
32
SCREW(10)
7512307
$3.99
33
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
34
RIVET(50)
7621452
$1.49
35
BRKT,GASTANK,WELD.
1011733-067
$19.73
36
RIVET(50)
7621301
$3.99
37
BRKT, TOOL BOX
5220973
Unavailable
38
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
39
TUNNEL, (93 TRAIL) (Incl. 4, 29, 37, 38 & 50)
1011896
Unavailable
39
TUNNEL, (93 TRAIL) (Incl. 4, 29, 37, 38 & 50 )
1011896
Unavailable
