SEAT and GAS TANK ASSEMBLY TRAIL / 0930761 and TRAIL DELUXE / 0930243 (4923222322004A)

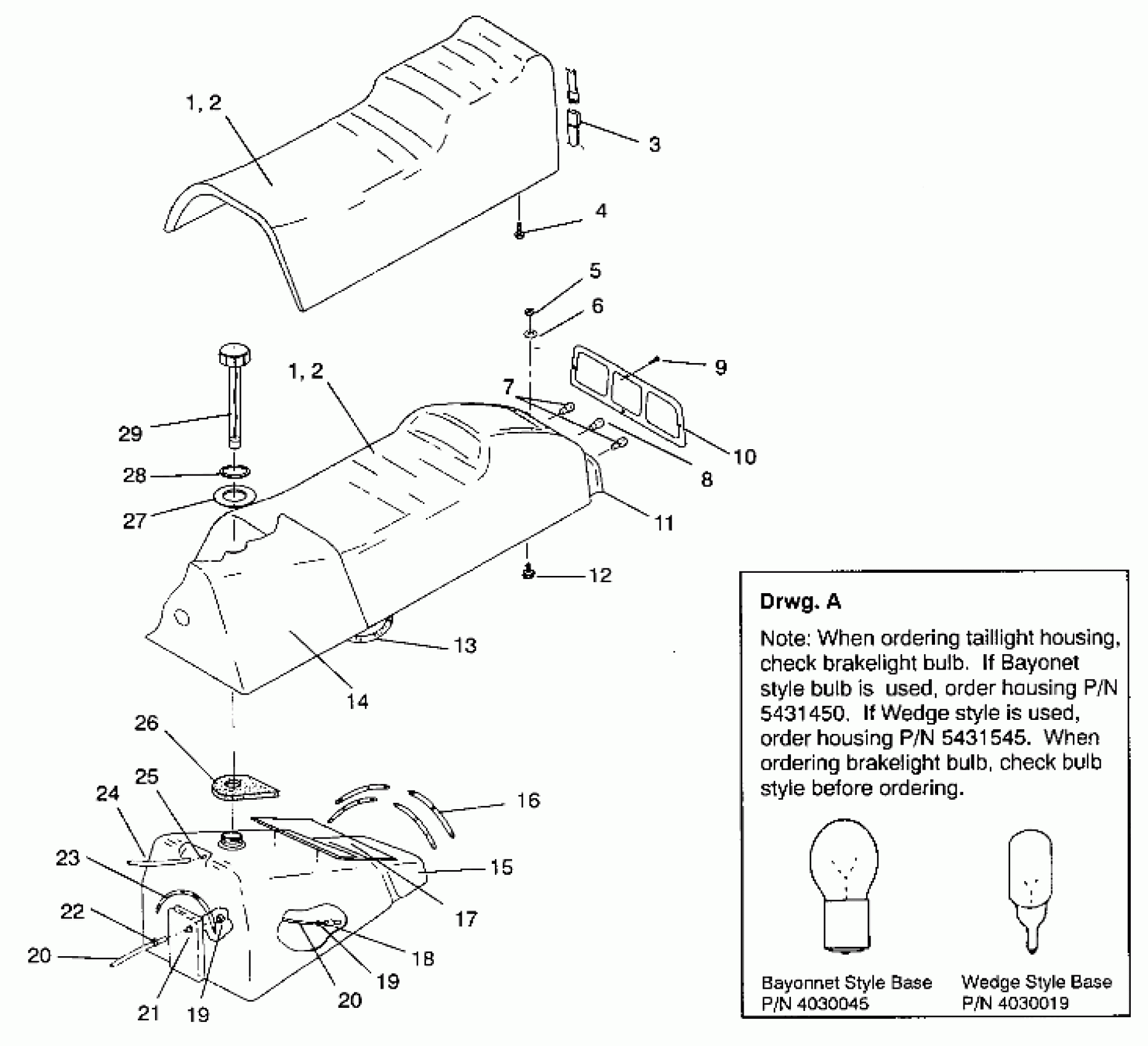

Polaris TRAIL - 0930761 SEAT and GAS TANK ASSEMBLY TRAIL / 0930761 and TRAIL DELUXE / 0930243 (4923222322004A) Diagram
#
1
SEAT ASM(93TRL.DLX) (Incl. 2, 7-11) (Deluxe)
2681623
Unavailable
1
SEAT CUSHION ASM. (Incl. 2, 7-11) (Trail)
2681626
Unavailable
1
SEAT ASM(93TRL.DLX) (Incl. 2, 7-11) (Deluxe)
2681623
Unavailable
1
SEAT CUSHION ASM. (Incl. 2, 7-11) (Trail)
2681626
Unavailable
2
COVER,SEAT(93TRLDLX) (Dlx)
2681624
Unavailable
2
COVER,SEAT ASM. (Trail)
2681627
Unavailable
2
COVER,SEAT(93TRLDLX) (Dlx)
2681624
Unavailable
2
COVER,SEAT ASM. (Trail)
2681627
Unavailable
3
BUCKLE&STRAP
2681291
Unavailable
4
SCREW(10) (Deluxe)
7512163
$3.99
5
NUT-LOCK(10)
7542122
$1.49
6
WASHER(10)
7558221
$2.39
7
BULB,TAILLIGHT(10)
4030024
$4.84
8
Bulb, Brakelight
4030045
Unavailable
9
SCREW(10)
7511840
Unavailable
10
LENS,TAILLIGHT
5430423
Unavailable
11
HOUSING,TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Unavailable
11
HOUSING, TAILLIGHT (See Drwg. A)
5431450
$19.83
12
BOLT(10) (Trail)
7512103
$3.19
13
HARNESS,TAILLIGHT
2460370
$31.35
14
COVER,TANK(93TRLDLX) (Deluxe)
2681625
$104.71
14
COVER,TANK ASM. (Trail)
2681628
Unavailable
15
TANK ASM,FUEL
2511199
Unavailable
16
SPRING, TANK
7042033
Unavailable
17
INSERT,TANKCOVER
5850098
Unavailable
18
FUELPICKUP,W/STRAINER
7052037
$12.94
19
RING, COMPRESSION(10)
7080402
$1.60
19
RING, COMPRESSION(10)
7080402
$1.60
20
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
20
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
21
FITTING - OUTLET(10)
7052023
$24.99
22
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
SPRING,TANK,(10)
7042020
$13.75
24
KIT-TANK VENT
2200190
Unavailable
25
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
26
FOAM, FILLER
5810201
Unavailable
27
GROMMET
5410644
Unavailable
28
GASKET, GAS CAP
5810513
$8.89
29
GAUGE, GAS
2511198
Unavailable
