NOSEPAN TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322005A)

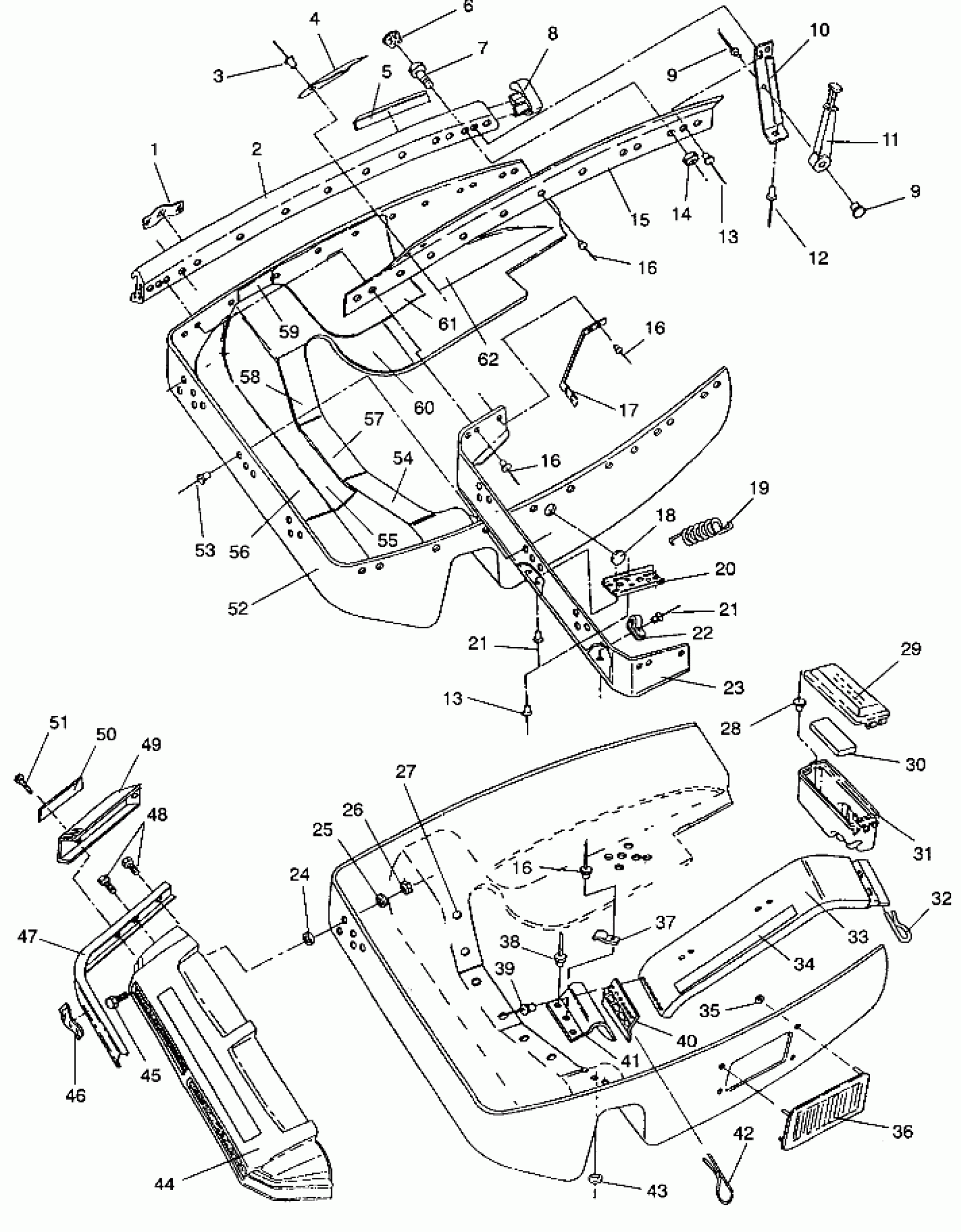

Polaris TRAIL - 0930761 NOSEPAN TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322005A) Diagram
#
1
DECAL,SIDE EXT.(TRAIL) [No Longer Available]
7073574
Unavailable
2
BUMPER,LH EXT. Substituted by 2670151-067 (Incl. 8)
2670114
Unavailable
2
BUMPER,RH EXT. Substituted by 2670152-067 (Incl. 8)
2670115
Unavailable
3
RIVET(50)
7621318
$1.49
4
GUIDE, HOOD
5220984
Unavailable
5
REFLECTOR AMBER
2670071
Unavailable
6
PLUG, HOLE(10)
7080416
$5.65
7
BOLT(10)
7512296
Unavailable
8
CAP,BUMPER,LH
5431083
Unavailable
8
CAP,BUMPER,RH
5431084
$1.67
9
RIVET,(50)
7621601
Unavailable
9
RIVET,(50)
7621601
Unavailable
10
BRACE,PAN,RH
5220523-067
$94.99
10
BRACE,PAN,LH
5220522-067
$94.99
11
STRAP, HOOD LATCH
5410370
$24.27
12
RIVET,3/16X.402(50)
7621432
$1.49
13
RIVET(50)
7621452
$1.49
13
RIVET(50)
7621452
$1.49
14
NUT, LOCK(10)
7542103
$5.59
15
GUIDE-HOOD LH
5510133
$19.83
15
GUIDE,HOOD RH
5510134
$20.63
16
POP RIVET(50)
7621402
$1.49
16
POP RIVET(50)
7621402
$1.49
16
POP RIVET(50)
7621402
$1.49
16
POP RIVET(50)
7621402
$1.49
17
BRACE,PAN, CORNER
5222254
$9.91
18
PLUG
5410344
$5.65
19
SPRING,HOOD CABLE
7041202
Unavailable
20
BRACE, PAN
5223996
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
22
CLAMP, RETAINER(10)
7080372
$3.99
23
BRACE, HINGE
5220951
$56.99
24
CAP, TOWER
5020517
$16.49
25
WASHER(10)
7558301
$1.49
26
NUT-LOCK(10)
7542122
$1.49
27
RIVET, BLIND(50)
7621467
$1.49
28
RIVET(50)
7621332
$1.49
29
COVER,TOOL BOX
5430719
$28.32
30
FOAM - TOOL BOX
5810266
Unavailable
31
BOX-TOOL
5430716
$11.99
32
PIN,RETAINING,(10)
7080216
$9.70
33
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
34
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
35
PALNUT(10)
7670009
$2.39
36
GRILL,SL.GRAY,LOUVERED
5430958-174
Unavailable
37
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
38
RIVET(50)
7621435
$1.49
39
RIVET, POP(50)
7621330
$1.49
40
HINGE
5211047
$3.49
41
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
42
PIN, FRONT
7080311
Unavailable
43
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
44
NOSECONE, TEAL
5430931-1032
Unavailable
45
SCREW(10)
7512279
$1.49
46
DECAL,FR.BUMPER [No Longer Available]
7073575
Unavailable
47
BUMPER, FRONT Substituted by 5224517-067
5224333-067
$154.99
48
SCREW(10)
7512102
$3.19
49
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
50
EMBLEM'POLARIS'SILVER
5430979-092
Unavailable
51
SCREW(10)
7511863
$1.99
52
NOSEPAN,SL.GRAY,VAC.FORM F/C (Trail)
5410729-174
Unavailable
52
NOSEPAN, (SPORT) (Deluxe)
5410710
Unavailable
53
BLIND RIVET(50)
7621403
$1.49
54
TAPE,FOIL,PAN#4
5810494
Unavailable
55
TAPE,FOIL,PAN#2 (Deluxe)
5810492
Unavailable
56
TAPE,FOIL,PAN#1 (Deluxe)
5810491
Unavailable
57
TAPE,FOIL,PAN#5
5810495
$5.65
58
TAPE,FOIL,PAN#3
5810493
Unavailable
59
TAPE,FOIL,PAN#8 (Deluxe)
5810498
$1.49
60
TAPE,FOIL,PAN#6 Substituted by 5811723
5810496
Unavailable
61
TAPE,FOIL,PAN#7
5810497
Unavailable
62
FOIL TAPE (Trail)
5810128
$7.27
