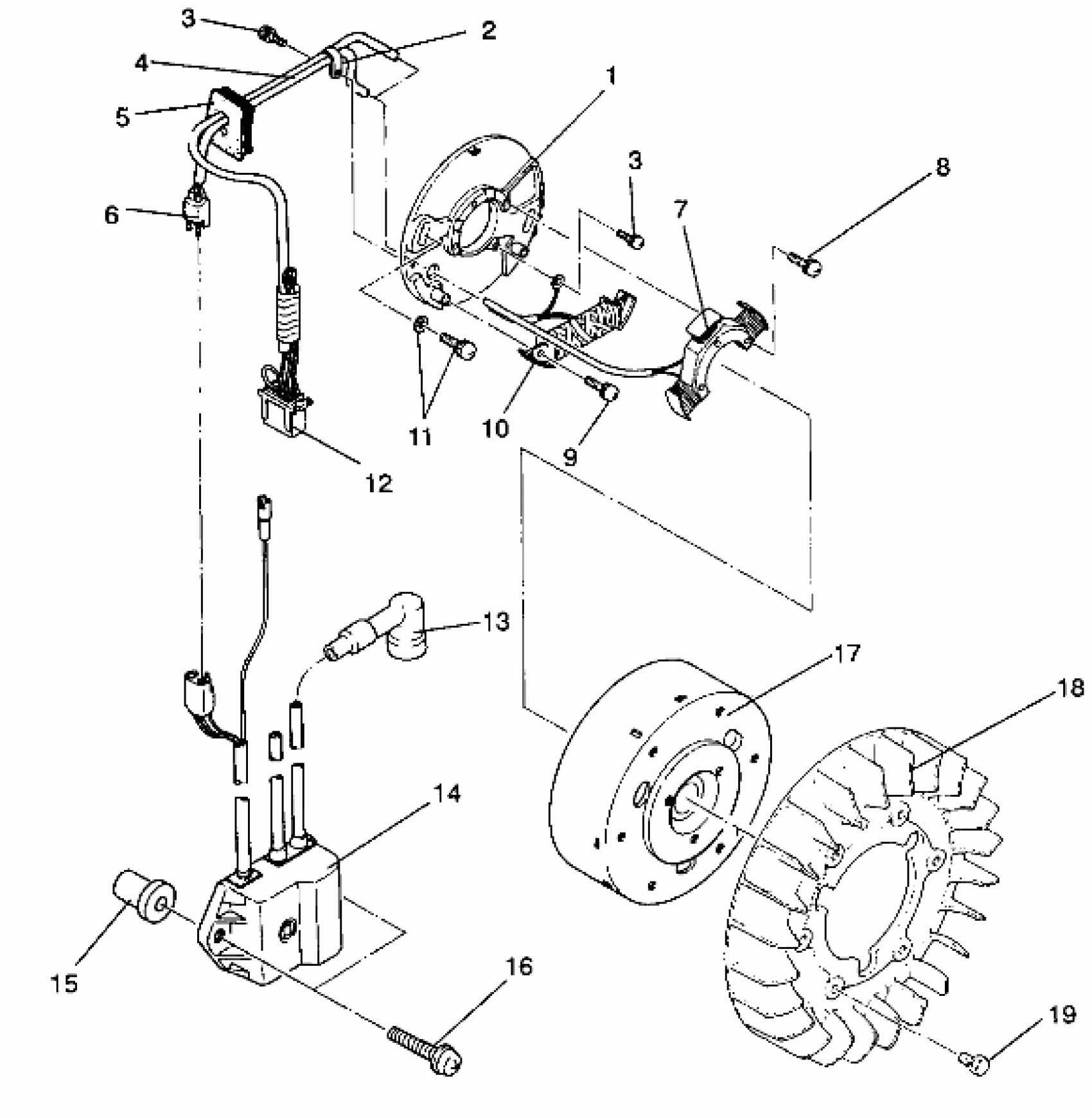

Polaris TRAIL - 0930761 MAGNETO ASSEMBLY TRAIL / 0930761 and TRAIL DELUXE / 0930243 (4923222322040A) Diagram

#

Description
Price

-

PLATE, COIL (Incl. 1-10, 12) (Deluxe)

3083987

$364.99

1

PLATE ASM.

3084281

$347.60

1

PLATE ASM. (Incl.1-10, 12, 17-19) (Trail)

3083990

Unavailable

2

Clamp

3081296

Unavailable

3

SCREW&WASHER,(10)

3081260

$3.19

3

SCREW&WASHER,(10)

3081260

$3.19

4

HARNESS, WIRE (Trail)

3084289

Unavailable

4

HARNESS, WIRE (Deluxe)

3083993

$66.39

5

Grommet

3082969

Unavailable

6

COUPLER

3083909

$23.99

7

Stator 1

3083991

$339.99

8

SCREW(10)

3082365

$3.19

9

SCREW & WASHER

3083423

$3.19

10

Coil, Exciter

3083984

$89.03

11

SCREW&WASHER,(10)

3082175

Unavailable

12

COUPLER,MALE

3081513

$19.99

13

CAP SPARK PLUG,(10)

4020129

$9.70

14

CDI UNIT Substituted by 3084007 (Deluxe)

3084283

Unavailable

14

CDI UNIT (Trail)

3084007

Unavailable

15

NUT-RUBBER

3083240

Unavailable

16

SCREW&WASHER,(10)

3083784

$2.39

17

FLYWHEEL ASM. (Incl. 18,19)(Deluxe)

3084282

Unavailable

17

FLYWHEEL ASM. (Incl. 18,19) (Trail)

3084006

Unavailable

18

BLOWER

3083560

Unavailable

19

BOLT&WASHER

3083153

Unavailable
