HOOD ASSEMBLY TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322007A)

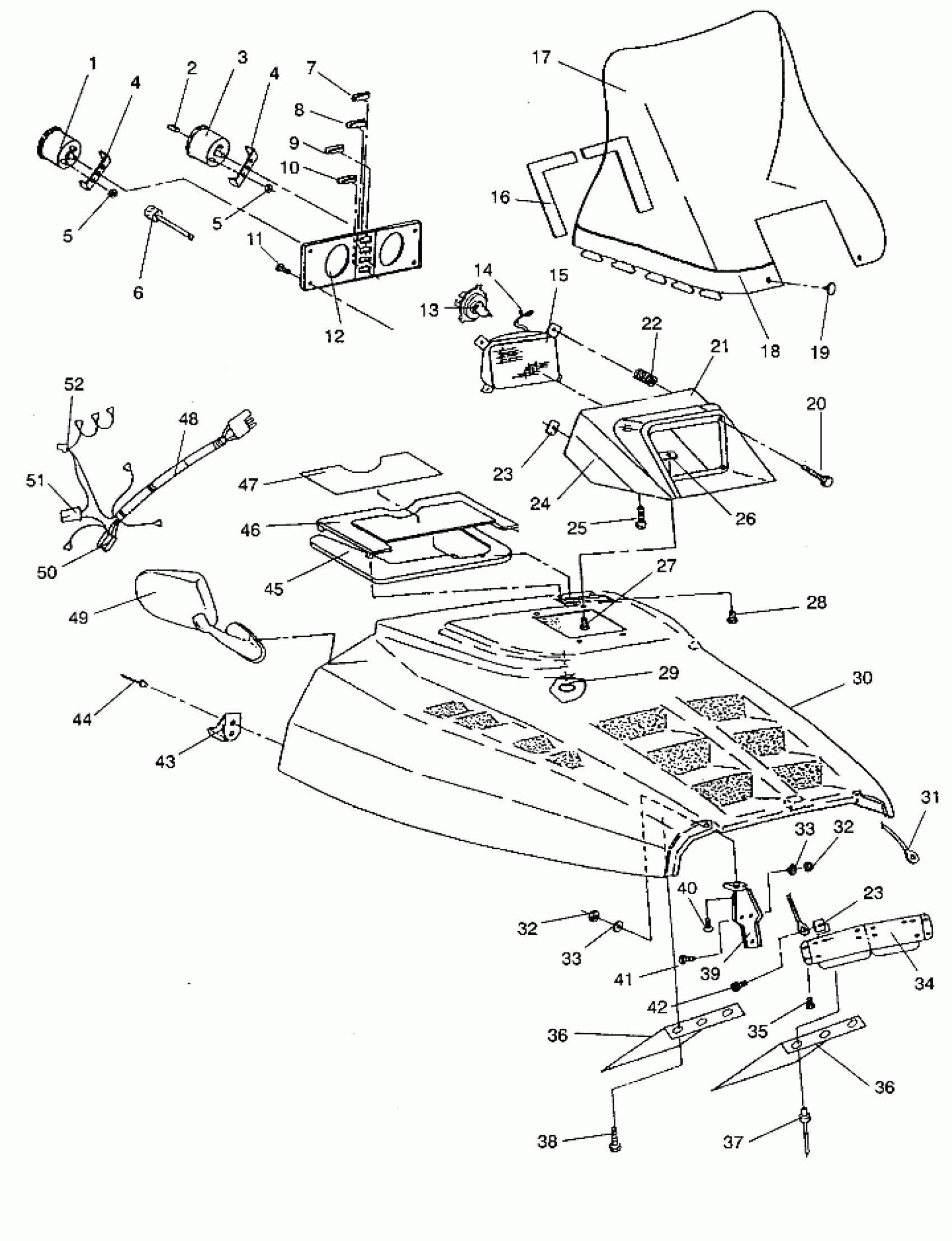

Polaris TRAIL - 0930761 HOOD ASSEMBLY TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322007A) Diagram
#
1
TACHOMETER (Incl.4 & 5 ) (Trail)
3280093
Unavailable
1
TACHOMETER (Incl. 4 & 5 ) (Trail)
3280093
Unavailable
2
KNOB,TRIP ODOMETER
3280103
$3.83
3
SPEEDOMETER (Incl. 4, 5)
3280092
$111.99
3
SPEEDO.,(KILOMETER) (Incl. 4, 5)
3280097
$125.65
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
NUT
3280063
Unavailable
5
NUT
3280063
Unavailable
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
8
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
PLUG,INDIC.HOLE
5430967
$5.65
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST. (Trail)
5430924
Unavailable
12
BEZEL, INSTRUMENT (Deluxe)
5431064
$16.67
13
BULB,QUARTZ.H/L,INDY (Deluxe)
2870448
$24.99
13
BULB, H/L (Trail)
4030028
$29.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM. (Deluxe)
4032040
Unavailable
15
HEADLIGHT ASM. (Trail)
4032038
Unavailable
16
PAD, W/S, LH
5810414
Unavailable
16
PAD, W/S
5810415
Unavailable
17
WINDSHIELD,HI,TEAL,INDY Substituted by 5431118 (Deluxe)
5431327
Unavailable
17
WINDSHIELD,LT.TEAL(INDY) (Trail)
5431458
Unavailable
18
DECAL,W/S.STRIPE [No Longer Available]
7073579
Unavailable
19
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
20
SCREW, ADJ.(10)
4032003
Unavailable
21
HSG.,INST.,SLATE
5430923-174
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG.,INST.BOTT,SLATE
5430922-174
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
30
HOOD, TEAL Substituted by 2631573-168 (Incl. Foam & Foil)
5431193-168
Unavailable
31
CABLE,HD.RETAINER
7080360
$24.27
32
NUT-LOCK(10)
7542122
$1.49
32
NUT-LOCK(10)
7542122
$1.49
33
WASHER,WROUGHT(10)
7558302
$1.59
33
WASHER,WROUGHT(10)
7558302
$1.59
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
SCREW(10)
7511861
Unavailable
36
DEFLECTOR, AIR
5222458
Unavailable
36
DEFLECTOR, AIR
5222458
Unavailable
37
POP RIVET(50)
7621425
$1.49
38
SCREW(10)
7511858
$3.99
39
HINGE ASM,HD,BLK
2635005-067
$16.67
40
BOLT(10)
7512193
$2.39
41
BOLT-CARRIAGE(10)
7512263
$3.99
42
SCREW(10)
7511989
Unavailable
43
CUP, HOOD LATCH,(10)
5430733
$4.84
44
RIVET(50)
7621334
$1.49
45
SEAL, INTAKE
5810597
Unavailable
46
PANEL, DARK TEAL Substituted by 2620078-168
5431195-169
Unavailable
46
COVER, INLET,TEAL Substituted by 5431195-169
5431195-168
Unavailable
47
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
48
HARNESS, HEADLIGHT
2460383
Unavailable
49
PR,MIRRORS,R.VIEW (Deluxe)
2870938
Unavailable
50
HOUSING
4020052
Unavailable
51
Housing
4020115
$1.59
52
HOUSING
4020114
Unavailable
52
DESC NOT_AVAILABLE
2652101
Unavailable
