ENGINE MOUNTING TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322029A)

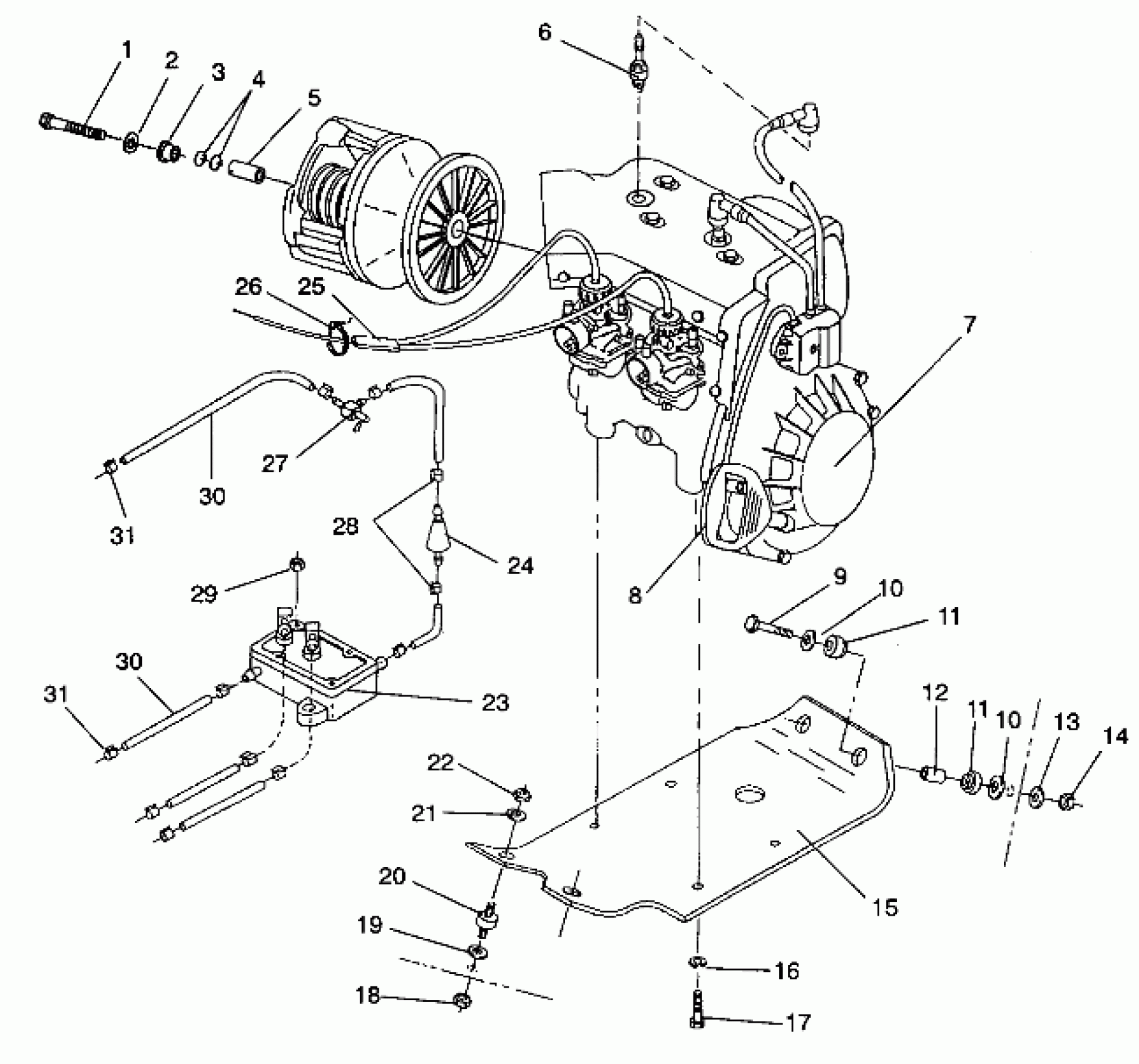

Polaris TRAIL - 0930761 ENGINE MOUNTING TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322029A) Diagram
#
Description
Price
1
BOLT(10) (Trail)
7512565
$19.99
1
BOLT(10) (Trail Deluxe)
7512566
$30.79
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
4
O RING,(10)
5410507
$1.49
5
BUSHING-.437 X.770 X.50 (Trail Only)
5430261
$7.19
6
SPARKPLUG (10)
3070156
$3.99
7
ENG.EC50PM-01(TRAIL) [No Longer Available] (Trail)
1211442
Unavailable
7
ENG,EC44-3PM-01 [No Longer Available] (Trail Deluxe)
1211477
Unavailable
8
HANDLE-RECOIL
5430520
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
SPACER, (MTR.MT.)
5332778
Unavailable
13
WASHER(10)
7555817
Unavailable
14
NUT, LOCK,(10)
7542503
$10.39
15
PLATE,ENG.MT.
5222169
Unavailable
16
WASHER LOCK(10)
7553101
$3.99
17
BOLT(10)
7512539
$3.99
18
NUT LOCK(10)
7542411
$3.19
19
WASHER(10)
7555721
$1.49
20
MOUNT
3110022
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
NUT-LOCK(10)
7542439
$1.49
23
Fuel Pump (See page 35)
-------
Unavailable
24
FILTER FUEL,(10)
2530008
$4.84
25
CABLE, THROTTLE (Trail)
7080289
$154.99
25
CABLE,THROTTLE Substituted by 7080552 (Dlx)
7080332
Unavailable
26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
VALVE,FUEL SHUT-OFF (Deluxe)
7052039
Unavailable
27
VALVE,FUEL SHUT-OFF (Trail)
7052040
Unavailable
28
CLAMP, HOSE (Trail)
7080490
Unavailable
29
NUT-LOCK(10)
7542122
$1.49
30
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
30
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
