DRIVE TRAIN ASSEMBLY TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322019A)

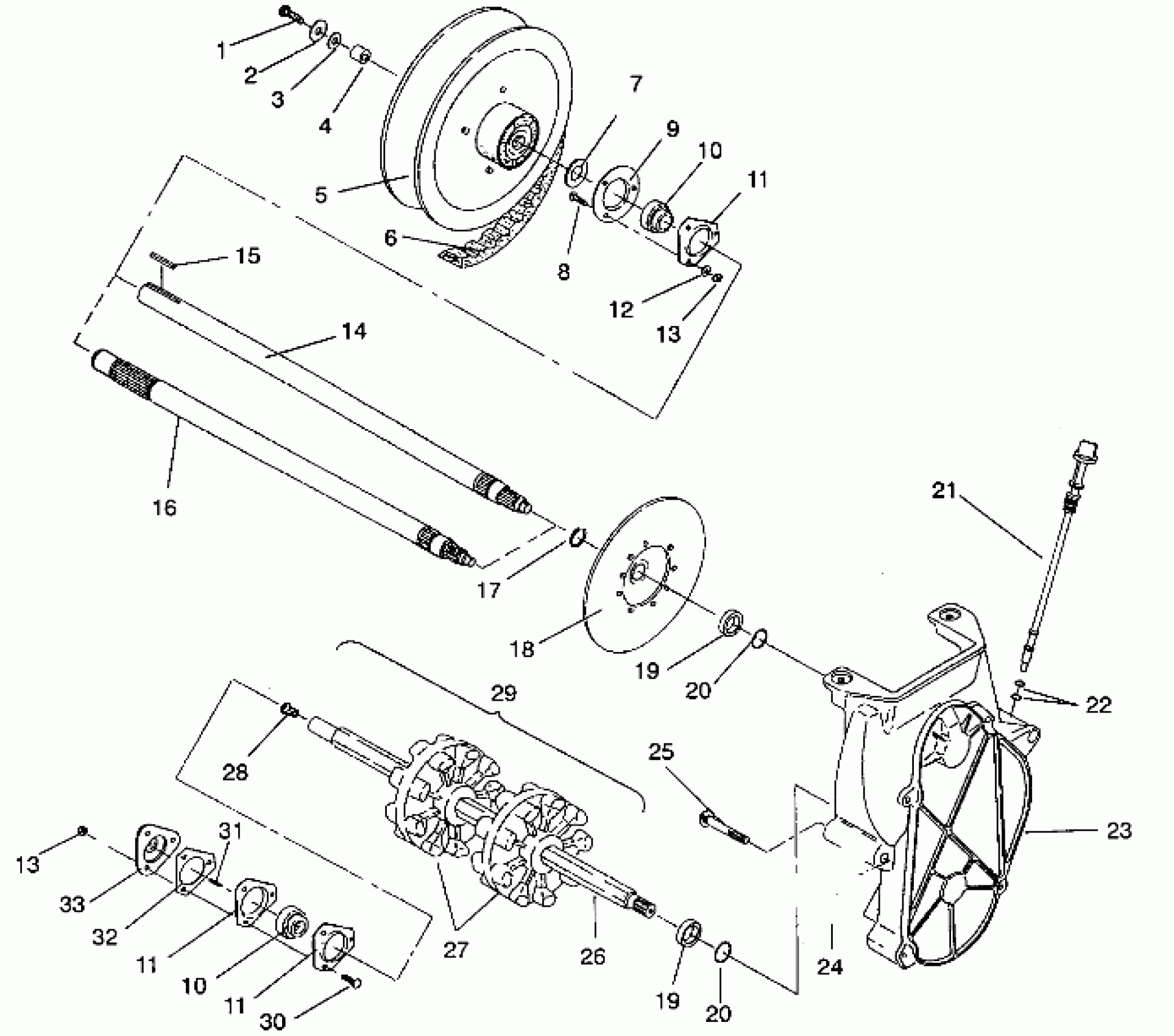

Polaris TRAIL - 0930761 DRIVE TRAIN ASSEMBLY TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322019A) Diagram
#
1
BOLT(10) (Trail)
7515301
Unavailable
1
BOLT(10) (Deluxe)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER (Trail)
5020291
Unavailable
4
SPACER,DRIVEN CLUTCH (Deluxe)
5020645
Unavailable
5
CLUTCH-DRIVEN-36DEG. Substituted by 1322151 (Trail)
1322105
Unavailable
5
CLUTCH, DRIVEN,SPLINED (Deluxe)
1322145
Unavailable
6
BELT DRIVE(5) (Trail)
3211042
$109.99
6
BELT, DRIVE(5) (Deluxe)
3211059
$79.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
10
BEARING Substituted by 3514518
3514513
$64.99
10
BEARING Substituted by 3514518
3514513
$64.99
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
JACKSHAFT ASM, BLK. (Incl. 17) (Trail)
1332141-067
$190.46
15
KEY-SQUARE(10) (Trail)
7721204
$3.19
16
JACKSHAFT ASM. (Incl. 17) (Deluxe)
1332146-067
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
Asm., Chaincase (See pg. 15)
-------
Unavailable
24
NUT(10)
7542423
$3.99
25
BOLT(10)
7515428
$4.79
26
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
27
SPROCKET, 9T
5430571
Unavailable
28
BUSHING METAL SPEEDO
3280019
$11.99
29
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 26 - 28)
1590230
$285.70
30
BOLT(10)
7512331
$3.99
31
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
