CYLINDER ASSEMBLY TRAIL/0930761 (4923222322033A)

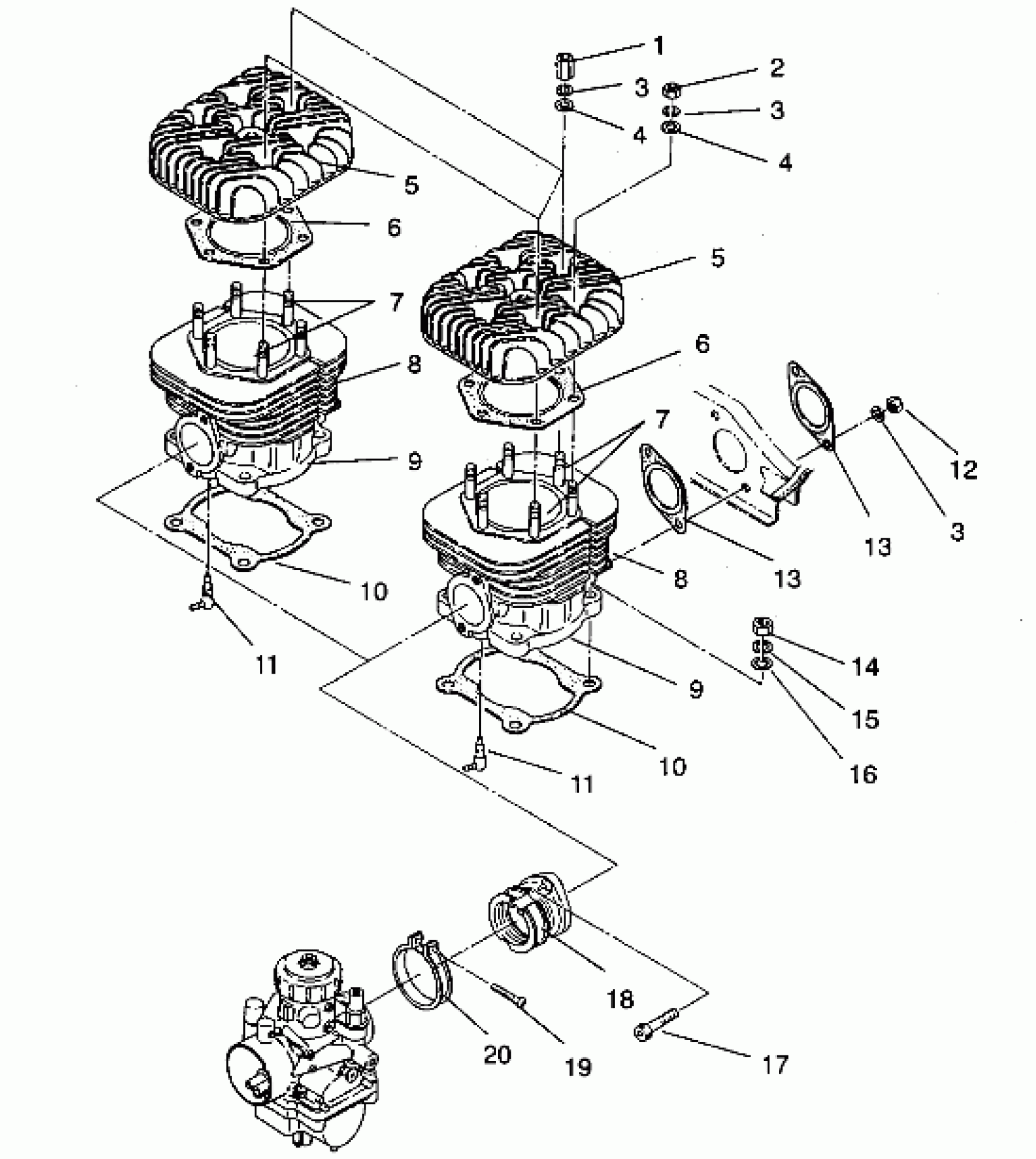

Polaris TRAIL - 0930761 CYLINDER ASSEMBLY TRAIL/0930761 (4923222322033A) Diagram
#
Description
Price
1
NUT
3083541
Unavailable
2
NUT(10)
3080119
$2.39
3
WASHER LOCK ,(10)
3080530
$3.19
3
WASHER LOCK ,(10)
3080530
$3.19
3
WASHER LOCK ,(10)
3080530
$3.19
4
WASHER(10)
3080142
$3.99
4
WASHER(10)
3080142
$3.99
5
HEAD, CYLINDER
3083707
Unavailable
5
HEAD, CYLINDER
3083707
Unavailable
6
GASKET, HEAD
3083768
Unavailable
6
GASKET, HEAD
3083768
Unavailable
7
Stud
3080283
$12.94
7
Stud
3080283
$12.94
8
STUD (10)
3080016
$5.75
8
STUD (10)
3080016
$5.75
9
CYLINDER (Incl. 7, 8, 11)
3083695
Unavailable
9
CYLINDER (Incl. 7, 8, 11)
3083695
Unavailable
10
GASKET-CYL
3083081
Unavailable
10
GASKET-CYL
3083081
Unavailable
11
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
11
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
12
NUT(10)
3080285
Unavailable
13
GASKET, EXHAUST
3083770
Unavailable
13
GASKET, EXHAUST
3083770
Unavailable
14
NUT Substituted by 3082911
3080047
Unavailable
15
WASHER, SPRING(10)
3080281
$0.79
16
WASHER(10)
3080356
$2.99
17
Bolt, Allen
3081330
$3.99
18
MOUNT, CARBURETOR Substituted by 3085044
3083306
Unavailable
19
SCREW Substituted by 3081497
3083086
Unavailable
20
BAND ASM. (Incl. 19)
3083166
$19.84
