CHAINCASE ASSEMBLY TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322018A)

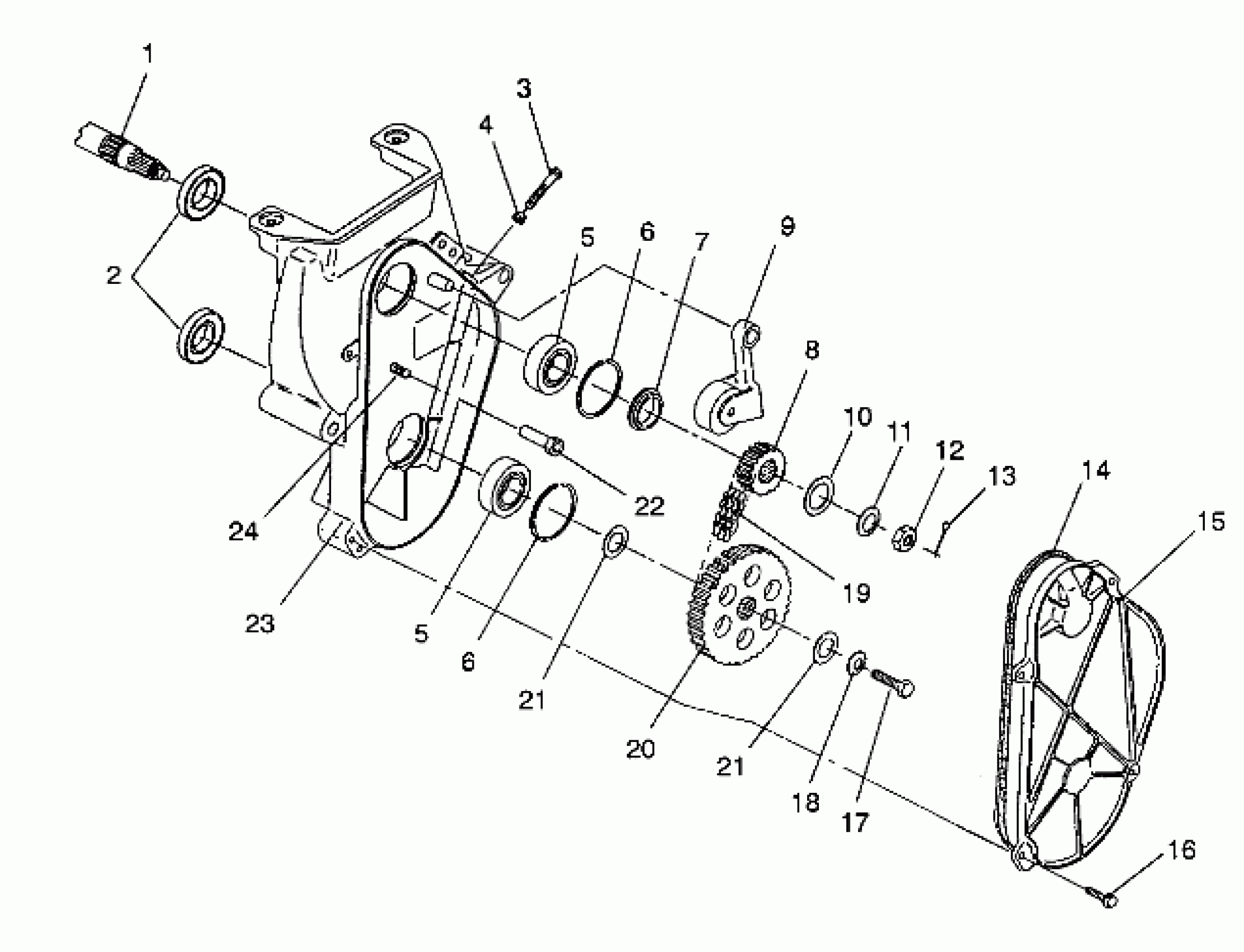

Polaris TRAIL - 0930761 CHAINCASE ASSEMBLY TRAIL/0930761 and TRAIL DELUXE/0930243 (4923222322018A) Diagram
#
Description
Price
1
Asm., Jackshaft (See pg. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,CHAINCASE
3514306
Unavailable
5
BEARING,CHAINCASE
3514306
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER, SPROCKET
5010270
Unavailable
8
SPROCKET 21 T (Trail)
3221035
Unavailable
8
SPROCKET 16 T (Deluxe)
3221032
Unavailable
9
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
10
BUSHING(10)
7555863
$2.39
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
16
SCREW(10)
7512242
$2.39
17
SCREW(10)
7515350
$3.97
18
WASHER(10)
7571618
$6.39
19
CHAIN 64 PITCH (Deluxe)
3224023
Unavailable
19
CHAIN 66 PITCH (Trail)
3224024
Unavailable
20
SPROCKET 39 T
3222034
Unavailable
21
BUSHING(10)
7555864
$2.39
21
BUSHING(10)
7555864
$2.39
22
CAP, STUD COVER
5020569
Unavailable
23
CHAINCASE,TOP MNT.BRAKE
5130849
Unavailable
24
BOLT(10)
7515477
$34.99
