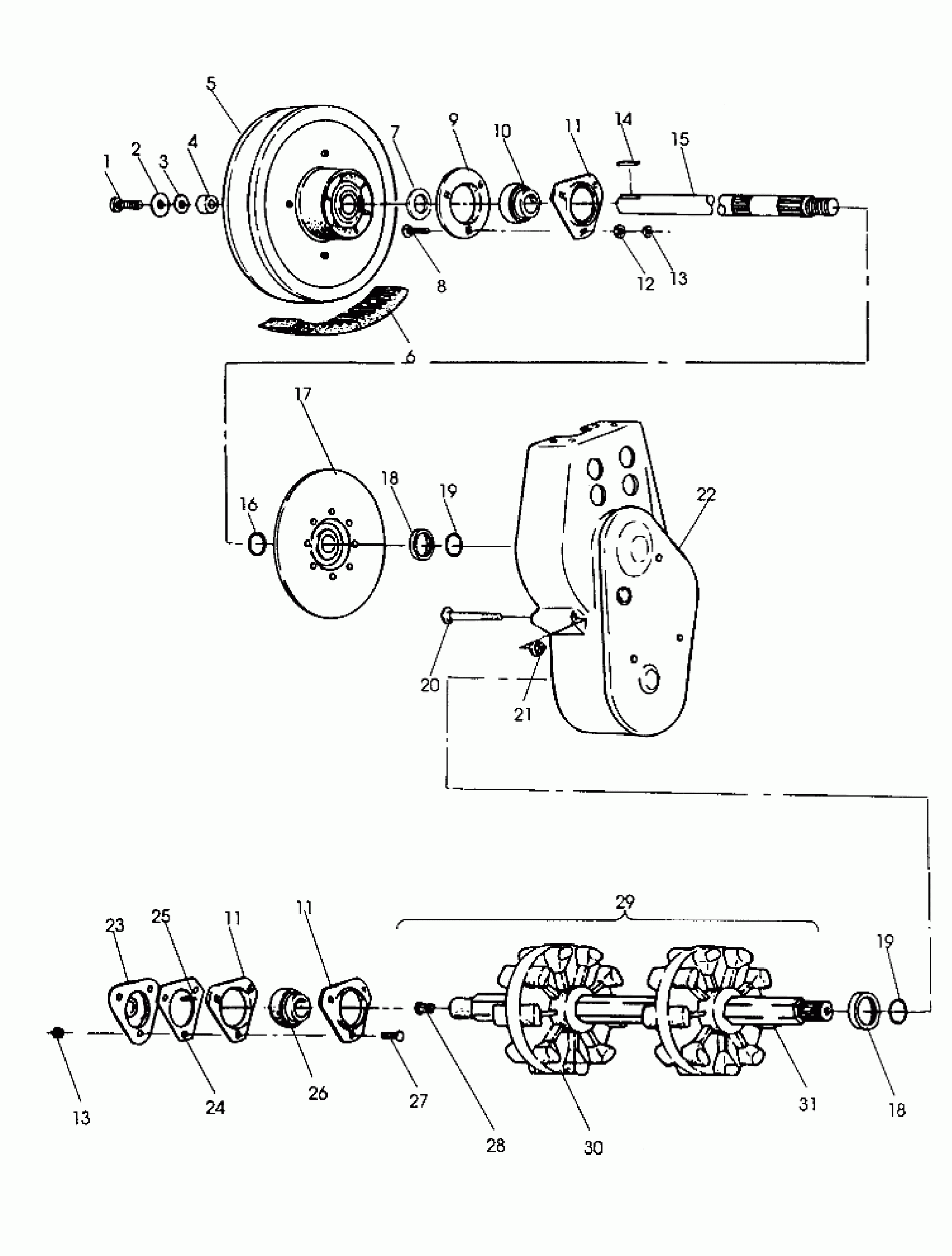

Polaris TRAIL - 0920761 CHAINCASE ASSEMBLY Trail (4921272127027A) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER(10)
7571618
$6.39
3
WASHER(10)
7555734
$1.49
4
SPACER
5020291
Unavailable
5
CLUTCH-DRIVEN-36DEG. Substituted by 1322151
1322105
Unavailable
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
$1.59
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
10
BEARING,1 IN.(GREASEABLE)
3514511
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
KEY-SQUARE(10)
7721204
$3.19
15
JACKSHAFT ASM. (Incl. 16)
1332135-067
Unavailable
16
RING, RETAINING(10)
7710422
$3.99
17
DISC BRAKE ASM Substituted by 1910086
1910064
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
BOLT(10)
7515428
$4.79
21
NUT(10)
7542423
$3.99
22
CHAINCASE
5130795
Unavailable
23
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
24
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
25
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
26
BEARING
3514501
Unavailable
27
BOLT(10)
7512331
$3.99
28
BUSHING METAL SPEEDO
3280019
$11.99
29
DRIVESHAFT ASM. Substituted by 1590249 (Incl. 30-31)
1590224
Unavailable
30
SPROCKET, 9T
5430571
Unavailable
31
SHAFT, DRIVE Substituted by 6230067
5130799
Unavailable
