BRAKE AND CHAINCASE Trail Updated 2/90 (4916831683013A)

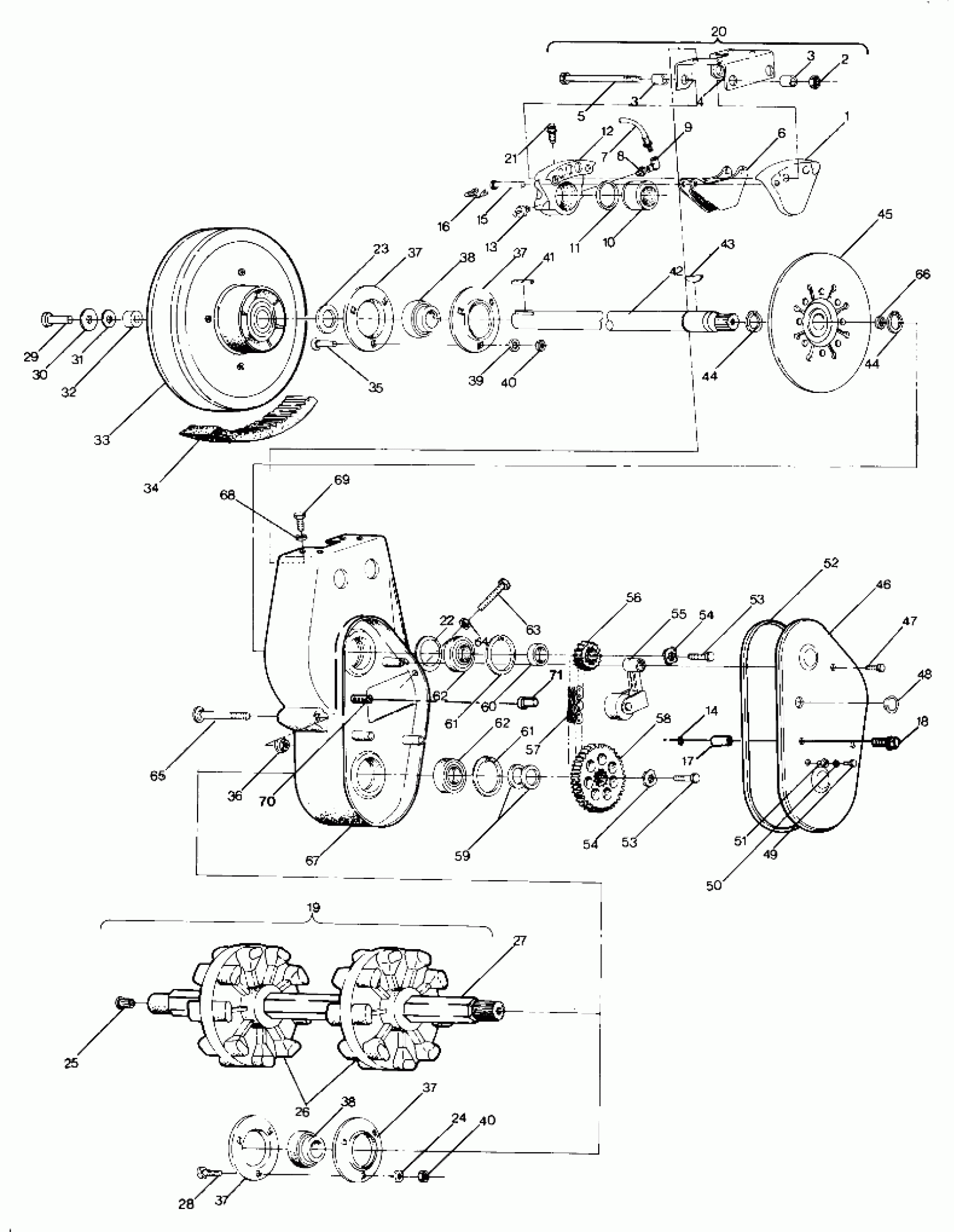

Polaris TRAIL - 0900761 BRAKE AND CHAINCASE Trail Updated 2/90 (4916831683013A) Diagram
#
1
CASTING-CARRIER
1930570
Unavailable
2
NUT
1930558
Unavailable
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET
1930560
Unavailable
5
BOLT-BRIDGE
1930561
Unavailable
6
PAD, BRAKE
1930569
Unavailable
7
LINE-BRAKE [No Longer Available]
5420114
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW-FEMALE
7052034
$5.19
10
PISTON
1930568
Unavailable
11
SEAL-PISTON
1930567
Unavailable
12
CALIPER ASM, BRAKE Substituted by 1930556
1930566
Unavailable
13
SWITCH-STOPLIGHT
4110046
Unavailable
14
O RING
5410565
Unavailable
15
PIN,PAD RETAINING
1930563
Unavailable
16
CLIP-SPRING
1930562
Unavailable
17
STAND-OFF,C/C COVER
5333033
Unavailable
18
BOLT, S.S.(10)
7512293
Unavailable
19
DRIVE SHAFT ASM (Incl. 25-27)
1590198
Unavailable
20
CALIPER ASM, BRAKE (Incl. 1-6, 10-12)
1930556
Unavailable
21
SCREW-BLEEDER
1930564
Unavailable
22
O-RING,CHAINCASE
5410401
Unavailable
23
WASHER SPECIAL(10)
7556509
Unavailable
24
WASHER(10)
7555725
Unavailable
25
BUSHING METAL SPEEDO
3280019
$11.99
26
SPROCKET, 9T
5430571
Unavailable
27
DRIVE SHAFT
5020388
Unavailable
28
BOLT(10)
7512331
$3.99
29
BOLT(10)
7515301
Unavailable
30
WASHER FLAT(10)
7555701
$3.99
31
WASHER(10)
7555734
Unavailable
32
SPACER
5020291
Unavailable
33
Driven Clutch Asm.
-------
Unavailable
34
BELT DRIVE(5)
3211042
$109.99
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
NUT(10)
7542423
$3.99
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
38
BEARING
3514501
Unavailable
38
BEARING
3514501
Unavailable
39
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
KEY-SQUARE(10)
7721204
$3.19
42
SHAFT, INPUT,BLK. Substituted by 5020323-067
5020323
Unavailable
43
KEY,(10)
7727003
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
45
DISC BRAKE ASM
1332091
Unavailable
46
COVER CHAINCASE Substituted by 5222579
5223775
Unavailable
47
BOLT(10)
7512246
Unavailable
48
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
49
SCREW(10)
7511909
$3.99
50
WASHER, FLAT(10)
7558201
$5.79
51
NUT-WELL(10)
7541918
Unavailable
52
GASKET-CHAINCASE
5410277
$24.99
53
BOLT(10)
7512325
$2.39
53
BOLT(10)
7512325
$2.39
54
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
54
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 21 T
3221035
Unavailable
57
CHAIN 64 PITCH
3224023
Unavailable
58
SPROCKET 35 T
3222036
$53.59
60
SPACER Substituted by 5010270
5010128
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
BEARING,CHAINCASE *
3514305
$19.99
62
BEARING,CHAINCASE *
3514305
$19.99
63
SCREW(10)
7512470
Unavailable
64
NUT(10)
7542404
$1.59
65
BOLT(10)
7515428
$4.79
66
SPACER,DISK BRAKE
5020430
Unavailable
67
CHAINCASE Substituted by 1332124
5130739
$261.90
68
LOCK WASHER(10)
7552801
$1.59
69
BOLT(10)
7512240
$3.99
70
BOLT(10)
7515477
$34.99
71
CAP, STUD COVER * Red seal of bearing to be positioned to the cover side of the case.
5020569
Unavailable
