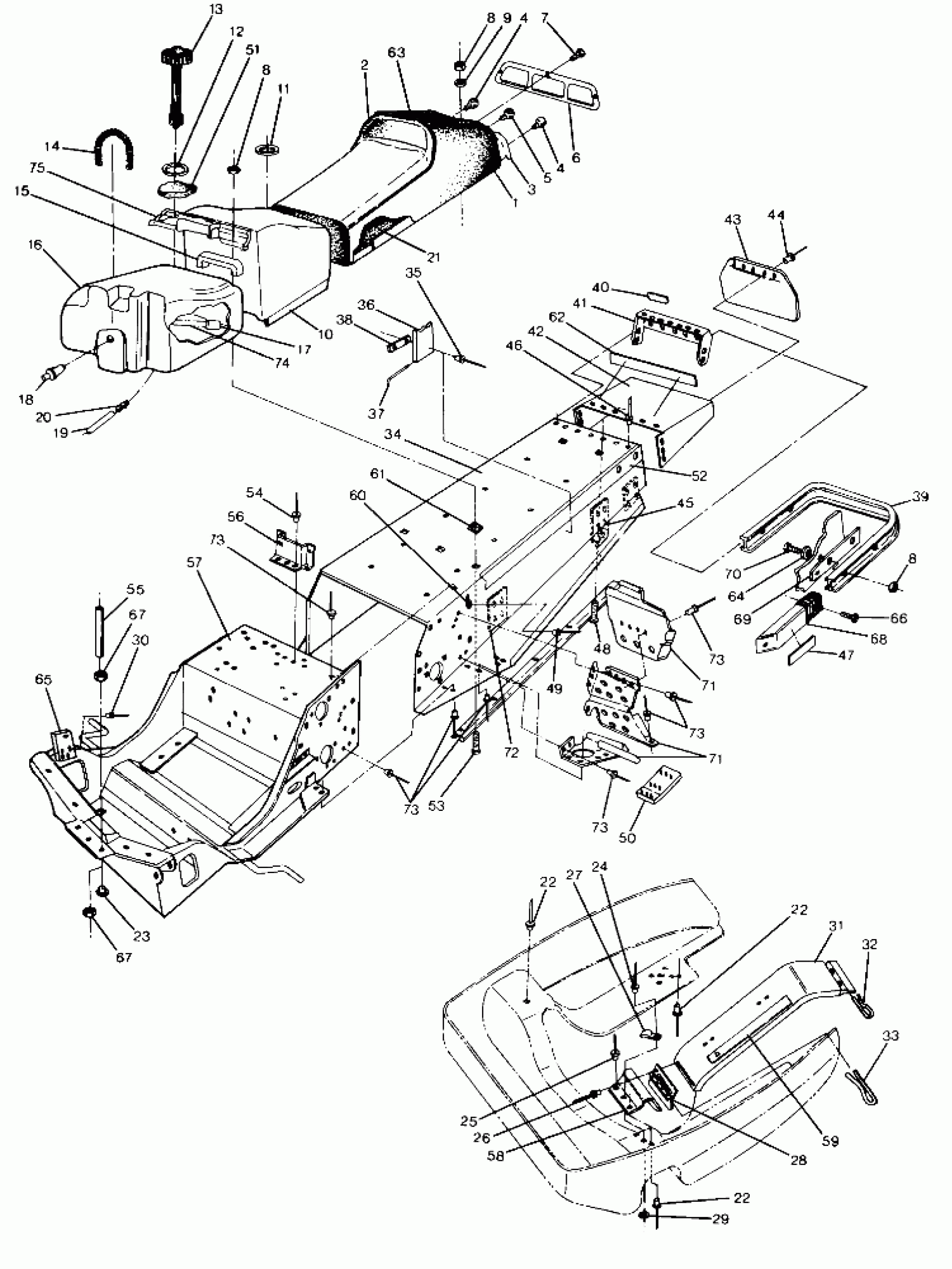

Polaris TRAIL - 0890761 CHASSIS AND SEAT Trail (4915441544001A) Diagram
#
-
SEAT ASM,TRAIL SPEC. Substituted by 2200747 40
2681394
Unavailable
1
CUSHION,SEAT(TRAIL'89) Substituted by 2200748 (Incl. 2-7, 21, 63)
2681387
Unavailable
2
COVER,SEAT(TRAIL'89) Substituted by 2200739
2681388
Unavailable
2
COVER,SEAT,TRL.SPEC. [No Longer Available] (Trail Special Only)
2681395
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
COVER,TANK(TRAIL'89) Substituted by 2200738
2681389
Unavailable
11
GROMMET-GAS TANK
5430575
Unavailable
12
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
13
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
14
SPRING,TANK,(10)
7042020
$13.75
15
CUSHION,TANK H.D.
5420126
Unavailable
16
TANK,GAS
2511150
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FITTING - OUTLET(10)
7052023
$24.99
19
KIT-TANK VENT
2200190
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
SEAT BUN [No Longer Available]
5430706
Unavailable
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
23
PLUG (Except Trail ES)
7080288
Unavailable
24
POP RIVET(50)
7621402
$1.49
25
RIVET(50)
7621452
$1.49
26
RIVET, POP(50)
7621330
$1.49
27
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
28
HINGE
5211047
$3.49
29
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
31
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
32
PIN,RETAINING,(10)
7080216
$9.70
33
PIN, FRONT
7080311
Unavailable
34
TUNNEL ASM,TRL.SPEC. Substituted by 1011663 (Trail Special Only)
1011682
Unavailable
34
TUNNEL, (TRAIL)
1011663
Unavailable
34
TUNNEL ASM.,(SKS) [No Longer Available] (SKS Only) w/1011694
1011675
Unavailable
35
POP RIVET(50) (Except Trail Special)
7621323
$1.49
36
BELT,SEAT (Except Trail Special)
7080322
Unavailable
37
WIRE-SEAT-BELT (Except Trail Special)
5223864
Unavailable
38
PLATE-SEAT BELT (Except Trail Special)
5210842
Unavailable
39
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
39
BUMPER, (SKS) Substituted by 5224349-067 (Trail SKS Only)
5224349
Unavailable
40
DECAL, TRACK Substituted by 7072872
7072132
Unavailable
41
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
42
PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (Trail SKS Only)
1011694
Unavailable
43
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
44
POP RIVET(50)
7621418
$1.49
45
BRKT,R.SUSP,RH MTG. Substituted by 1011750-067
1011667
Unavailable
45
BRKT,R.SUSP,LH MTG. Substituted by 1011749-067
1011666
Unavailable
46
RIVET, (MONOBOLT) Substituted by 7661637 (Trail SKS Only)
7661620
Unavailable
47
REFLECTOR RED
2670070
$9.91
48
BOLT(10)
7512103
$3.19
49
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
50
PLATE,TUNNEL,LH
5220634
Unavailable
50
PLATE,TUNNEL,RH
5220635
Unavailable
51
FOAM, FILLER
5810201
Unavailable
52
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
53
BOLT(10)
7512193
$2.39
55
TUBE,DRAIN BATTERY [No Longer Available] (Trail ES Only)
5332405
Unavailable
56
BRACKET Substituted by 5221932-067
5221932
Unavailable
57
BULKHEAD, (TRAIL)
1011612
Unavailable
58
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
59
DECAL, WARNING [No Longer Available]
7072153
Unavailable
60
SNAP-MALE(10)
7080227
Unavailable
61
SPEED NUT(10)
7670021
$6.99
62
DECAL [No Longer Available] (Trail SKS Only)
7072414
Unavailable
63
BUCKLE&STRAP
2681291
Unavailable
64
WASHER(10)
7558301
$1.49
65
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
66
SCREW-SEMS(10)
7511848
$3.99
67
PALNUT(10) (Trail ES Only)
7670031
Unavailable
67
PALNUT(10) (Trail ES Only)
7670031
Unavailable
68
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
69
SPACER,R.BUMPER [No Longer Available]
5211109
Unavailable
70
BOLT(10)
7512240
$3.99
71
FOOTREST ASM,LH
2200250
Unavailable
71
FOOTREST ASM,RH
2200254
Unavailable
71
FOOTREST ASM,LH
2200250
Unavailable
71
FOOTREST ASM,RH
2200254
Unavailable
72
BRKT. Substituted by 5220542-067
5220542
Unavailable
74
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
75
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
