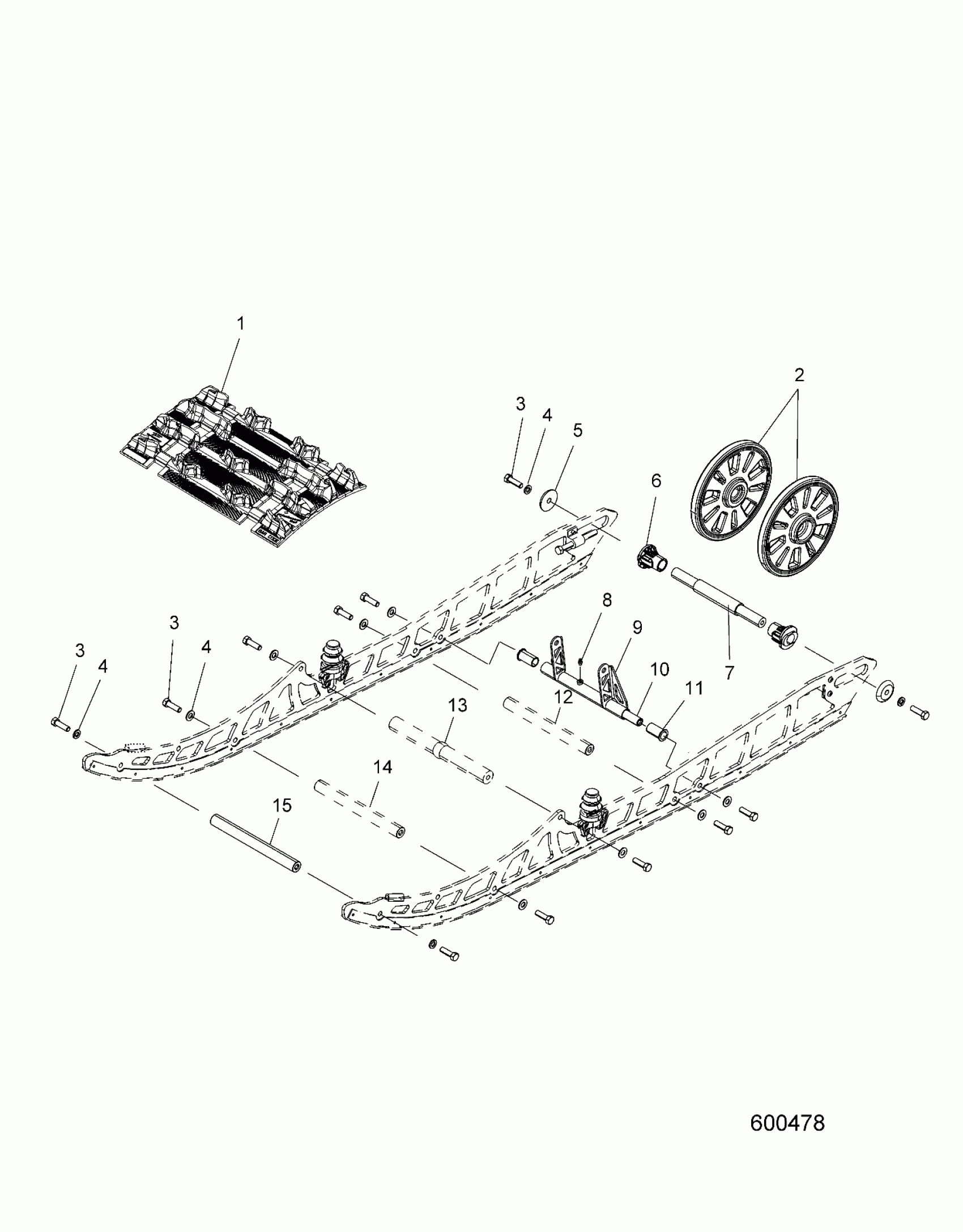

Polaris TIMBERSLED ST, LT, SX 120, SX 137 (LEGACY MODELS)( TIMBERSLED) - 2016 SUSPENSION, REAR ASM. - TIMBERSLED ST, LT, SX 120, SX 137 (600478) Diagram

#

Description

Price

1

TRACK-CONVEX 120x2.5

5416238

Unavailable

1

TRACK-CONVEX 137x 2.5

5416239

Unavailable

1

TRACK-CONVEX 120 SX

2206953

Unavailable

1

TRACK-CONVEX 137 SX

2206954

Unavailable

2

ASM., WHEEL, 8"

2206690

Unavailable

3

SCR-3/8-16X1.25 HX HD CP GR5-Y

7515440

$3.99

3

SCR-3/8-16X1.25 HX HD CP GR5-Y

7515440

$3.99

3

SCR-3/8-16X1.25 HX HD CP GR5-Y

7515440

$3.99

4

WASHER-3/8 SPLIT

7557042

Unavailable

4

WASHER-3/8 SPLIT

7557042

Unavailable

4

WASHER-3/8 SPLIT

7557042

Unavailable

5

WASHER-AXLE

7557048

Unavailable

6

BLOCK-AXLE ADJUSTER

5141103

Unavailable

7

SHAFT-AXLE, REAR

5141104

Unavailable

8

GREASE ZERK

7082299

Unavailable

9

ASM-LOWER SCISSOR ARM

2206780

Unavailable

10

SHAFT-REAR LOWER

2206876

Unavailable

11

BUSHING-SPINDLE

2206947

Unavailable

12

SHAFT-REAR SHOCK [SEE REAR TORQUE ARM PG]

-------

Unavailable

13

SHAFT-FLEX FRONT ARM ASM [SEE REAR TORQUE ARM PG]

-------

Unavailable

14

SHAFT-LOWER FRONT SHOCK [SEE FRONT TORQUE ARM PG]

-------

Unavailable

15

SHAFT-LOWER CROSS

2206941

Unavailable
