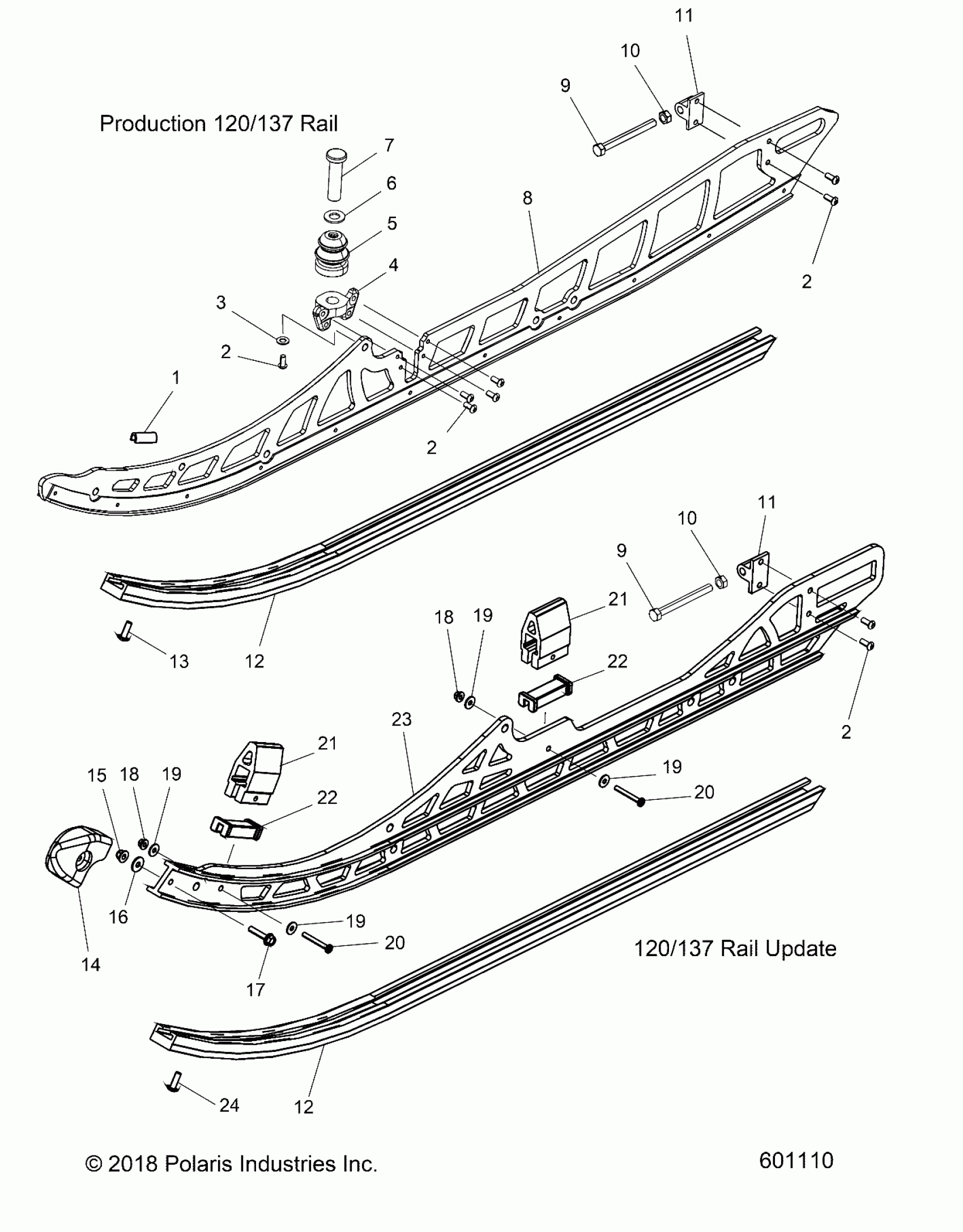

Polaris TIMBERSLED ST, LT, SX 120, SX 137 (LEGACY MODELS)( TIMBERSLED) - 2016 SUSPENSION, RAIL ASM. (LH,RH) - TIMBERSLED ST, LT, SX120, SX 137 (600477) Diagram

BUMPER-FRONT

5416279

Unavailable

BOLT, 1/4

7520665

Unavailable

BOLT, 1/4

7520665

Unavailable

BOLT, 1/4

7520665

Unavailable

WASHER-1/4

7557033

Unavailable

BRKT-BUMPER BASE RAIL

5141290

Unavailable

BUMPER-BOTTOM OUT

2206808

Unavailable

WASHER-BELLVILLE

7557037

Unavailable

PLUNGER-BOTTOM OUT

2206699

Unavailable

ASM., RAIL, 120 LH, BLK [INCL. 1-13][FITS ST120 and SX120]

2206802

Unavailable

ASM., RAIL, 120 RH, BLK [INCL. 1-13][FITS ST120 and SX120]

2206803

Unavailable

ASM., RAIL, 137 [SVC PART DISCONTINUED, MUST ORDER QTY 2 OF #23 BELOW and REPLACE BOTH LH/RH RAIL]

-------

Unavailable

BOLT

7515459

$5.59

BOLT

7515459

$5.59

NUT, 3/8"

7547868

Unavailable

NUT, 3/8"

7547868

Unavailable

BLOCK-TRACK ADJUSTER

2206693

Unavailable

BLOCK-TRACK ADJUSTER

2206693

Unavailable

HYFAX-RAIL

2206848

Unavailable

HYFAX-RAIL

2206848

Unavailable

SCREW, 1/4" SELF-TAP

7515199

$1.49

CAP-RAIL TIP, UHMW

5438374

$20.22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

WASHER-M5.3X15X102 ZOD

7556470

$2.39

WASHER-M5.3X15X102 ZOD

7556470

$2.39

WASHER-M5.3X15X102 ZOD

7556470

$2.39

WASHER-M5.3X15X102 ZOD

7556470

$2.39

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

BUMPER-HOLLOW, TALL

5414323

$12.94

BUMPER-HOLLOW, TALL

5414323

$12.94

LINER-BUMPER

5432946

$9.70

LINER-BUMPER

5432946

$9.70

ASM., RAIL, 120, 2016 UPDATE [INCL. 12,14-22, 24][ORDER QTY OF 2, MUST UPDATE LH/RH TOGETHER]

2208118

Unavailable

ASM., RAIL, 137, 2016 UPDATE [INCL. 12,14-22, 24][ORDER QTY OF 2, MUST UPDATE LH/RH TOGETHER]

2208119

Unavailable

SCR-M6X1.0X20 TR/TX/TP ZOD

7518976

$3.19
