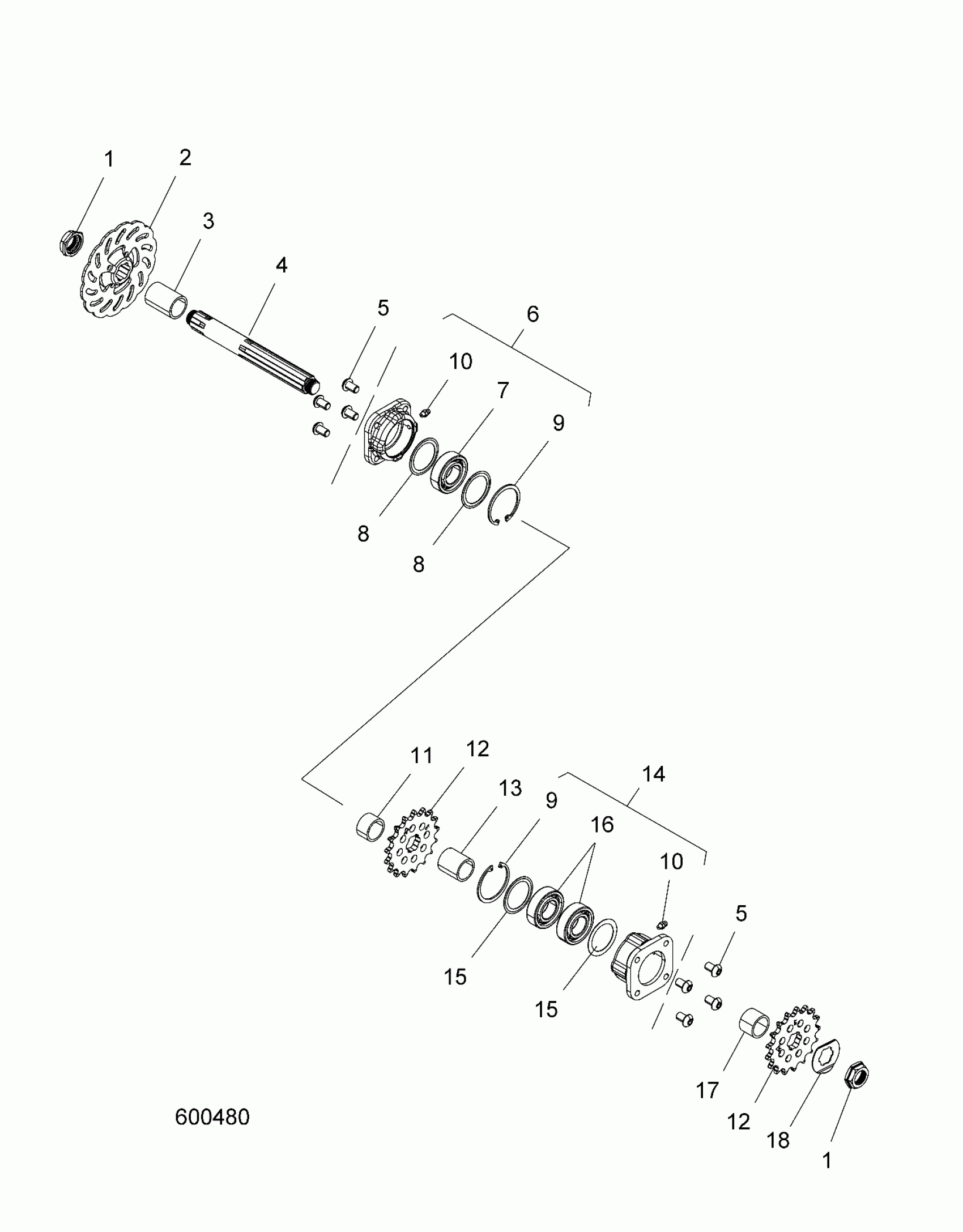

Polaris TIMBERSLED ST, LT, SX 120, SX 137 (LEGACY MODELS)( TIMBERSLED) - 2016 DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - TIMBERSLED ST, LT, SX 120, SX 137 (600480) Diagram

#

Description

Price

1

NUT-SHAFT

7547875

Unavailable

1

NUT-SHAFT

7547875

Unavailable

2

ASM-BRAKE ROTOR

2206777

Unavailable

3

SPACER-1.722

2206894

Unavailable

4

JACKSHAFT [ST, LT]

2206878

Unavailable

4

JACKSHAFT [SX120, SX 137]

2206880

Unavailable

5

BOLT-3/8"

7520667

Unavailable

5

BOLT-3/8"

7520667

Unavailable

6

ASM-SINGLE BEARING HOUSING [INCL. 7-10]

2206758

Unavailable

7

AXLE BEARING W/GREASE HOLES

2206826

Unavailable

8

RETAINING WASHER

7557044

Unavailable

8

RETAINING WASHER

7557044

Unavailable

9

SNAP RING

7710862

Unavailable

9

SNAP RING

7710862

Unavailable

10

GREASE ZERK

7082299

Unavailable

10

GREASE ZERK

7082299

Unavailable

11

SPACER-0.720

2206893

Unavailable

12

SPROCKET-18T

2206811

Unavailable

12

SPROCKET- 16T [SX 120, SX 137]

2206807

Unavailable

12

SPROCKET- 17T [QTY. 1 FOR SX 120, SX 137]

3222274

Unavailable

12

SPROCKET-18T

2206811

Unavailable

12

SPROCKET- 16T [SX 120, SX 137]

2206807

Unavailable

12

SPROCKET- 17T [QTY. 1 FOR SX 120, SX 137]

3222274

Unavailable

13

SPACER, 1.325 [ST, LT]

2206890

Unavailable

13

SPACER, 0.453 [SX120, SX137]

2206886

Unavailable

14

ASM-DOUBLE BEARING HOUSING

2206759

Unavailable

15

RETAINING WASHER

5264017

Unavailable

15

RETAINING WASHER

5264017

Unavailable

16

AXLE BEARING W/GREASE HOLES

2206826

Unavailable

17

SPACER, 0.875

2206892

Unavailable

18

LOCK TAB

5264018

Unavailable
