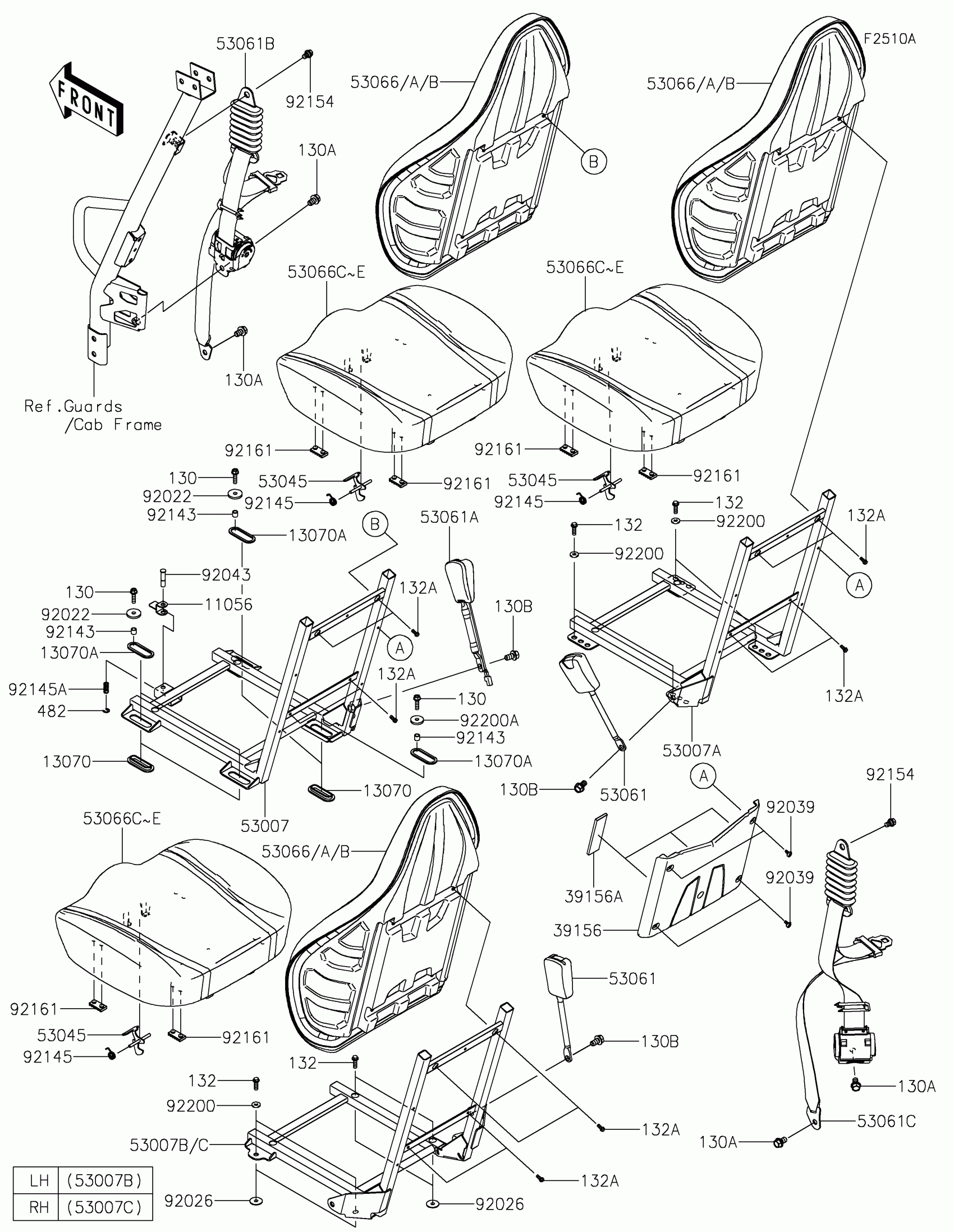

Kawasaki TERYX4™ Seat(FJF-FLF) Diagram
#
Description
Price
11056
BRACKET
11056-7917
$7.59
13070
GUIDE
13070-0806
$1.84
13070A
GUIDE
13070-0807
$1.58
39156
PAD,SEAT BACK
39156-0805
$18.29
39156A
PAD,FR SEAT BACK
39156-0929
$42.35
53007
FRAME-SEAT,FR,LH
53007-0375
$109.85
53007A
FRAME-SEAT,FR,RH
53007-0376
$109.85
53007B
FRAME-SEAT,RR,LH
53007-0378
$109.85
53007C
FRAME-SEAT,RR,RH
53007-0379
$109.85
53045
HOOK-ASSY
53045-0019
$7.79
53061
BELT-SEAT,BUCKLE
53061-0039
$31.80
53061A
BELT-SEAT,BUCKLE,SW.
53061-0338
$55.82
53061B
BELT-SEAT,RETRACTOR,L=2500
53061-0345
$156.61
53061C
BELT-SEAT,RETRACTOR,L=2650
53061-0346
$156.61
53066A
SEAT-ASSY,BACK,BLK/SIL/ORG
53066-0394-41K
$433.25
53066B
SEAT-ASSY,BACK,BLACK+SIL+YEL
53066-0394-61L
$433.25
53066D
SEAT-ASSY,BOTTOM,BLACK+SIL+ORG
53066-0533-41Z
$398.50
53066E
SEAT-ASSY,BOTTOM,BLACK+SIL+ORG
53066-0533-61M
$398.50
92022
WASHER
92022-2116
$2.34
92026
SPACER,8.6X30X4.5
92026-0714
$4.66
92039
RIVET,FASTENER
92039-0713
$2.17
92043
PIN
92043-0882
$7.60
92143
COLLAR,8.8X12X11.5
92143-1340
$4.69
92145
SPRING,SEAT LATCH
92145-0022
$7.15
92145A
SPRING
92145-1682
$3.59
92154
BOLT,FLANGED,10X16
92154-2089
$7.35
92161
DAMPER,SEAT
92161-1489
$3.35
92200
WASHER,8.2X20.0X2.5
92200-0205
$3.35
92200A
WASHER,8.6X31X4.5
92200-1758
$2.17
130
BOLT-FLANGED,8X30
130BA0830
$1.98
130A
BOLT-FLANGED,12X20
130BA1220
$3.74
130B
BOLT-FLANGED,13X22
130BB1222
$4.72
132
BOLT-FLANGED-SMALL,8X25
132BA0825
$4.12
132A
BOLT-FLANGED-SMALL,6X14
132BB0614
$2.49
482
CIRCLIP-TYPE-E,8MM
482EA8000
$0.68
