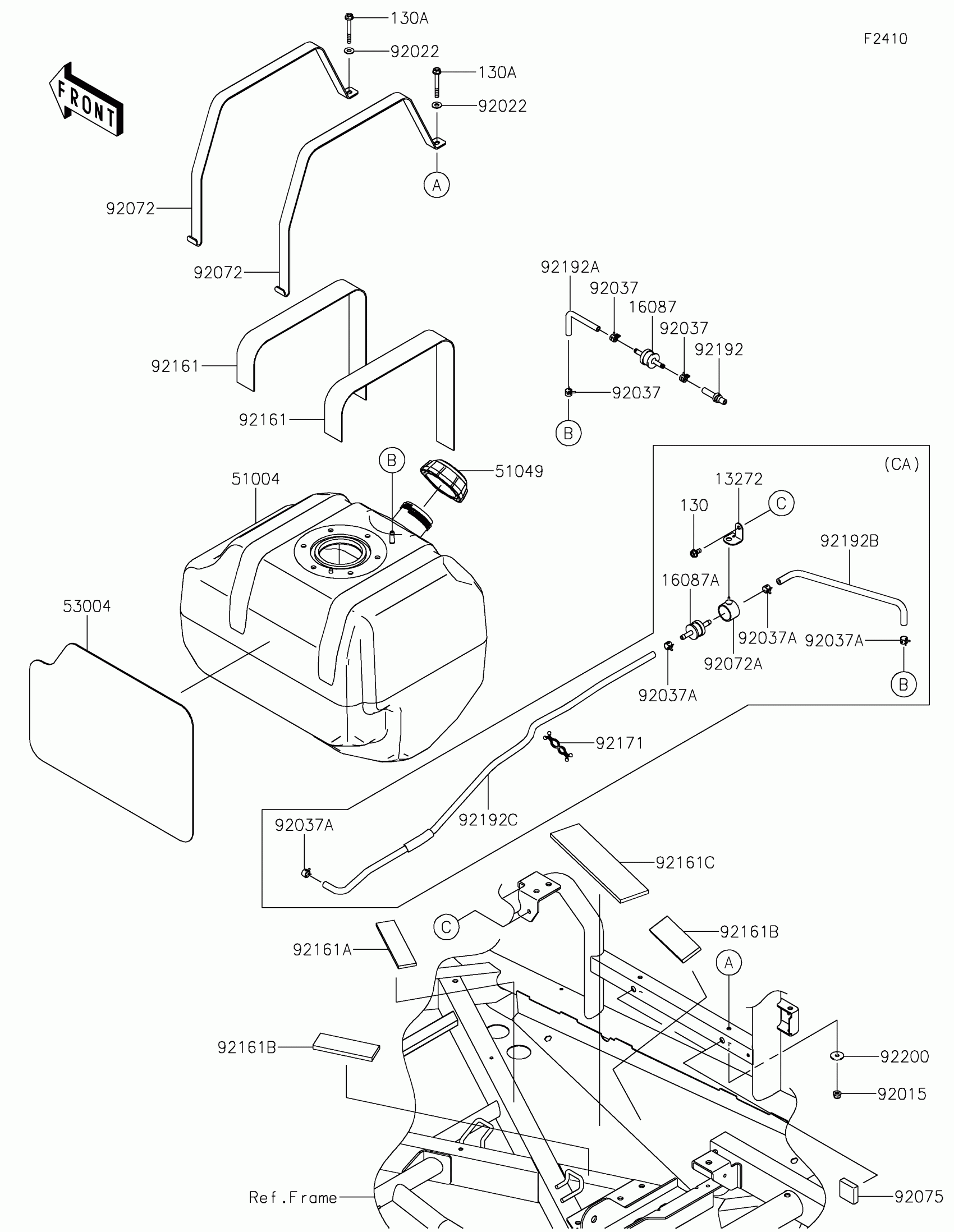

Kawasaki TERYX4™ Fuel Tank(FGF-FKF) Diagram

Description

Price

13272

PLATE

13272-2276

$3.12

16087A

VALVE-CHECK

16087-0009

$37.65

51004

TANK-FUEL

51004-0002

$283.19

51049

CAP-TANK,FUEL

51049-0718

$64.67

53004

MAT

53004-0554

$10.17

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92022

WASHER,7X16X1.2

92022-1344

$3.92

92037A

CLAMP

92037-2113

$1.03

92072

BAND,FUEL TANK

92072-0704

$14.66

92072A

BAND

92072-1438

$5.00

92075

DAMPER

92075-1882

$8.10

92161

DAMPER,FUEL TANK

92161-0794

$22.11

92161A

DAMPER,31.1X130X5

92161-0936

$4.68

92161B

DAMPER,38X105X7

92161-0948

$3.64

92161C

DAMPER,55X225X6.35

92161-1811

$14.57

92171

CLAMP

92171-0476

$3.90

92192B

TUBE,5X10.4X40/240

92192-1735

$40.30

92192C

TUBE,5X10.4X40/900

92192-1736

$93.40

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X50

130BA0650

$1.03
