Drive Shaft-Front(CCF)

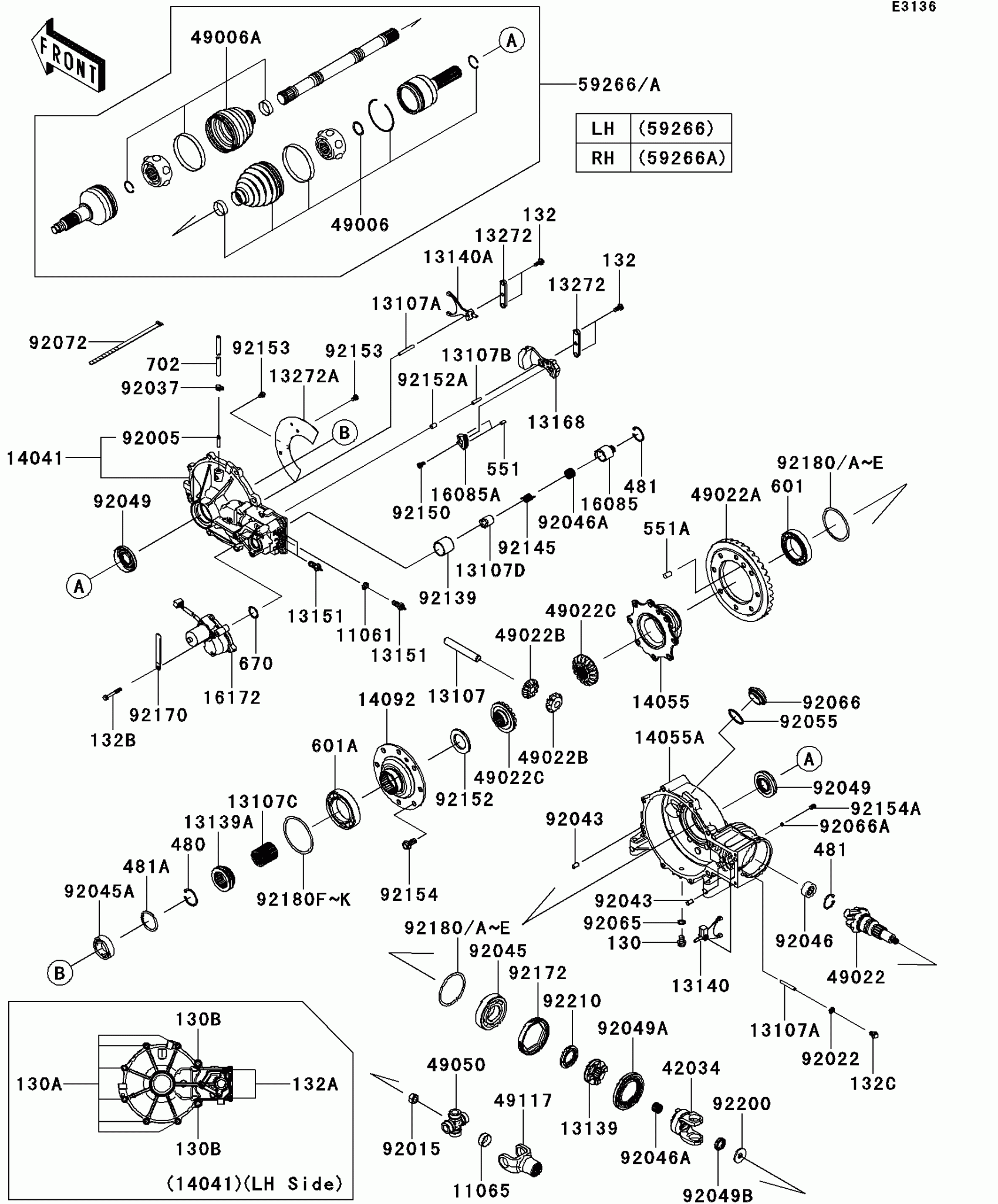

Kawasaki TERYX4™ 750 4x4 EPS LE Drive Shaft-Front(CCF) Diagram
#
11061
GASKET,10.5X16X3
11061-0805
$2.64
11065
CAP
11065-0073
$5.29
13107
SHAFT,CROSS
13107-0245
$30.45
13107A
SHAFT,6X43.7
13107-0246
$9.87
13107B
SHAFT,6X25.1
13107-0729
$9.31
13107C
SHAFT,29X38X43.5
13107-0746
$117.06
13107D
SHAFT
13107-0747
$98.88
13139
SHIFTER
13139-0017
$77.69
13139A
SHIFTER,DIFFERENTIAL LOCK
13139-0627
$76.19
13140
FORK-SHIFT
13140-0069
$36.14
13140A
FORK-SHIFT
13140-0070
$37.89
13151
SWITCH-COMP
13151-1086
$38.19
13168
LEVER
13168-0731
$94.84
13272
PLATE
13272-0985
$14.62
13272A
PLATE
13272-0986
$6.00
14041
COVER-COMP,LH
14041-0554
Unavailable
14055
CASE-GEAR,CROSS
14055-0052
$237.40
14055A
CASE-GEAR,RH
14055-0053
$232.92
14092
COVER,CROSS CASE
14092-0269
$187.35
16085
GEAR,13T
16085-0604
$122.36
16085A
GEAR,65T
16085-0605
$116.83
16172
ACTUATOR
16172-0025
Unavailable
42034
COUPLING
42034-0713
Unavailable
49006
BOOT,INSIDE
49006-0559
Unavailable
49006A
BOOT,OUTSIDE
49006-0563
$94.99
49022
GEAR-BEVEL,8T
49022-0066
$444.95
49022A
GEAR-BEVEL,35T
49022-0067
$432.87
49022B
GEAR-BEVEL,10T
49022-0068
$95.95
49022C
GEAR-BEVEL,16T
49022-0069
$162.49
49050
SPIDER
49050-0023
Unavailable
49117
YOKE
49117-0047
$101.83
59266
JOINT-BALL,LH
59266-0707
Unavailable
59266A
JOINT-BALL,RH
59266-0708
Unavailable
92005
FITTING
92005-1142
$7.60
92015
NUT,LOCK,12MM,BLACK
92015-1190
$7.34
92022
WASHER,8.2X14X1.0
92022-1488
$4.92
92037
CLAMP,TUBE
92037-1461
$3.88
92043
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,6307A11CG17A
92045-0167
$41.55
92045A
BEARING-BALL,60/28
92045-1176
$28.54
130
BOLT-FLANGED,10X14
130BA1014
$4.76
130A
BOLT-FLANGED,8X25
130CA0825
$1.46
130B
BOLT-FLANGED,10X30
130CA1030
$2.32
132
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
132A
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
132B
BOLT-FLANGED-SMALL,6X45
132BA0645
$4.45
92046
BEARING-NEEDLE,AJ501907
92046-0025
$35.70
92046A
BEARING-NEEDLE
92046-1234
$23.10
92049
SEAL-OIL,28X60X7
92049-0089
$16.97
92049A
SEAL-OIL,55X89X9
92049-0166
$18.77
92049B
SEAL-OIL,20X28X5
92049-0736
$8.21
92055
RING-O,35.8MM
92055-1281
$7.34
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG,36X7.5
92066-0744
$8.22
92066A
PLUG,6.2X3
92066-1272
$3.18
92072
BAND,L=218
92072-032
$5.00
92139
BUSHING,29X33X30
92139-0780
$24.93
92145
SPRING
92145-0907
$3.97
92150
BOLT,SOCKET,6X10
92150-1650
$4.31
92152
COLLAR,35X57.5X4.7
92152-1543
$32.34
92152A
COLLAR,6X8X12.1
92152-1600
$15.62
92153
BOLT,FLANGED-SMALL,6X8
92153-0964
$2.24
92154
BOLT,FLANGED,10X23
92154-0550
$3.74
92154A
BOLT,SET,SOCKET,8X12
92154-0876
$3.97
92170
CLAMP
92170-1925
$2.40
92172
SCREW,SET,85X12.5
92172-0509
Unavailable
92180
SHIM,70X80X0.15
92180-0301
Unavailable
92180A
SHIM,70X80X0.2
92180-0302
Unavailable
92180B
SHIM,70X80X0.5
92180-0303
Unavailable
92180C
SHIM,70X80X0.8
92180-0304
Unavailable
92180D
SHIM,70X80X1.0
92180-0305
Unavailable
92180E
SHIM,70X80X1.2
92180-0306
Unavailable
92180F
SHIM,80X90X0.15
92180-0307
Unavailable
92180G
SHIM,80X90X0.2
92180-0308
Unavailable
92180H
SHIM,80X90X0.5
92180-0309
Unavailable
92180I
SHIM,80X90X0.8
92180-0310
Unavailable
92180J
SHIM,80X90X1.0
92180-0311
Unavailable
92180K
SHIM,80X90X1.2
92180-0312
Unavailable
92200
WASHER,12X34X2.5
92200-0599
$3.97
92210
NUT,35MM
92210-0724
$125.18
132C
BOLT-FLANGED-SMALL,8X10
132BA0810
$4.32
480
CIRCLIP, 38MM
480J3800
$5.44
481
CIRCLIP-TYPE-C,32MM
481J3200
$2.68
481A
CIRCLIP-TYPE-C,52MM
481J5200
$4.96
551
PIN-DOWEL,4X10
551A0410
$0.65
551A
PIN-DOWEL
551A1016
$2.96
601
BEARING-BALL
601B6010
$43.73
601A
BEARING-BALL
601B6011
$54.98
670
O RING
670D3022
$2.80
702
TUBE-RUBBER,5X8X1375
702A051375
$14.29
