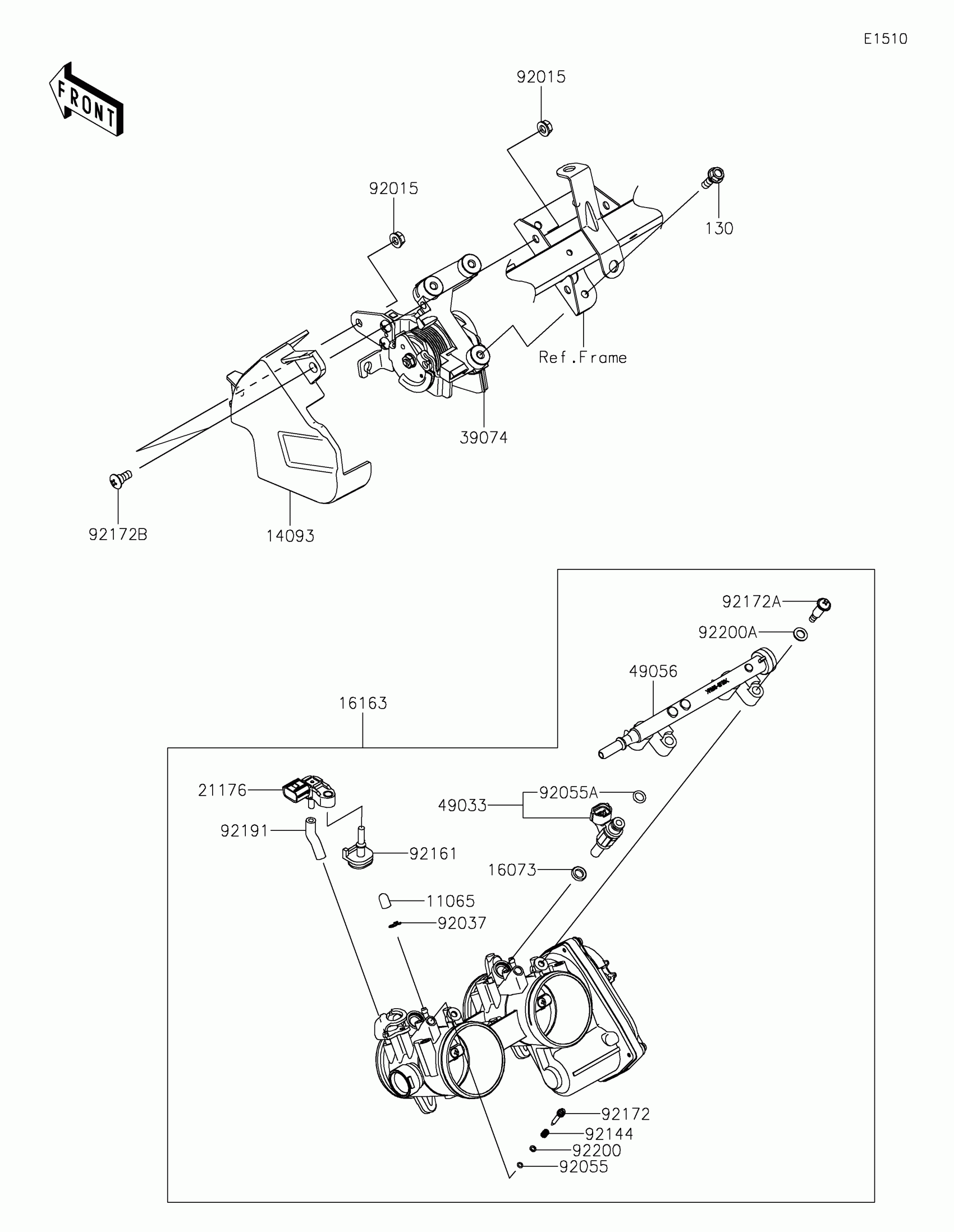

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Throttle Diagram

Description

Price

11065

CAP

11065-0072

$7.20

14093

COVER,APS

14093-0953

$5.26

16073

INSULATOR

16073-0848

$11.51

16163

THROTTLE-ASSY

16163-0991

$1,111.76

21176

SENSOR,PRESSURE

21176-0906

$222.28

39074

LEVER-ASSY-THROTTLE

39074-0004

$511.68

49033

NOZZLE-INJECTION

49033-0040

$135.41

49056

PIPE-INJECTION

49056-0564

$119.01

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-1124

$6.11

92055

RING-O

92055-0840

$2.06

92055A

RING-O,INJECTION NOZZLE

92055-0937

$9.93

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92161

DAMPER

92161-0673

$5.54

92172

SCREW

92172-0156

$15.20

92172A

SCREW,PIPE INJECTION

92172-0828

$3.02

92172B

SCREW,6X16

92172-1333

$2.32

92191

TUBE,3.2X7.4X40

92191-1551

$2.78

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

92200A

WASHER

92200-3807

$6.00

130

BOLT-FLANGED,6X20

130BA0620

$1.74
