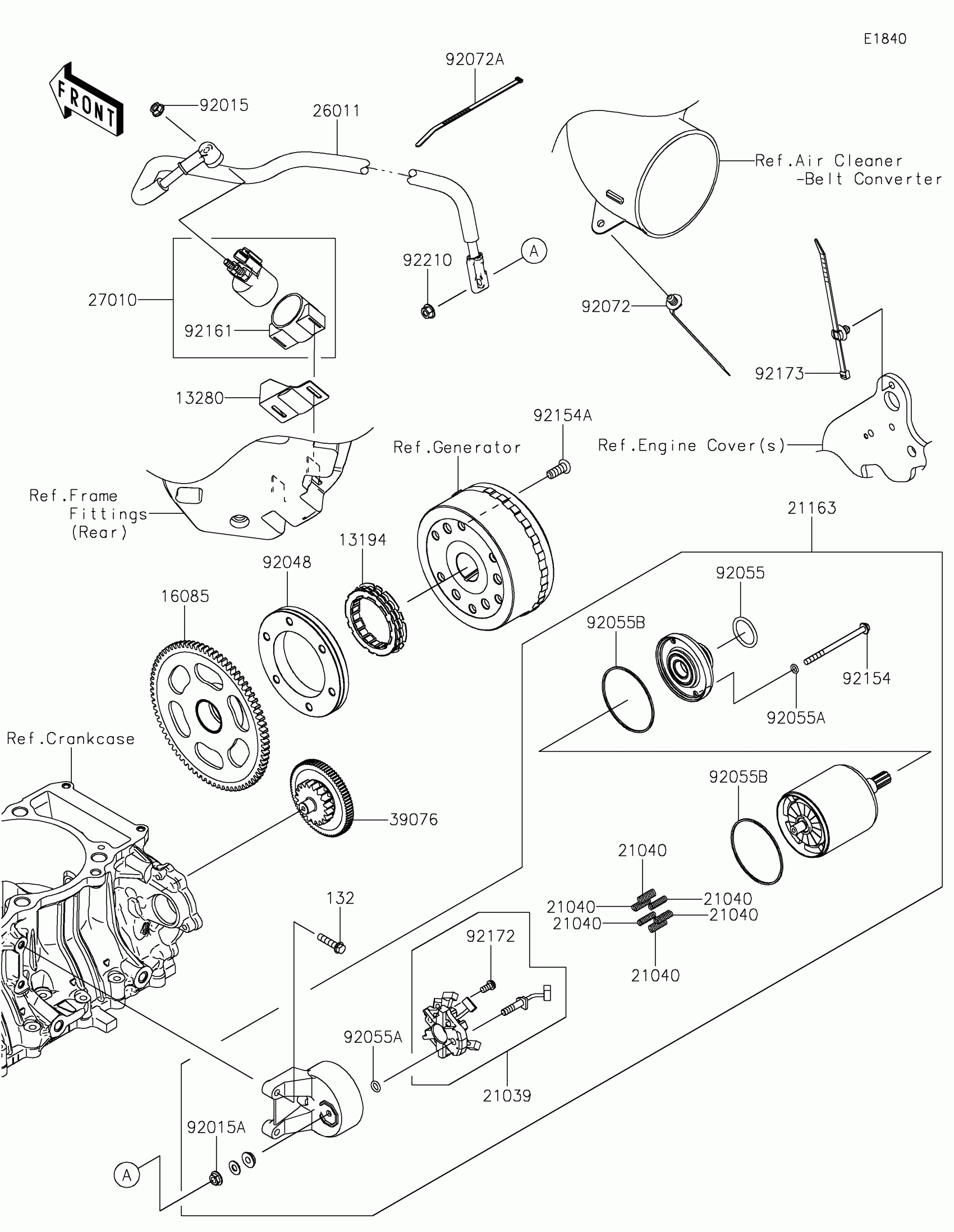

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Starter Motor Diagram

Description

Price

13194

CLUTCH-ONEWAY

13194-0021

$126.13

13280

HOLDER,MAGNETIC SWITCH

13280-0973

$2.67

16085

GEAR,76T

16085-0691

$207.11

21039

BRUSH

21039-0009

$42.60

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0786

$974.08

26011

WIRE-LEAD

26011-1914

$72.57

27010

SWITCH,MAGNETIC

27010-0766

$127.72

39076

LIMITER

39076-0039

$241.75

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92048

RACE

92048-0041

$51.06

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072A

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT

92154-0265

$7.24

92154A

BOLT,TORX,8X20

92154-0421

$4.72

92161

DAMPER,MAGNETIC SWITCH

92161-1722

$19.64

92172

SCREW

92172-0334

$4.65

92173

CLAMP

92173-2188

$0.82

92210

NUT,6MM

92210-0188

$2.15

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80
