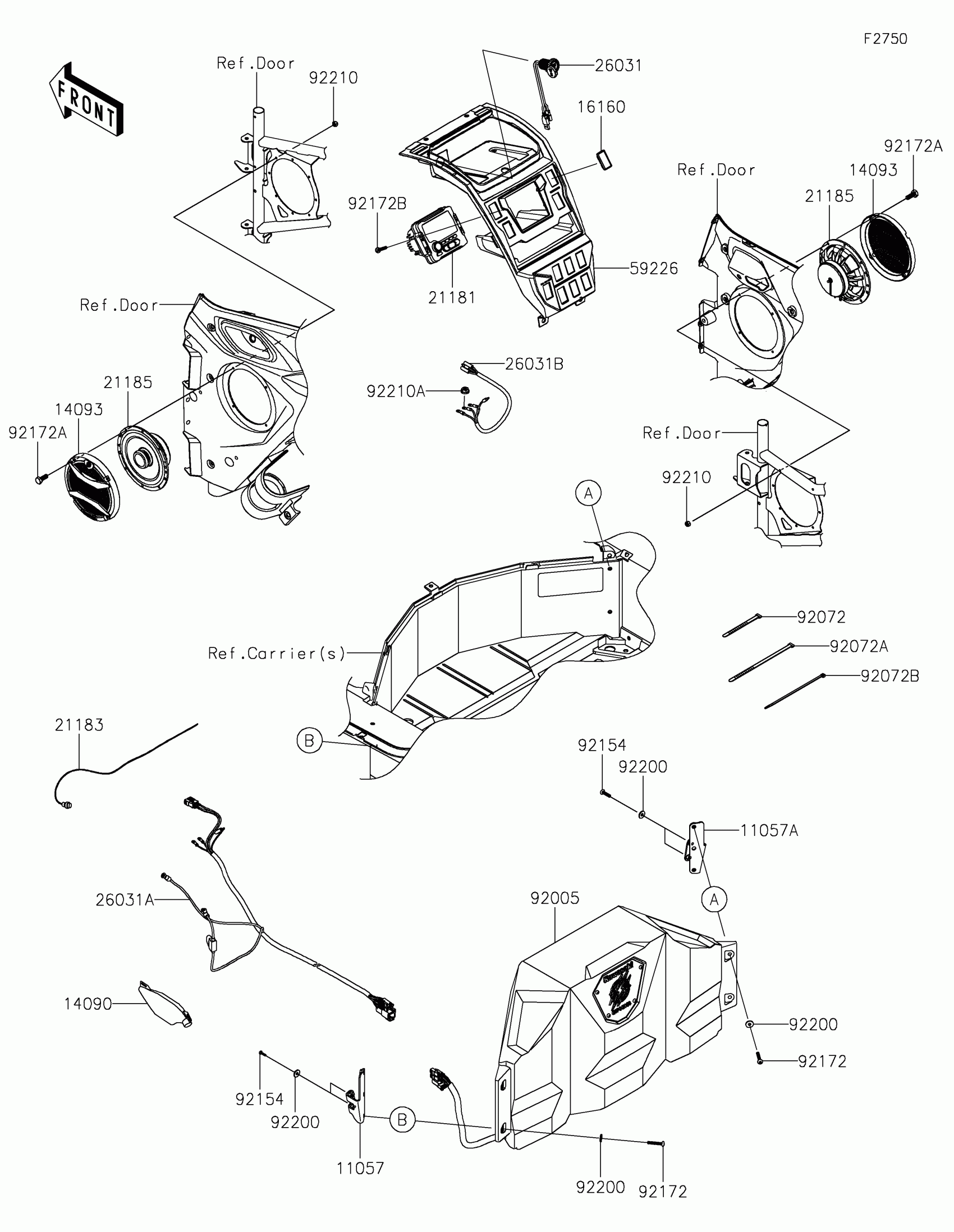

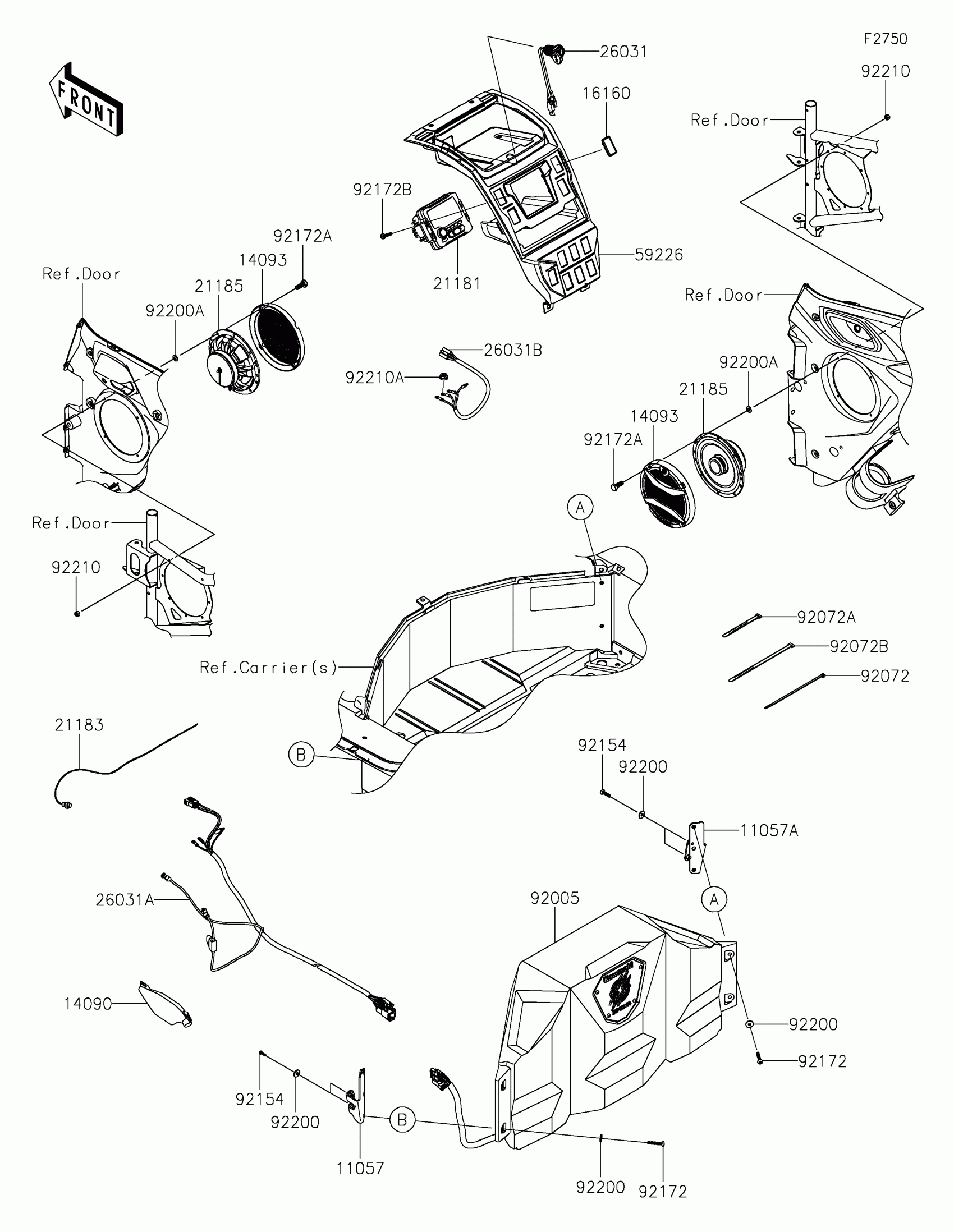

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Other(Audio System) Diagram

Description

Price

11057

BRACKET,SUBWOOFER,LH

11057-4017

$34.51

11057A

BRACKET,SUBWOOFER,RH

11057-4018

$34.51

14090

COVER,COUPLER

14090-1611

$8.51

14093

COVER,SPEAKER GRILL

14093-1058

$34.20

16160

BODY,SWITCH COVER

16160-0811

$2.66

21181

AMPLIFIER,RADIO

21181-0019

$525.38

21183

ANTENNA,AM/FM RADIO

21183-0016

$7.03

21185

SPEAKER

21185-0015

$85.34

26031

HARNESS,USB

26031-2812

$42.37

26031A

HARNESS,MAIN,AUDIO

26031-2813

$198.07

26031B

HARNESS,RADIO

26031-2814

$15.05

59226

PANEL-CONTROL,DASH COVER

59226-0750

$110.43

92005

FITTING,SUBWOOFER ENCLOSURE

92005-1417

$1,127.02

92072

BAND,L=200

92072-0106

$5.65

92072A

BAND,L=123

92072-030

$5.00

92072B

BAND,L=218

92072-032

$5.00

92154

BOLT,6X16

92154-4102

$2.97

92172

SCREW,6X35

92172-1351

$1.39

92172A

SCREW,4X25

92172-1355

$2.97

92172B

SCREW

92172-1357

$1.54

92200

WASHER,6.5X18X1.5

92200-2337

$1.36

92200A

WASHER

92200-2343

$1.17

92210

NUT,M4

92210-1785

$1.54

92210A

NUT,FLANGED

92210-1807

$3.12
