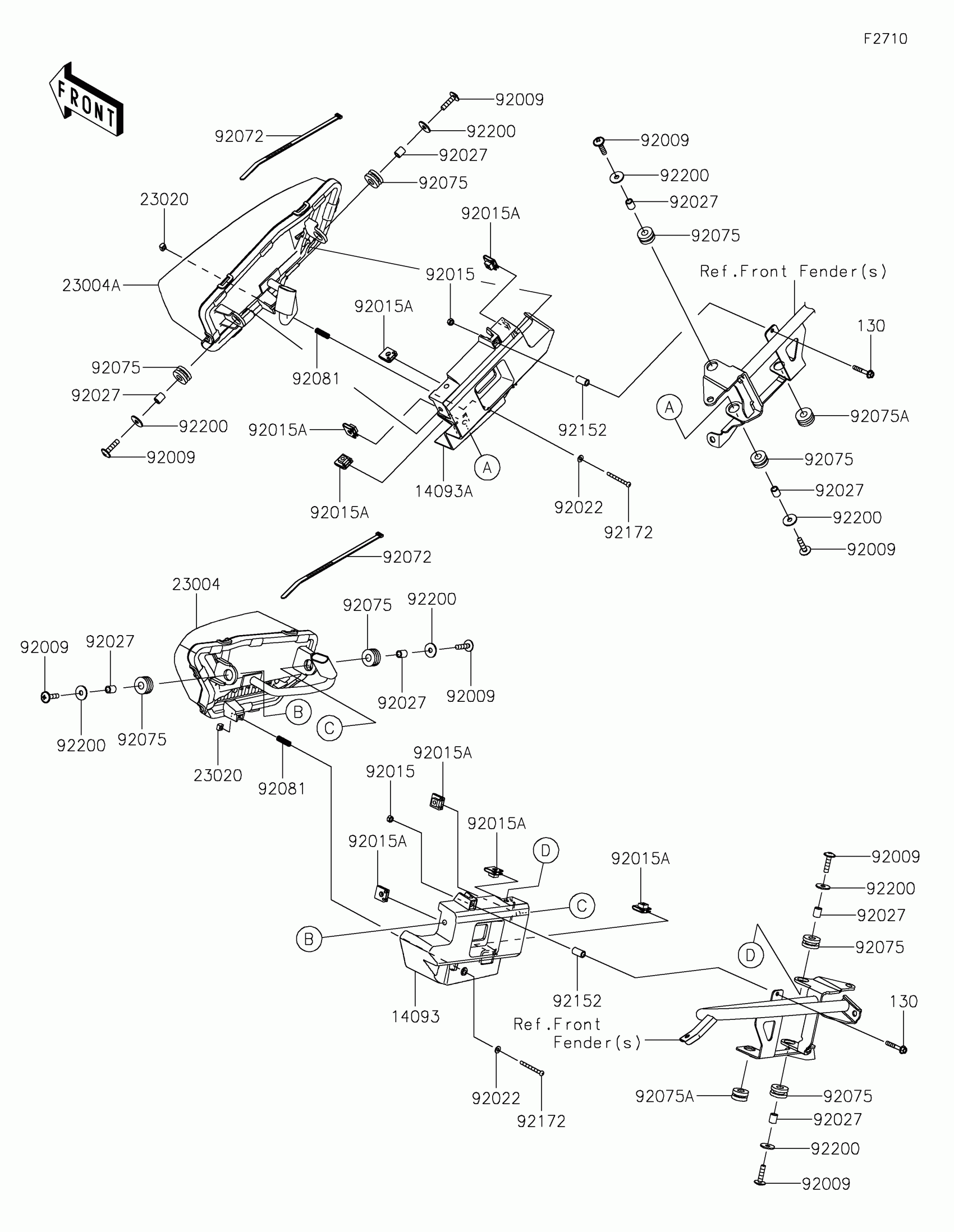

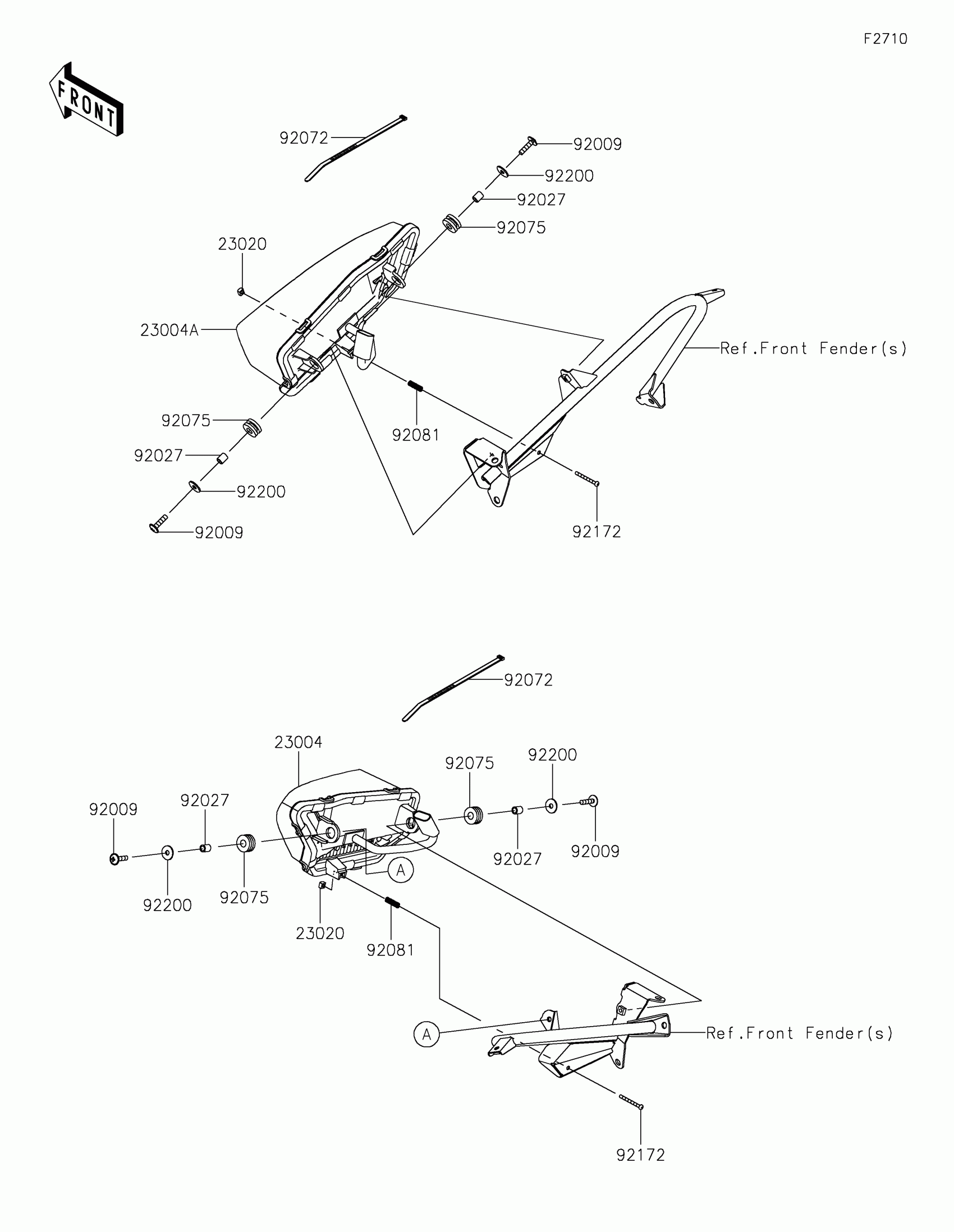

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Headlight(s) Diagram

Description

Price

14093

COVER,HEAD LAMP,LH

14093-0868

$20.98

14093A

COVER,HEAD LAMP,RH

14093-0869

$20.98

23004

LAMP-HEAD,LH,LED

23004-0392

$366.07

23004A

LAMP-HEAD,RH,LED

23004-0393

$366.07

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92009

SCREW,6X25

92009-1465

$3.92

92015

NUT,LOCK,5MM

92015-1221

$6.22

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER

92022-563

$1.13

92027

COLLAR,6.8X10X12

92027-162

$6.57

92072

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER RUBBER,RR FENR

92075-209

$4.69

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92152

COLLAR,6.2X9.5X17

92152-2693

$3.71

92172

SCREW,4X40

92172-1092

$0.85

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

130

BOLT-FLANGED,5X30

130BA0530

$3.53
