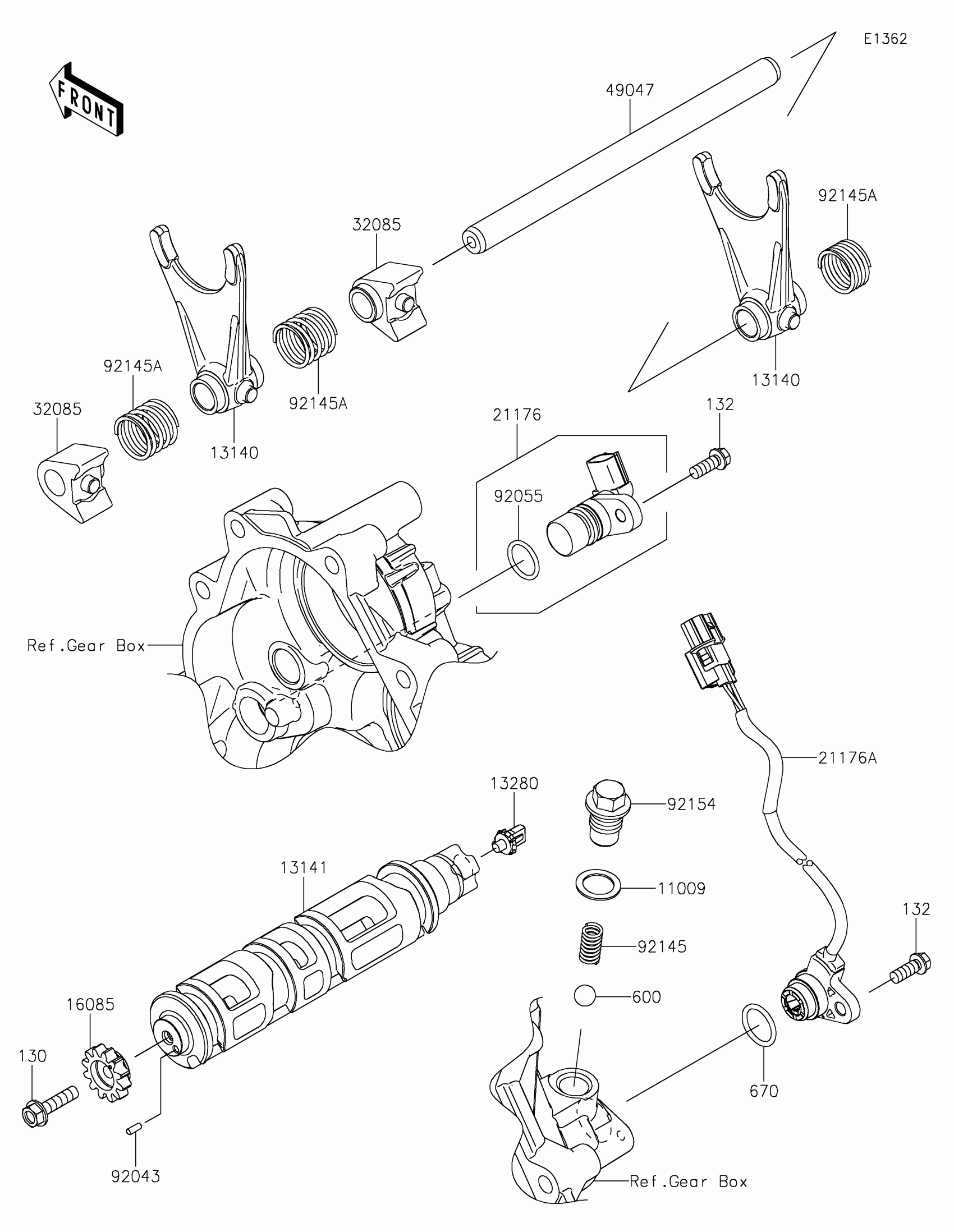

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$3.63

13140

FORK-SHIFT

13140-0693

$56.96

13141

DRUM-CHANGE

13141-0601

$260.31

13280

HOLDER

13280-0932

$9.87

16085

GEAR,12T

16085-0681

$55.02

21176

SENSOR,SPEED

21176-0891

$92.95

21176A

SENSOR,GEAR POSITION

21176-0910

$208.26

32085

STOPPER

32085-0844

$82.80

49047

ROD-SHIFT

49047-0641

$73.15

92043

PIN,3X8

92043-1716

$0.64

92055

RING-O

92055-1639

$3.09

92145

SPRING

92145-1590

$3.60

92145A

SPRING

92145-1836

Unavailable

92154

BOLT,CHANGE POSITION

92154-1366

$16.25

130

BOLT-FLANGED,6X25

130CA0625

$4.45

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

600

BALL-STEEL,13/32"

600A1300

$0.94

670

O RING,18MM

670D2018

$1.91
