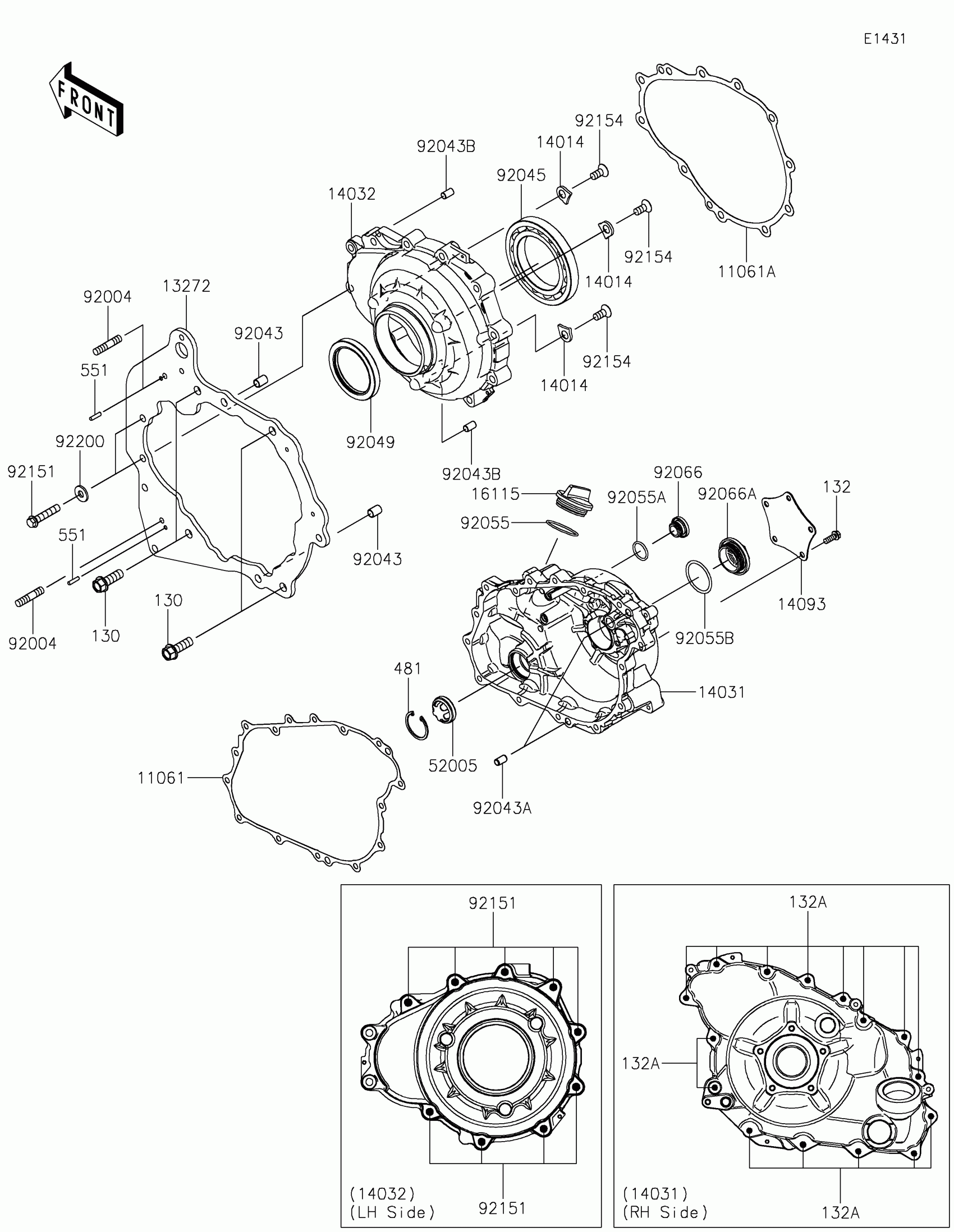

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Engine Cover(s) Diagram

Description

Price

11061

GASKET,GENERATOR COVER

11061-1304

$25.76

11061A

GASKET,CLUTCH COVER

11061-1305

$25.76

13272

PLATE,CLUTCH COVER,BACK

13272-2799

$544.12

14014

PLATE-POSITION

14014-0556

$4.41

14031

COVER-GENERATOR

14031-0639

$196.44

14032

COVER-CLUTCH

14032-0646

$167.11

14093

COVER,GENERATOR,OUTER

14093-0794

$6.70

16115

CAP-OIL FILLER

16115-1064

$7.77

52005

GAUGE,OIL

52005-0766

$23.08

92004

STUD,8X30

92004-0790

$3.02

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,6.2X8X14

92043-1263

$0.43

92043B

PIN,8X14

92043-1567

$2.26

92045

BEARING-BALL,16014CS45

92045-0709

$86.33

92049

SEAL-OIL,HTC 59X77X9

92049-0820

$34.11

92055

RING-O,37.2X1.9

92055-0959

$7.60

92055A

RING-O,20X2

92055-1146

$8.58

92055B

RING-O,35.8MM

92055-1281

$7.34

92066

PLUG,COVER

92066-0011

$15.94

92066A

PLUG,36X7.5

92066-0744

$8.22

92151

BOLT,8X40

92151-1621

$2.67

92154

BOLT,FLAT,8X13.6

92154-0978

$4.41

92200

WASHER,8.5X18X2.3

92200-1213

$2.64

130

BOLT-FLANGED,10X30

130BA1030

$5.25

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

481

CIRCLIP

481J3400

$1.11

551

PIN-DOWEL,4X16

551A0416

$0.70
