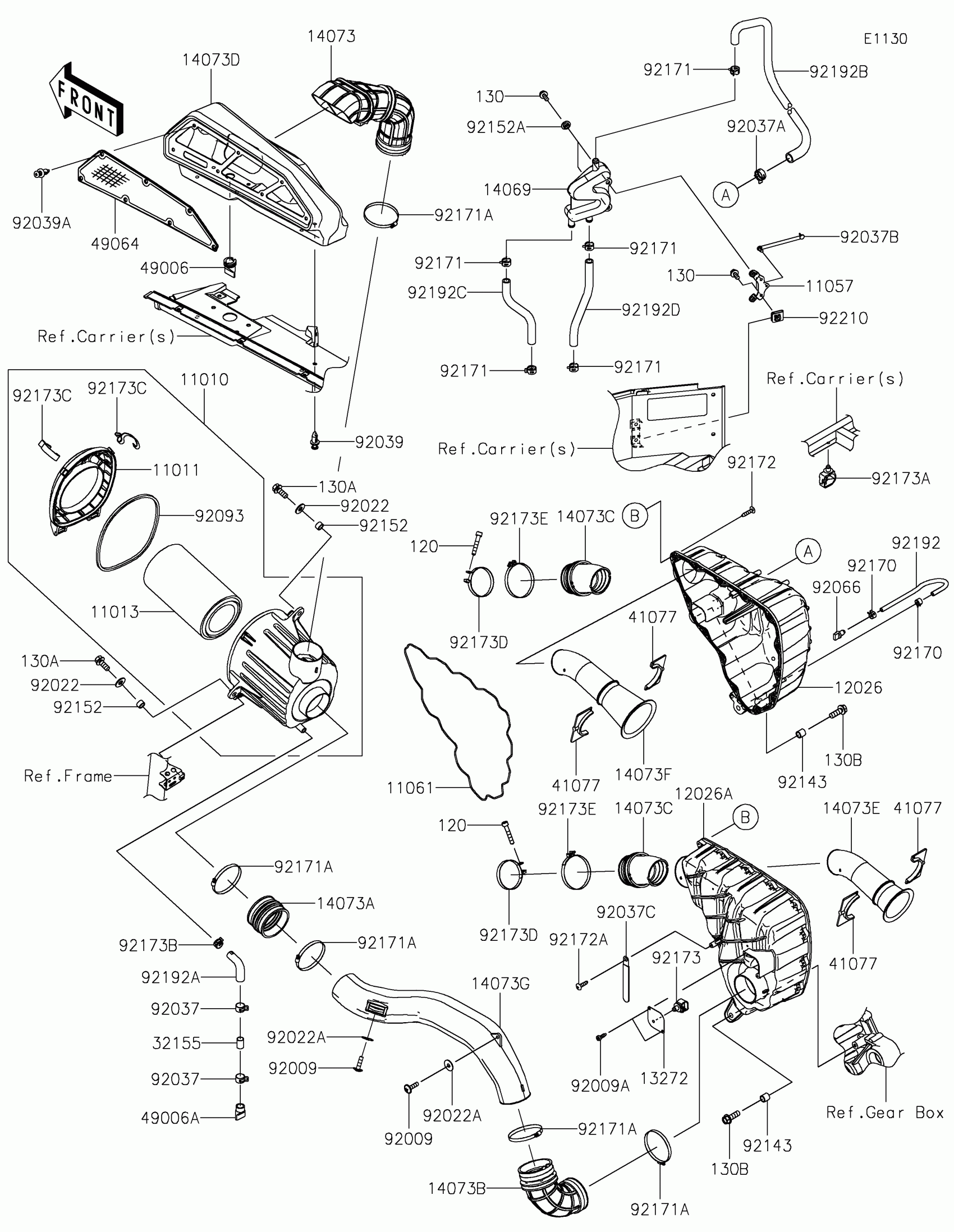

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Air Cleaner Diagram
#
11010
FILTER-ASSY-AIR
11010-0900
$158.07
11011
CASE-AIR FILTER,UPP
11011-0905
$13.41
11013
ELEMENT-AIR FILTER
11013-0782
$68.85
11057
BRACKET,BREATHER
11057-2431
$6.21
11061
GASKET,CHAMBER
11061-1312
$9.50
12026
CHAMBER,RH
12026-0019
$35.60
12026A
CHAMBER,LH
12026-0020
$36.71
13272
PLATE,TEMP SENSOR
13272-2711
$0.95
14069
BREATHER
14069-0032
$38.90
14073
DUCT,INTAKE,DIRTYSIDE
14073-0922
$42.19
14073A
DUCT,A/F CASE
14073-0923
$5.38
14073B
DUCT,CHAMBER
14073-0925
$13.51
14073C
DUCT,CHAMBER-THROTTLE
14073-0931
$11.64
14073D
DUCT,INTAKE,DIRTYSIDE BOX
14073-0954
$41.84
14073E
DUCT,INTAKE,#1 CYLINDER
14073-0956
$18.22
14073F
DUCT,INTAKE,#2 CYLINDER
14073-0957
$19.12
14073G
DUCT,A/F CASE-CHAMBER
14073-0963
$36.08
32155
PIPE,DRAIN
32155-4087
$6.30
41077
ADAPTER
41077-0737
$2.12
49006
BOOT
49006-0633
$2.21
49006A
BOOT
49006-1292
$7.77
49064
FILTER-AIR
49064-0012
$39.04
92009
SCREW,6X22
92009-1441
$4.31
92009A
SCREW,TAPPING,5X16
92009-1984
$2.58
92022
WASHER,8.5X20X1.6
92022-1561
$4.31
92022A
WASHER,PLAIN,6.5X20X1
92022-165
$3.74
92037
CLAMP,HOSE CLIP
92037-1460
$10.81
92037A
CLAMP
92037-1594
$6.30
92037B
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92037C
CLAMP
92037-1993
$5.52
92039
RIVET
92039-0776
$1.19
92039A
RIVET,TWO-PIECE CLIP
92039-0818
$1.59
92066
PLUG,DRAIN
92066-0782
$10.34
92093
SEAL,AIR FILTER CASE
92093-0726
$5.91
92143
COLLAR,8.8X12X11.5
92143-1340
$4.69
92152
COLLAR,8.8X12.3X6.9
92152-1853
$3.63
92152A
COLLAR,6.5X10X5.3
92152-1863
$6.52
92170
CLAMP
92170-2042
$1.30
92171
CLAMP
92171-0329
$8.89
92171A
CLAMP
92171-1383
$4.40
92172
SCREW,TAPPING,5X25
92172-0432
$1.78
92172A
SCREW,TAPPING,5X20
92172-0483
Unavailable
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP
92173-0861
$3.02
92173B
CLAMP
92173-1463
$1.97
92173C
CLAMP,AIR FILTER CASE
92173-2023
$3.76
92173D
CLAMP,74MM
92173-2219
$6.28
92173E
CLAMP,88MM
92173-2256
$10.44
92192
TUBE,7X10X310
92192-1955
$5.03
92192A
TUBE,DRAIN
92192-2312
$2.87
92192B
TUBE,BREATHER-CHAMBER
92192-2337
$24.68
92192C
TUBE,CYL.HEAD,RH-BREATHER,LH
92192-2338
$9.72
92192D
TUBE,CYL.HEAD,LH-BREATHER,RH
92192-2339
$11.30
92210
NUT,CLIP,6MM
92210-1768
$4.37
120
BOLT-SOCKET,6X35
120CA0635
$2.06
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,8X20
130BA0820
$4.14
130B
BOLT-FLANGED,8X25
130BA0825
$2.95
