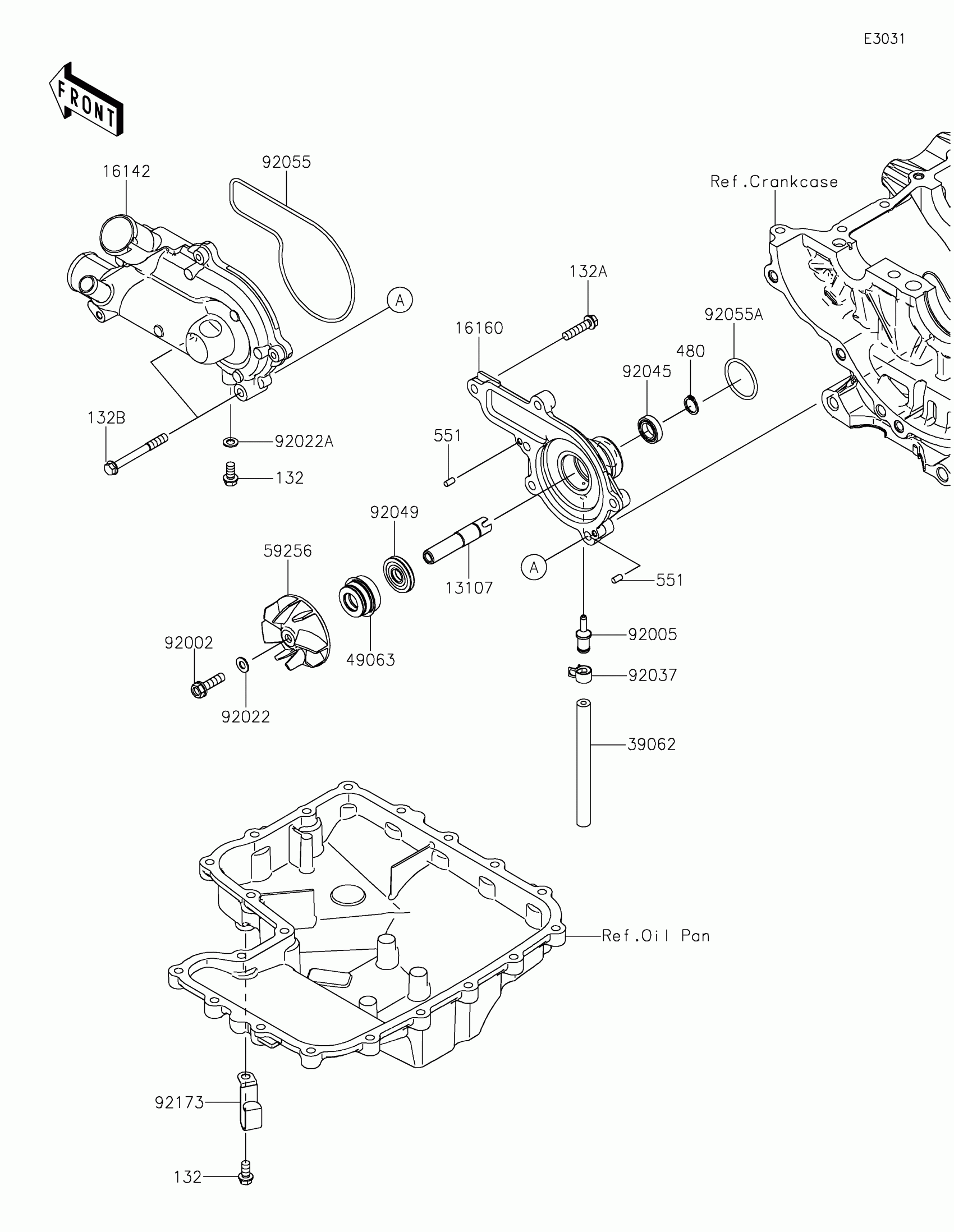

Kawasaki TERYX KRX® 1000 LIFTED EDITION Water Pump Diagram

Description

Price

13107

SHAFT,WATER PUMP BODY

13107-0894

$20.55

16142

COVER-PUMP,WATER

16142-0756

$129.98

16160

BODY,WATER PUMP

16160-0833

$189.80

39062

HOSE-COOLING,7.5X10.5X280

39062-1949

$9.87

49063

SEAL-MECHANICAL

49063-1055

$20.06

59256

IMPELLER

59256-0017

$42.34

92002

BOLT,6X22

92002-1154

$4.69

92005

FITTING

92005-1482

$23.35

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP

92037-2113

$1.03

92045

BEARING-BALL,6801

92045-0971

$18.10

92049

SEAL-OIL

92049-0778

$28.98

92055

RING-O,WATER PUMP COVER

92055-0921

$12.95

92055A

RING-O,28.7X2.4

92055-0922

$4.67

92173

CLAMP

92173-2336

$2.62

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132B

BOLT-FLANGED-SMALL,6X55

132BA0655

$2.80

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

551

PIN-DOWEL,4X8

551A0408

$0.78
