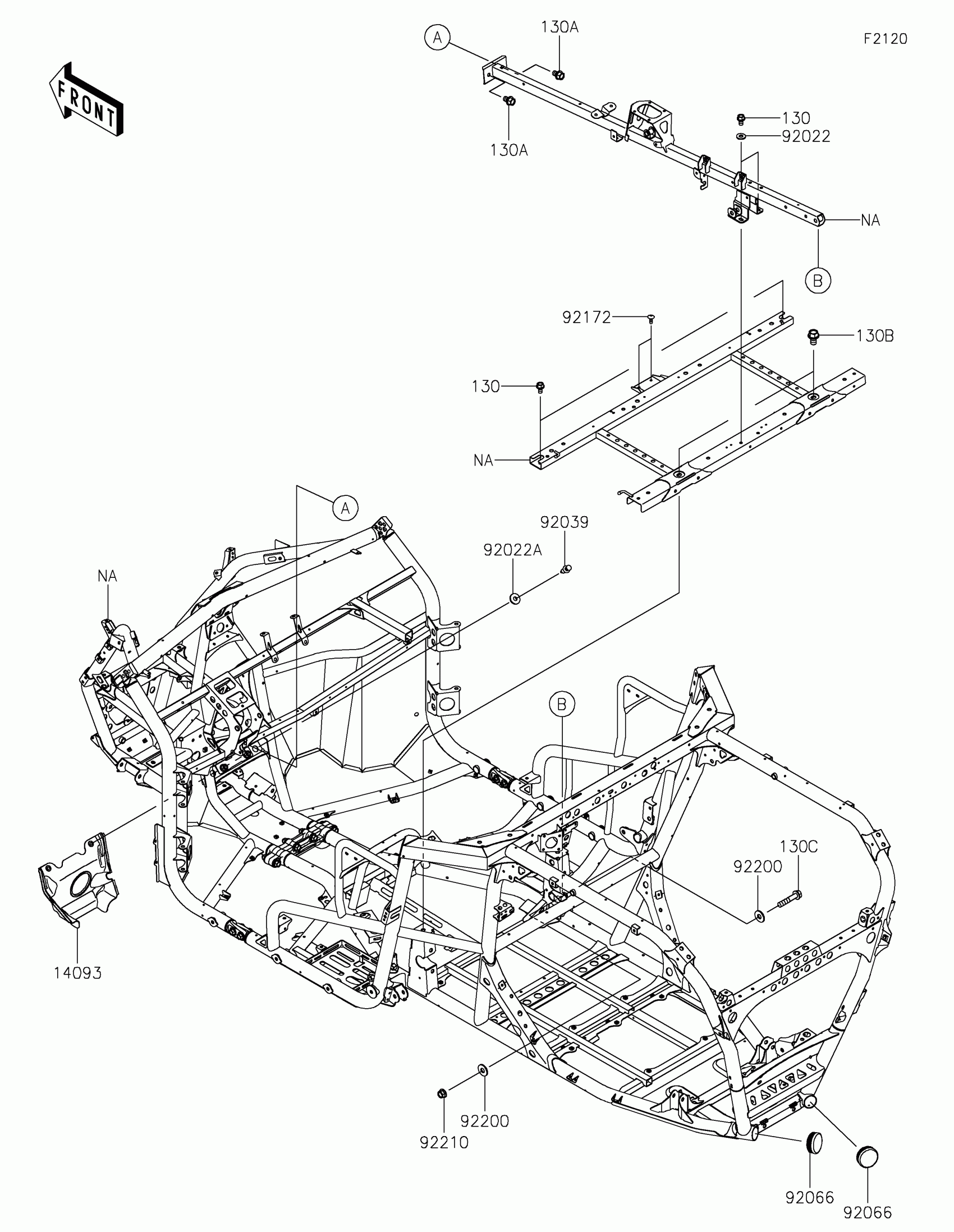

Kawasaki TERYX KRX® 1000 LIFTED EDITION Frame Diagram

Description

Price

14093

COVER,PROPELLER SHAFT

14093-1009

$9.57

92022

WASHER,8.2X19X2

92022-1533

$5.52

92022A

WASHER,8.4X23X2.5

92022-3744

$4.18

92039

RIVET

92039-0776

$1.19

92066

PLUG,RR END

92066-0926

$1.24

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92200

WASHER,11X26X2.6

92200-0352

$3.39

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,10X16

130BA1016

$4.76

130B

BOLT-FLANGED,12X20

130BA1220

$3.74

130C

BOLT-FLANGED,10X50

130CA1050

$3.71
