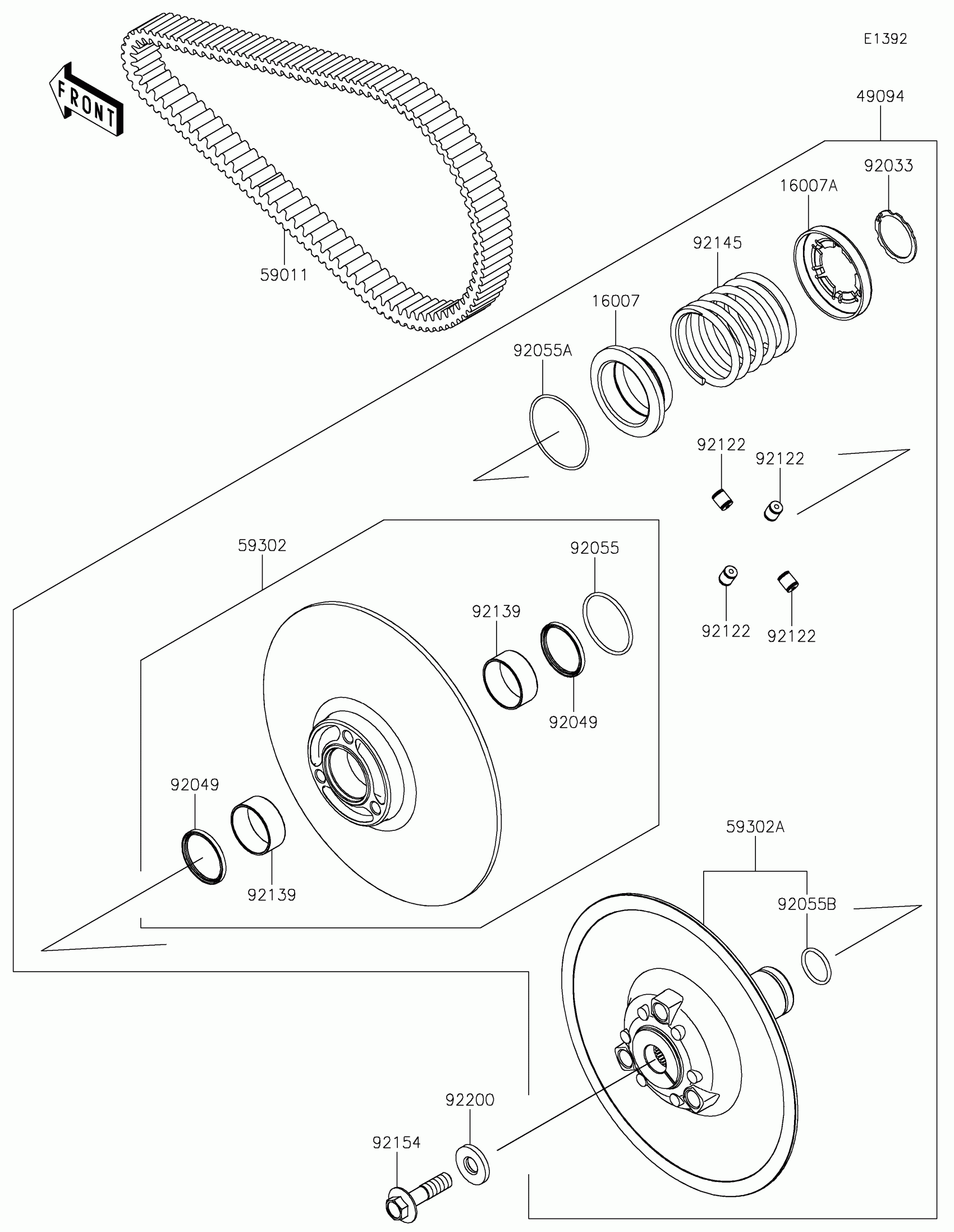

Kawasaki TERYX KRX® 1000 LIFTED EDITION Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0754

$18.60

16007A

SEAT-SPRING,FIXED

16007-0755

$19.32

49094

CONVERTER-ASSY-DRIVEN

49094-0107

$894.68

59011

BELT,CVT

59011-0068

$219.94

59302

SHEAVE-COMP,MOVABLE

59302-0104

$456.73

59302A

SHEAVE-COMP,FIXED

59302-0109

$456.73

92033

RING-SNAP,41.5MM

92033-0801

$2.55

92049

SEAL-OIL,GD45X52X4 V1

92049-0821

$13.30

92055

RING-O,54.4X3.1

92055-0924

$4.39

92055A

RING-O,68.2X2.4

92055-0925

$4.39

92055B

RING-O,29X3.1

92055-0926

$4.08

92122

ROLLER

92122-0571

$27.12

92139

BUSHING

92139-0936

$28.67

92145

SPRING

92145-1856

$80.12

92154

BOLT,14X55

92154-3920

$20.86

92200

WASHER

92200-2389

$9.47
