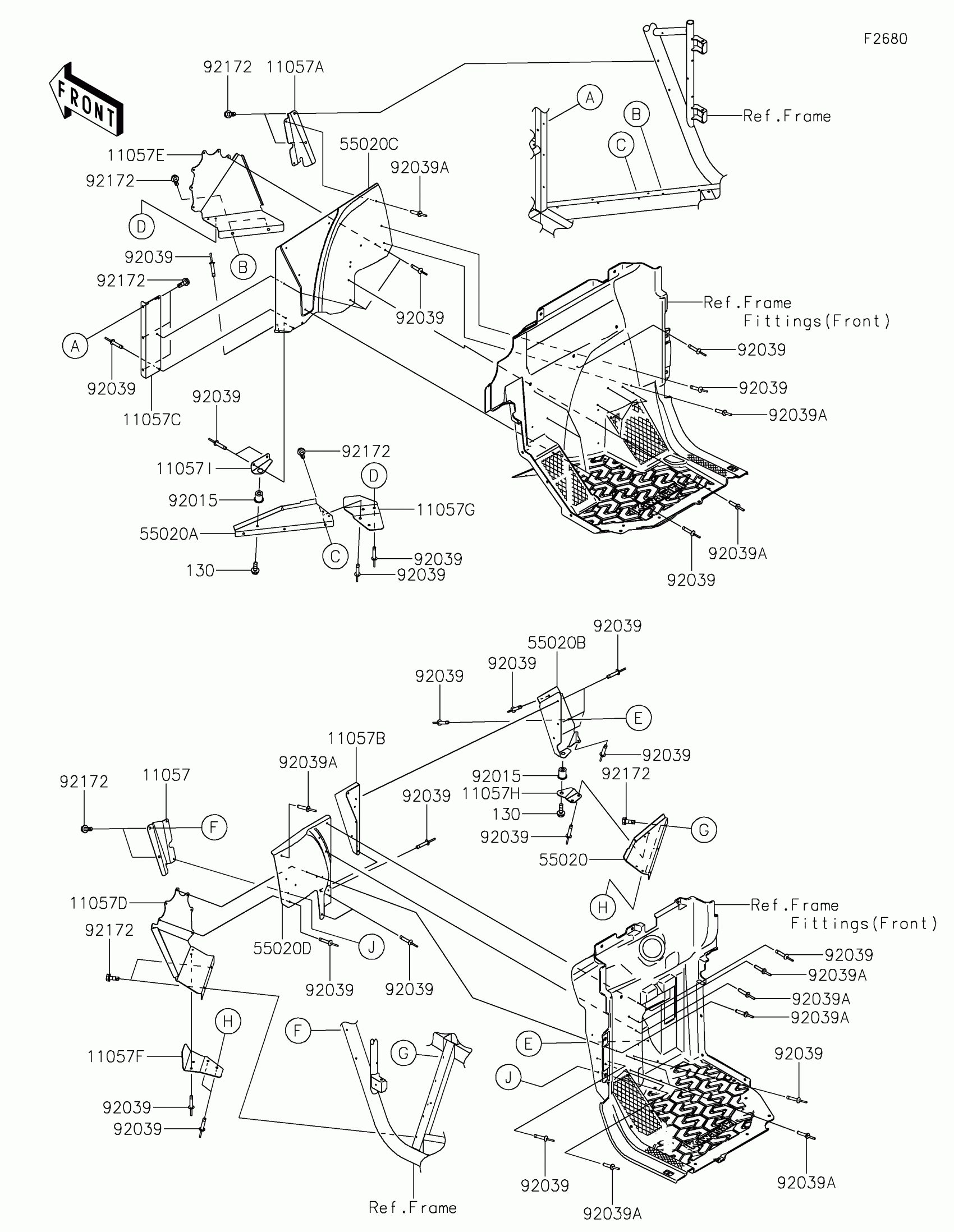

Kawasaki TERYX® Guard(s)(FGF/FHF) Diagram

Description

Price

11057

BRACKET

11057-0343

$7.66

11057A

BRACKET

11057-0344

$7.94

11057B

BRACKET

11057-0345

$7.15

11057C

BRACKET

11057-0346

$5.90

11057D

BRACKET

11057-0347

$15.13

11057E

BRACKET

11057-0348

$15.13

11057F

BRACKET

11057-0349

$3.71

11057G

BRACKET

11057-0350

$3.71

11057H

BRACKET

11057-0351

$2.55

11057I

BRACKET

11057-0352

$2.49

55020

GUARD,FLOOR,LH,IN

55020-1978

$23.95

55020A

GUARD,FLOOR,RH,IN

55020-1979

$23.95

55020B

GUARD,FLOOR COVER

55020-1981

$16.74

55020C

GUARD,FLOOR COVER

55020-1982

$72.74

55020D

GUARD,FLOOR COVER

55020-1983

$59.98

92015

NUT

92015-1700

$8.58

92039

RIVET,4.8X23.3

92039-0772

$1.86

92039A

RIVET

92039-3778

$0.95

92172

SCREW,TAPPING,6X16

92172-0869

$1.48

130

BOLT-FLANGED,6X18

130BA0618

$1.54
