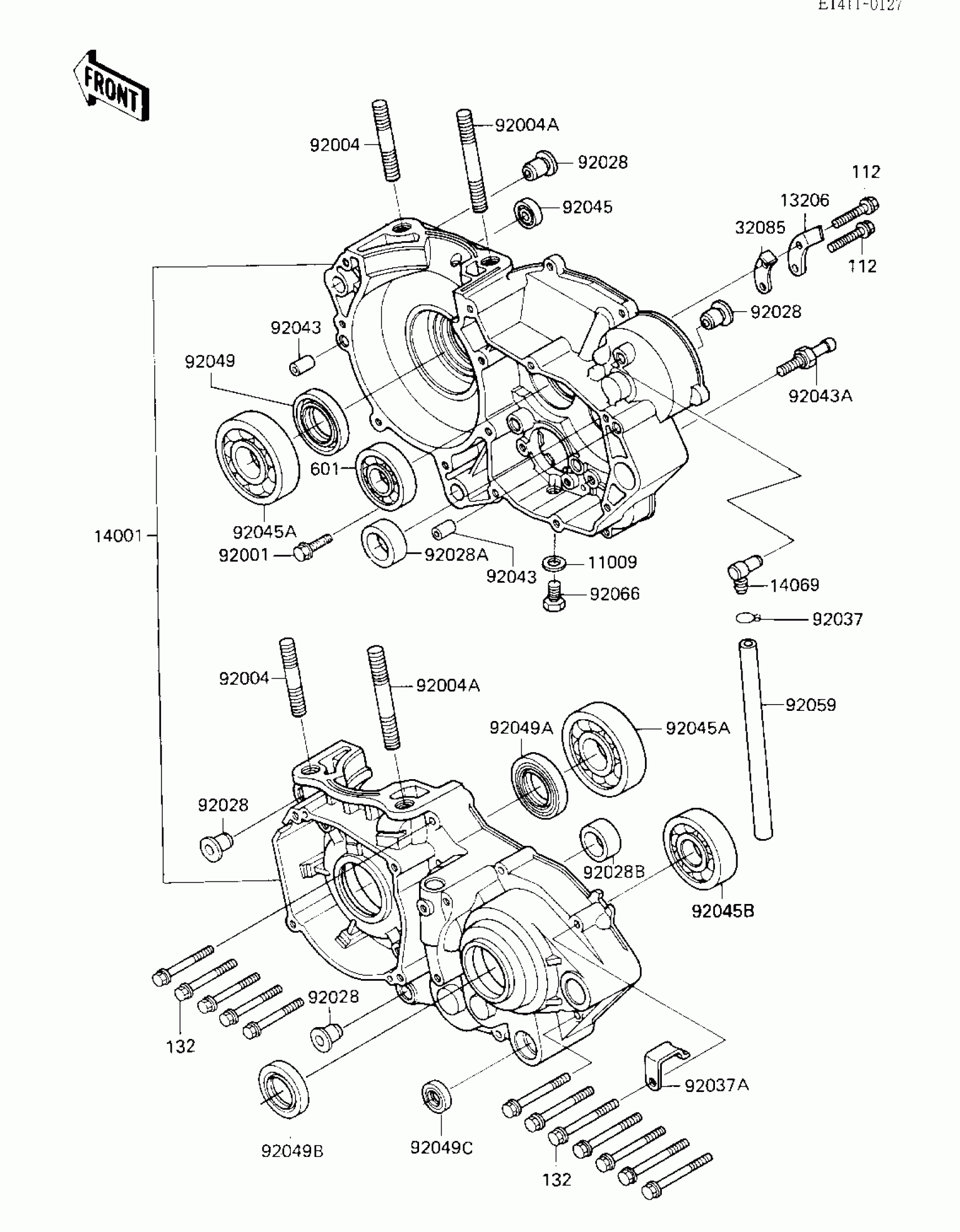

Kawasaki Tecate CRANKCASE ('84 A1) Diagram
#
Description
Price
11009
GASKET,10.5X16X1
92065-058
$3.96
13206
GUIDE-KICK
13206-1052
$10.90
14001
SET-CRANKCASE
14001-5152
Unavailable
14069
BREATHER
14069-003
$10.29
32085
STOPPER,KICKSTARTER
32085-1016
$9.58
92001
BOLT,W/WASHER,6X14
92001-1829
$3.92
92004
STUD,10X35
92004-1063
Unavailable
92004A
STUD,10X45
92004-1065
Unavailable
92028
BUSHING
92028-1133
Unavailable
92028A
BUSHING,26X35X14
92028-131
$38.06
92028B
BUSHING,23X30X13
92028-132
$38.06
92037
CLAMP,TUBE
92037-010
$3.92
92037A
CLAMP,HARNESS
92037-1318
$7.34
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043A
PIN,CHANGE PEDAL
92043-1055
Unavailable
92045
BEARING-BALL
92045-1211
$11.88
92045A
BEARING,BALL,#6305SH
92045-1024
Unavailable
92045B
BEARING-BALL,6205
92045-1115
$25.87
92049
SEAL-OIL,TCJ25457
92049-1051
$36.79
92049A
SEAL-OIL,TCJ20407
92049-1052
$31.73
92049B
SEAL-OIL,TB3040
92050-033
$21.74
92049C
SEAL-OIL,TB13225.5
92051-005
$7.74
92059
TUBE,6X9X750
92059-1372
$18.63
92066
PLUG,DRAIN,10X12
92067-001
$4.41
112
BOLT-UPSET
112G0618
$1.01
132
BOLT-FLANGED-SMALL,6X40
132G0640
$4.15
601
BEARING-BALL,#6204C3
601B6204
$13.65
