06- Frame - System

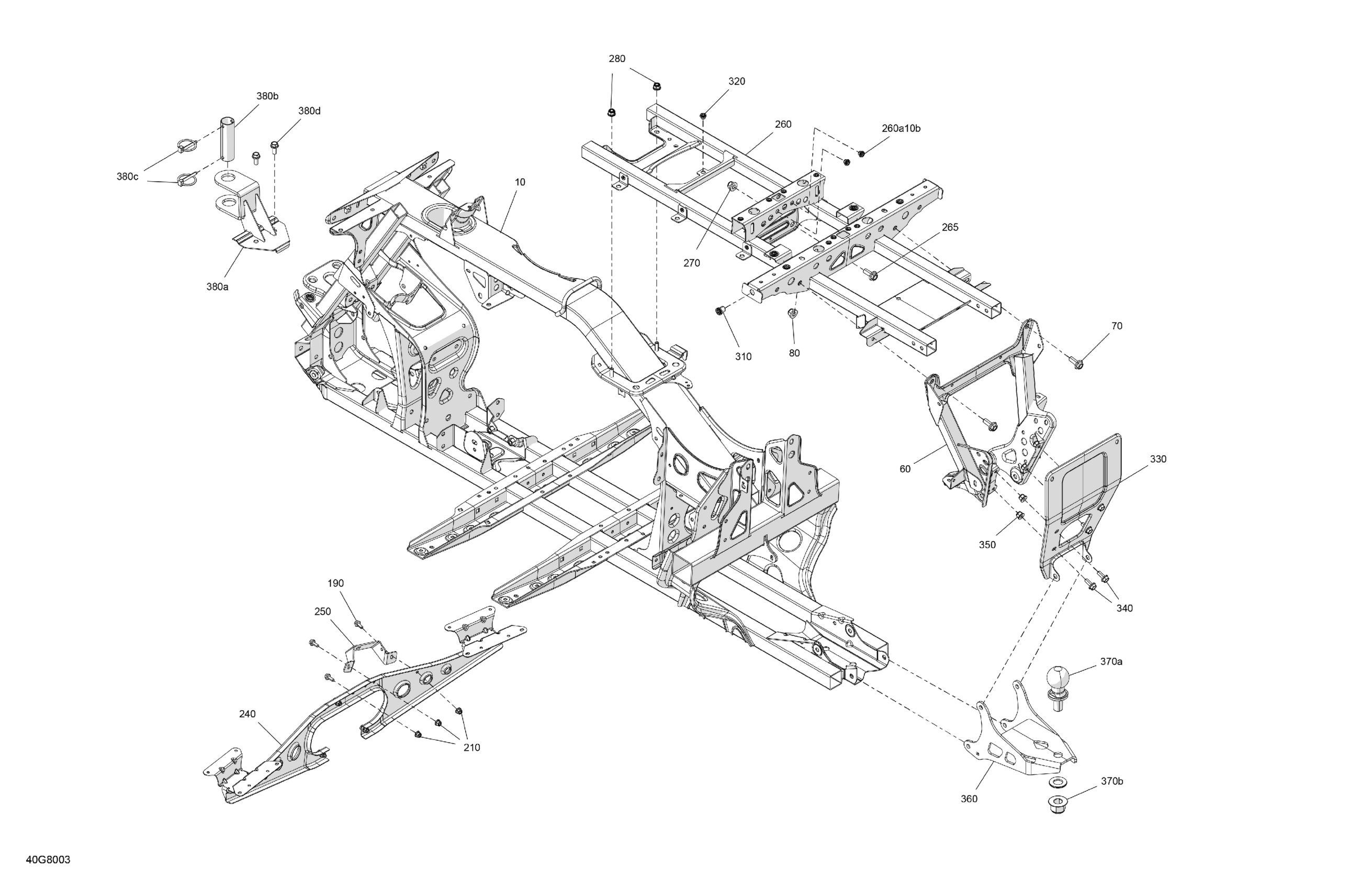

Can-Am T Regulation - OUTLANDER MAX - 4X4 - XT - 570 EFI - 2GJE - Pur Magnesium, 2018 06- Frame - System Diagram
#
Description
Price
10
Black Frame | Outlander Max
705206363
Unavailable
60
Rear Pillar
705210818
Unavailable
70
Hex. Flange Screw M10 X 25
207602546
Unavailable
80
Hex. Flange Elastic Nut M10
233201436
Unavailable
190
Hex. Flange Screw M6 X 16
207661644
Unavailable
210
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
240
Footrest Support
705210817
Unavailable
250
Master Cylinder Bracket
705203874
Unavailable
260
Chassis Extension
705210820
Unavailable
260a10b
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
265
Hex. Flange Screw M10 X 25
207602546
Unavailable
270
Hex. Flange Elastic Nut M10
233201436
Unavailable
280
Hex. Flange Elastic Nut M8
233281414
Unavailable
310
Insert Half Hex Body M8 x 1.25
293450307
Unavailable
320
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
330
Rear Support
705203541
Unavailable
340
Hex. Flange Screw M8 X 20
207682046
Unavailable
350
Hex. Elastic Flange Nut M8
233281416
Unavailable
360
Black Trailer Hitch Kit
715001925
Unavailable
370a
Coupling Ball Ass'y
705204974
Unavailable
370b
Elastic Flange Nut M20
250100104
Unavailable
380a
Front Coupling Device
705204970
Unavailable
380b
Pin
605456511
Unavailable
380c
Pin
605456518
Unavailable
380d
Hex. Flange Screw M8 X 20
207682046
Unavailable
