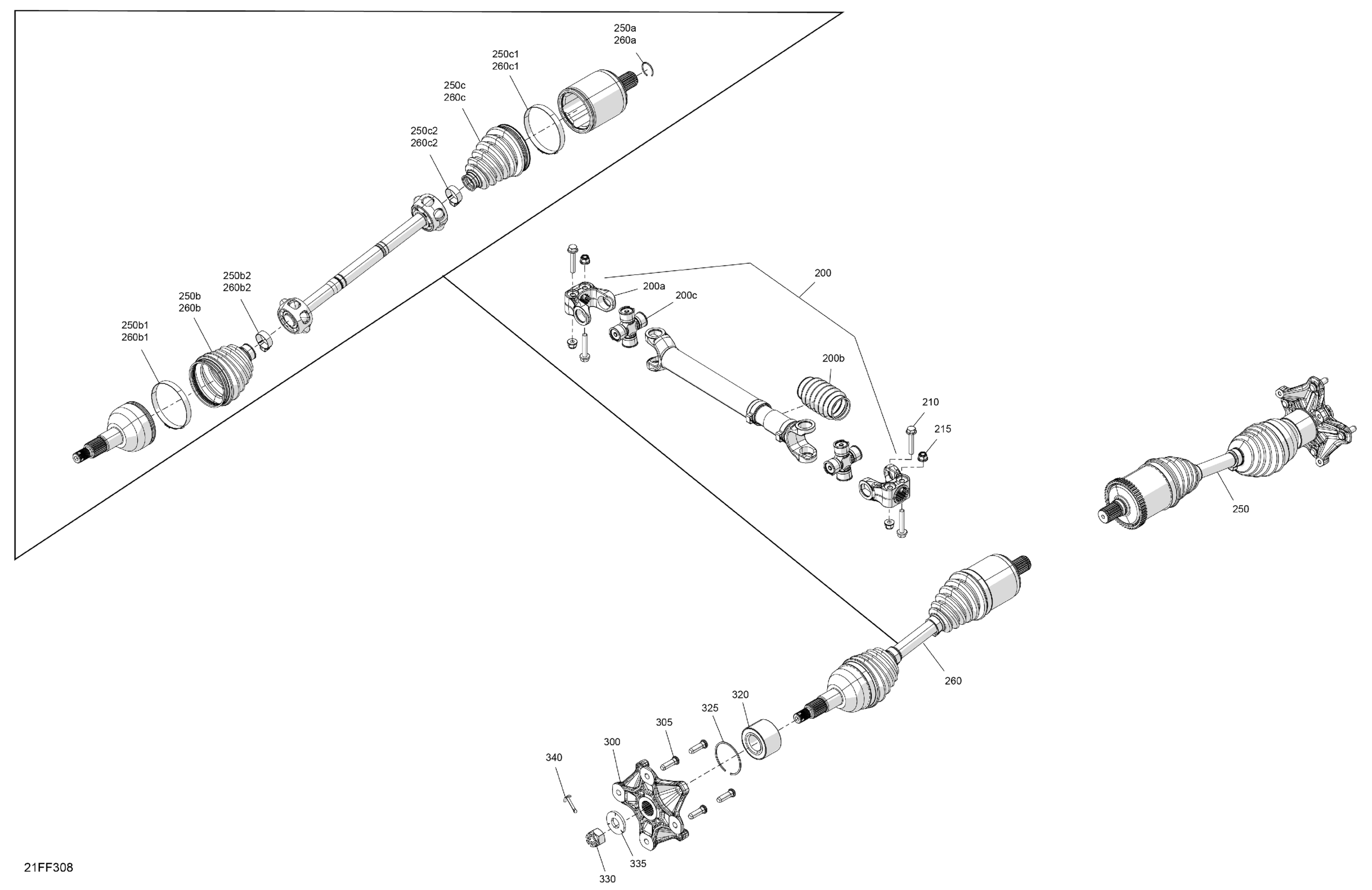

Can-Am Off-Road T Regulation - OUT-MAX - 4X4 - XTP - 1000R - 4VTN - Mineral Gray Satin - 2026 04- Drive - Rear - Common Parts Diagram

Description

Price

200

Rear Drive Axle | Includes 200 to 200c

705503888

$179.99

200a

Connecting Yoke 20Th

715900974

$38.99

200b

Drive Shaft Boot Kit

715900975

$14.30

200c

Universal Joint Ass'y

715900976

$46.49

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

215

Hex. Elastic Flange Nut M8

233281416

$1.48

250

CV Joint | Includes 250 to 250c2

705503460

$275.49

250a

Circlip Joint

715500463

$5.35

250b

CV Joint Boot Kit | Includes 250b to 250b2

715500531

$42.49

250b1

Clamp, Large

715500537

$5.29

250b2

Small Clamp

715500533

$5.29

250c

CV Joint Boot Kit | Includes 250c to 250c2

715500532

$42.49

250c1

Clamp, Large

715500538

$5.29

250c2

Small Clamp

715500533

$5.29

260

CV Joint | Includes 250 to 250c2

705503459

$243.99

260a

Circlip Joint

715500463

$5.35

260b

CV Joint Boot Kit | Includes 250b to 250b2

715500531

$42.49

260b1

Clamp, Large

715500537

$5.29

260b2

Small Clamp

715500533

$5.29

260c

CV Joint Boot Kit | Includes 250c to 250c2

715500532

$42.49

260c1

Clamp, Large

715500538

$5.29

260c2

Small Clamp

715500533

$5.29

300

Wheel Hub

705503257

$101.49

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

320

Ball Bearing

293350150

$52.99

325

Circlip

293370019

$4.68

330

Hex. Flange Castellated Nut M18

232291413

$7.98

335

Conical Spring Washer M18

250200171

$7.65

340

Cotter Pin

250400071

$2.11
