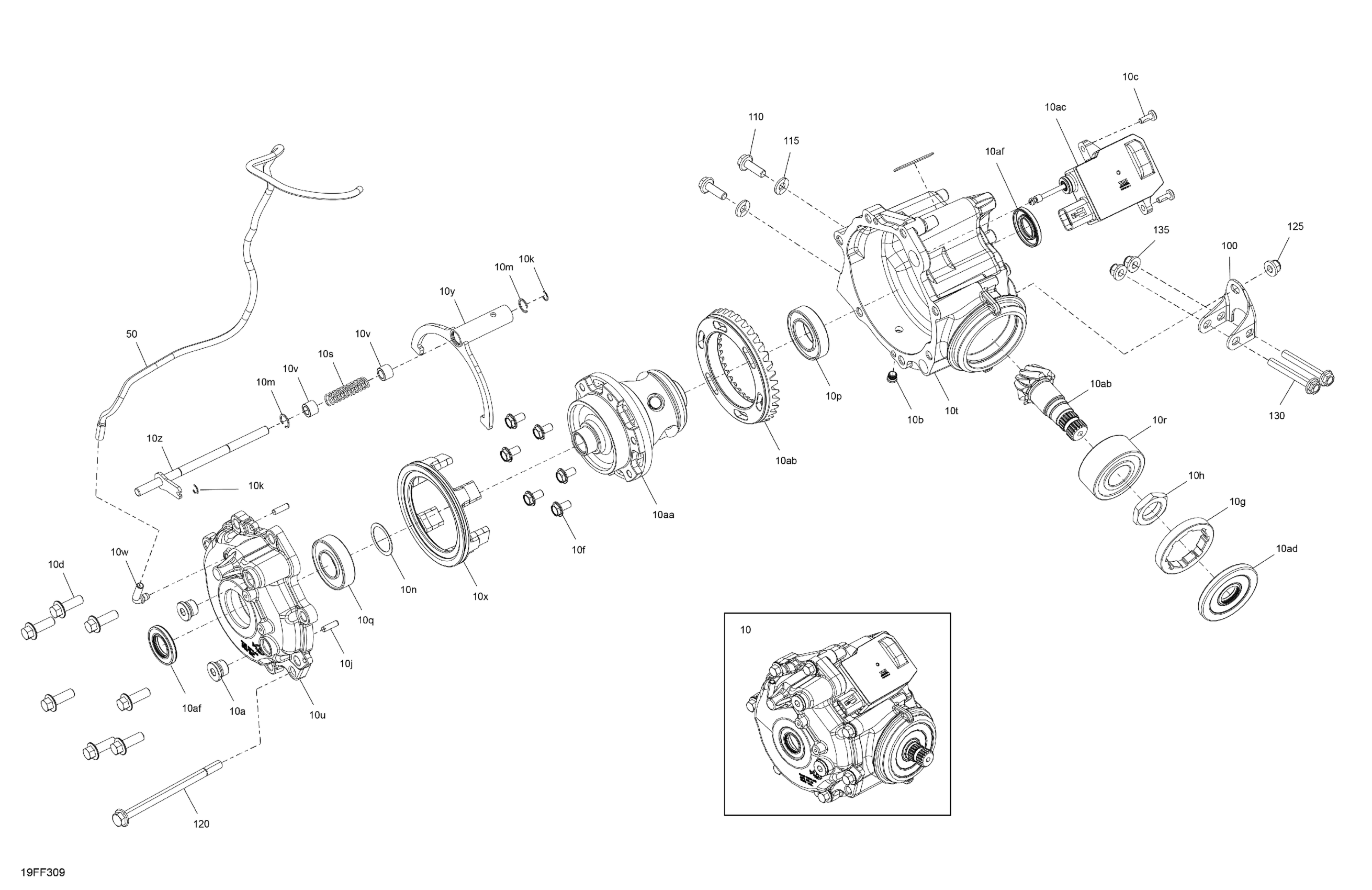

Can-Am Off-Road T Regulation - OUT-MAX - 4X4 - XT - 850 - 4STD - Fiery Red Metallic - 2026 04- Drive - Front - Differential Parts Diagram

Description

Price

Differential | Includes 10 to 10af

705404267

$1.00

10a

Fill Level Plug

705501889

$20.49

10b

Fill Level Plug M10

715900563

$27.49

10c

Torx Screw M6 X 16

705402845

$11.05

10d

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

10f

Custom Hex Screw Flange Head

715900798

$2.99

10g

Nut M75 X 1.5

705401819

$23.99

10h

Nut M27 X 1.5

705401820

$20.99

10j

Dowel Pin

715900559

$6.67

10k

Ring External Shaft

715900719

$28.99

10m

Ring, Internal Spiral Housing

715900720

$28.99

10n

Shim | 4X4

705401604

$57.99

10p

Ball Bearing

705402847

$49.99

10q

Ball Bearing | 4X4

705401606

$51.99

10r

Ball Bearing

715900721

$67.99

10s

Spring

715900722

$71.99

10t

Cover

715901020

$144.99

10u

Cover

715901017

$144.99

10v

Bushing

715900725

$19.99

10w

Vent Valve

705401935

$16.49

10x

Ring Gear Connector

715900819

$184.99

10y

Disconnect Fork

715900727

$83.99

10z

Shift Rail

715900728

$31.99

10aa

Differential Sub-Assembly

715900833

$932.99

10ab

Ring Gear And Pinion Set

715900970

$419.99

10ac

Actuator

715900953

$234.99

10ad

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

10af

Oil Seal

705401836

$7.51

Vent Hose

705403742

Unavailable

100

Support

705402706

$8.60

110

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

115

Conical Spring Washer 10 mm

234201474

$1.69

120

Hex. Flange Screw M10 X 160

230606046

$7.41

125

Hex. Flange Elastic Nut M10

233201436

$2.11

130

Hex. Flange Screw M10 X 75

207607544

$7.29

135

Hex. Flange Elastic Nut M10

233201436

$2.11
