RACK/TUNNEL EXTENSION WideTrak (4921302130014A)

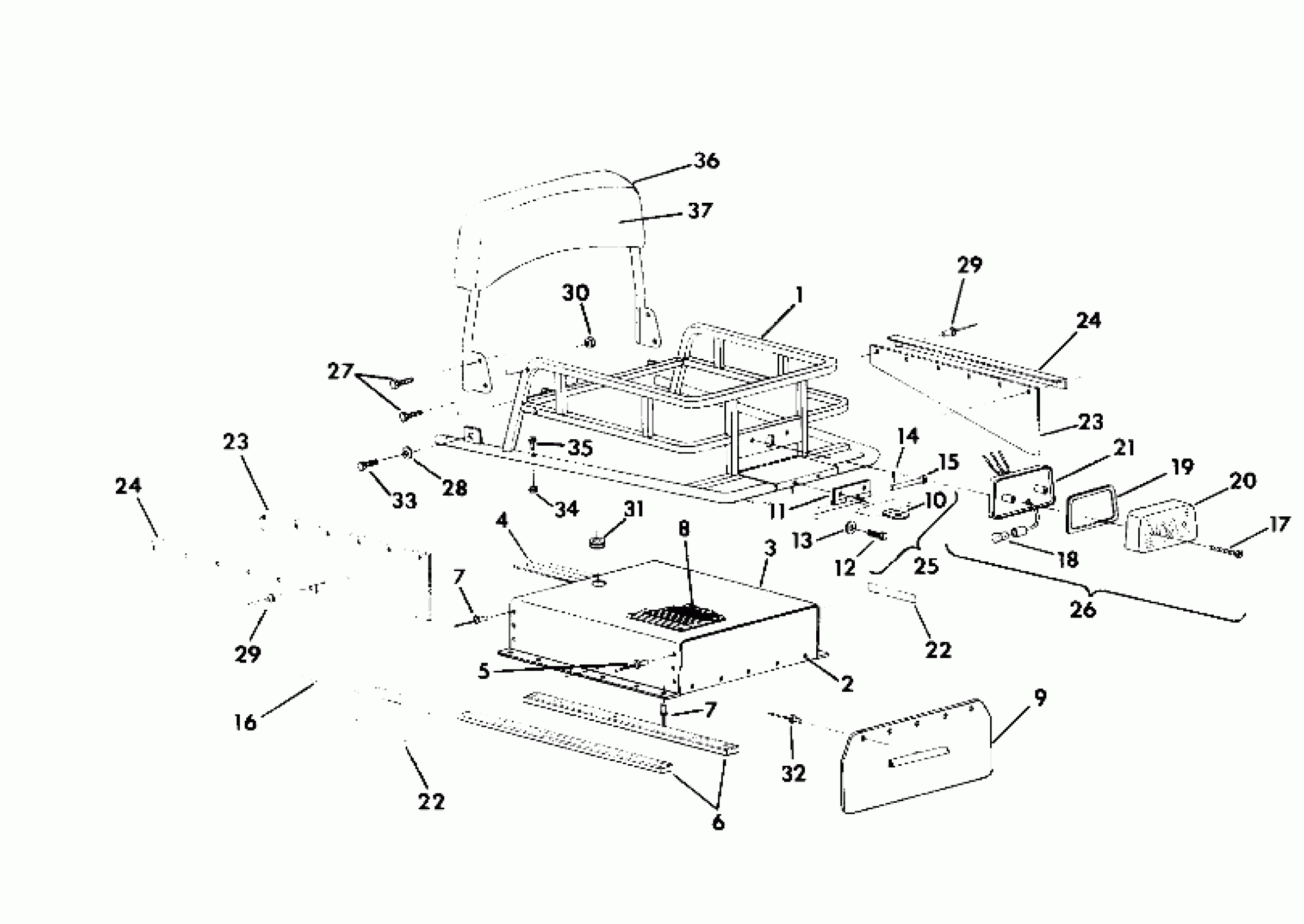

Polaris SWE WIDE TRAK - S922064 RACK/TUNNEL EXTENSION WideTrak (4921302130014A) Diagram
#
Description
Price
1
RACK,BLK,(W'TRAK)
1011758-067
Unavailable
2
PANEL,TUNNEL,BACK
5222325
$24.16
3
TUNNEL, EXT.
5222324
$405.94
4
BRKT,HARNESS PROTECTOR
5222323
$24.27
5
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
6
STRIP, WEAR, EXT.
5222448
$17.46
7
RIVET(50)
7621429
$1.49
7
RIVET(50)
7621429
$1.49
8
PROTECTOR, BED
5410560
$51.99
9
FLAP,SNOW(WIDETRAK)
5410553
Unavailable
10
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
11
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
12
SCREW(10) Substituted by 7512490
7512402
Unavailable
13
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
14
COTTER PIN(10)
7661401
$1.49
15
CLEVIS PIN(10)
7662209
$9.59
16
DECAL,REV/LOW RANGE [No Longer Available]
7072291
Unavailable
17
Screw, Taillight
4032029
$4.79
18
BULB,TAILLIGHT
4030043
$6.46
19
GASKET,TAILLIGHT
4032045
$4.03
20
LENS,TAILLIGHT
4032046
$32.37
21
BASE&SOCKET,T/L
4032047
Unavailable
22
REFLECTOR RED
2670070
$9.91
22
REFLECTOR RED
2670070
$9.91
23
SNOW FLAP-SIDE
5810222
Unavailable
23
SNOW FLAP-SIDE
5810222
Unavailable
24
BRKT,SNOW-FLAP
5220497-067
$12.39
24
BRKT,SNOW-FLAP
5220497-067
$12.39
25
HITCHKIT,L.T./STARTRAK (Incl. 10,14,15)
2870708
Unavailable
26
TAILLIGHT ASM. (Incl.17-21)
2432035
Unavailable
27
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
28
WASHER(10)
5210697
Unavailable
29
RIVET(50)
7621462
$1.49
29
RIVET(50)
7621462
$1.49
30
NUT-5/16-18 NYLOK-Y
7542324
$1.49
31
Grommet
5410437
$2.39
32
RIVET(50)
7621464
$3.99
33
BOLT(10)
7515481
$2.63
34
NUT-LOCK(10)
7542122
$1.49
35
SCREW(10)
7512222
$2.39
36
BACKREST ASM.
2681465
Unavailable
37
COVER, BACKREST
2681265
$257.13
