Description

Price

1

CONSOLE,BLK(W'TRAK)

5222680-067

Unavailable

2

RIVET Substituted by 7661638

7661625

$1.19

3

SCREW(10)

7512007

$3.99

4

WASHER-LOCK(10)

7571610

$3.99

5

Nut

7080229

$19.99

6

NUT-IGNITION SWITCH

7542807

Unavailable

7

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

8

DECAL, CONSOLE [No Longer Available]

7072973

Unavailable

9

SWITCH, IGN. Substituted by 2200357

4110111

Unavailable

10

Cable, Choke Control

7080290

$105.22

11

KIT-CHOKE CONTROL

2200188

$24.27

12

NUT(10)

7541925

$1.49

13

REGULATOR, VOLTAGE

4060092

Unavailable

14

HEAT SINK

5210650

Unavailable

15

BOLT-CARRIAGE(10)

7512263

$3.99

16

GUIDE, RECOIL

5431385

$10.51

17

WASHER,WROUGHT(10)

7558302

$1.59

18

NUT-LOCK(10)

7542122

$1.49

19

HARNESS, WIRE

2460333

Unavailable

20

HOUSING,W/RECEPTACLES

2200039

Unavailable

21

HOUSING 2 CIRCUIT W/REC [No Longer Available]

2200020

Unavailable

22

SWITCH,H-BAR HEATER Note:When ordering ignition Key PN 5410611 be sure to specify if for an A,B,C,D, or E switch Letter code will be labelled on underside of switch body behind console.

4110066

Unavailable

22

SWITCH,H-BAR HEATER Note:When ordering ignition Key PN 5410611 be sure to specify if for an A,B,C,D, or E switch Letter code will be labelled on underside of switch body behind console.

4110066

Unavailable

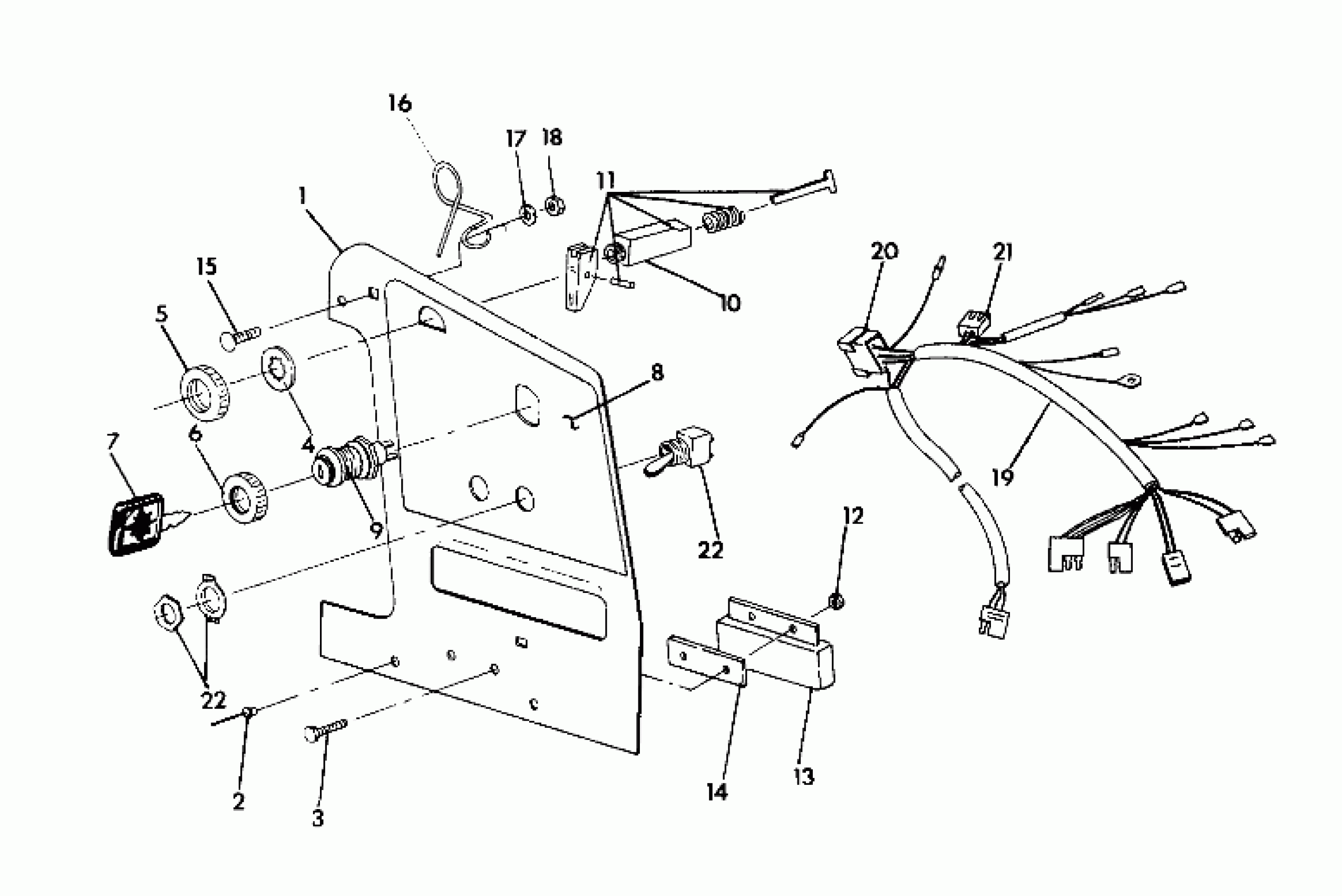

Polaris SWE WIDE TRAK - S922064 CONSOLE WideTrak (4921302130013A) Diagram

CONSOLE,BLK(W'TRAK)

RIVET Substituted by 7661638

SCREW(10)

WASHER-LOCK(10)

Nut

NUT-IGNITION SWITCH

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

DECAL, CONSOLE [No Longer Available]

SWITCH, IGN. Substituted by 2200357

Cable, Choke Control

KIT-CHOKE CONTROL

NUT(10)

REGULATOR, VOLTAGE

HEAT SINK

BOLT-CARRIAGE(10)

GUIDE, RECOIL

WASHER,WROUGHT(10)

NUT-LOCK(10)

HARNESS, WIRE

HOUSING,W/RECEPTACLES

HOUSING 2 CIRCUIT W/REC [No Longer Available]

SWITCH,H-BAR HEATER Note:When ordering ignition Key PN 5410611 be sure to specify if for an A,B,C,D, or E switch Letter code will be labelled on underside of switch body behind console.

SWITCH,H-BAR HEATER Note:When ordering ignition Key PN 5410611 be sure to specify if for an A,B,C,D, or E switch Letter code will be labelled on underside of switch body behind console.
