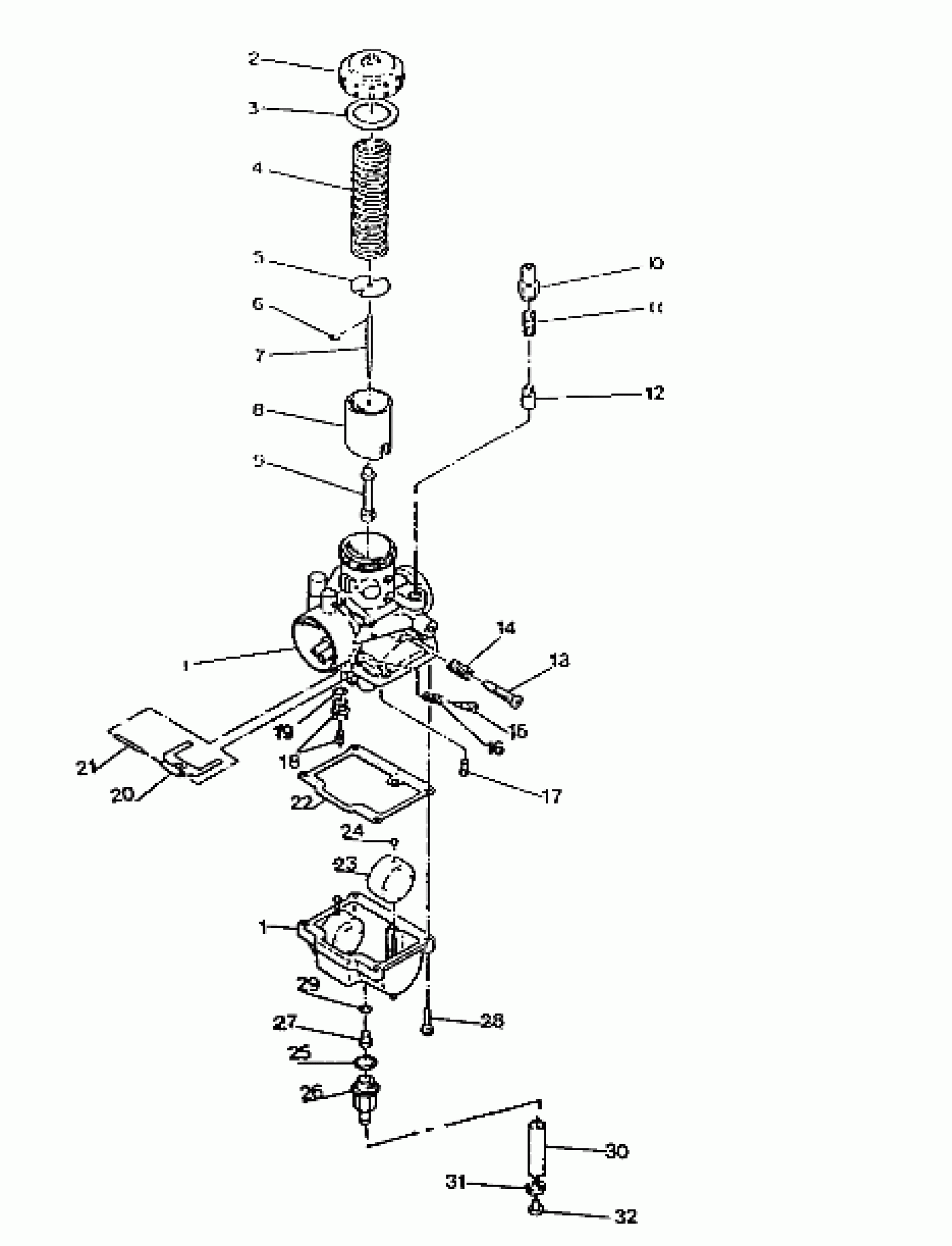

Polaris SWE WIDE TRAK - S922064 CARBURETOR WideTrak (4921302130039A) Diagram

#

Description
Price

1

CARBURETOR (Incl. 2-32)

3130457

Unavailable

1

CARBURETOR (Incl. 2-32)

3130457

Unavailable

2

TOP ASM. Substituted by 3130184 (Incl. 3)

3130435

Unavailable

3

GASKET

-------

Unavailable

4

SPRING, THROTTLE

3130318

$20.22

5

PLATE,THROTTLE Substituted by 3130027

3130216

Unavailable

6

E RING(10) Substituted by 3130508

3130003

Unavailable

7

NEEDLE,JET,(6EJ26)

3130423

$20.22

8

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

9

JET NEEDLE (P-6)

3130160

$36.41

10

HOLDER,GUIDE

3130199

$28.32

11

SPRING,PLUNGER

3130006

$8.89

12

PLUNGER ASM, STARTER

3130328

$32.37

13

SCREW,THROTTLE STOP

3130009

$19.99

14

SPRING,THROTTLE ADJ.

3130010

$8.89

15

SCREW,AIR

3130011

$19.99

16

SPRING,AIR ADJUST

3130012

$8.89

17

JET,PILOT,#35(10) (35)

3130066

$8.89

18

VALVE,NEEDLE Substituted by 3131146

3130016

$48.56

19

PACKING(10)

3130017

$4.03

20

ARM,FLOAT

3130018

$24.27

21

PIN, FLOAT Substituted by 3130235

3130240

$8.89

22

PACKING,FLOAT CHAMBER

3130020

$16.17

23

FLOAT ASM.

3130430

$43.56

24

CAP,(10)

3130237

$4.03

25

O RING

3130239

Unavailable

26

NIPPLE Substituted by 5020476

3130387

$10.56

27

JET,MAIN,HX.HD#190(10)

3130121

Unavailable

28

SCREW & WASHER(10)

3130025

$3.19

29

WASHER (10)

3130014

$1.59

30

FUEL LINE-50FT.PKG. Substituted by 8450003-1525 (Cut to Fit)

2870563

Unavailable

31

CLAMP-HOSE,(10)

7080236

$1.59

32

PLUG, TRAP Substituted by 5431893

5431001

Unavailable
