BRAKE and CHAINCASE WideTrak (4921302130021A)

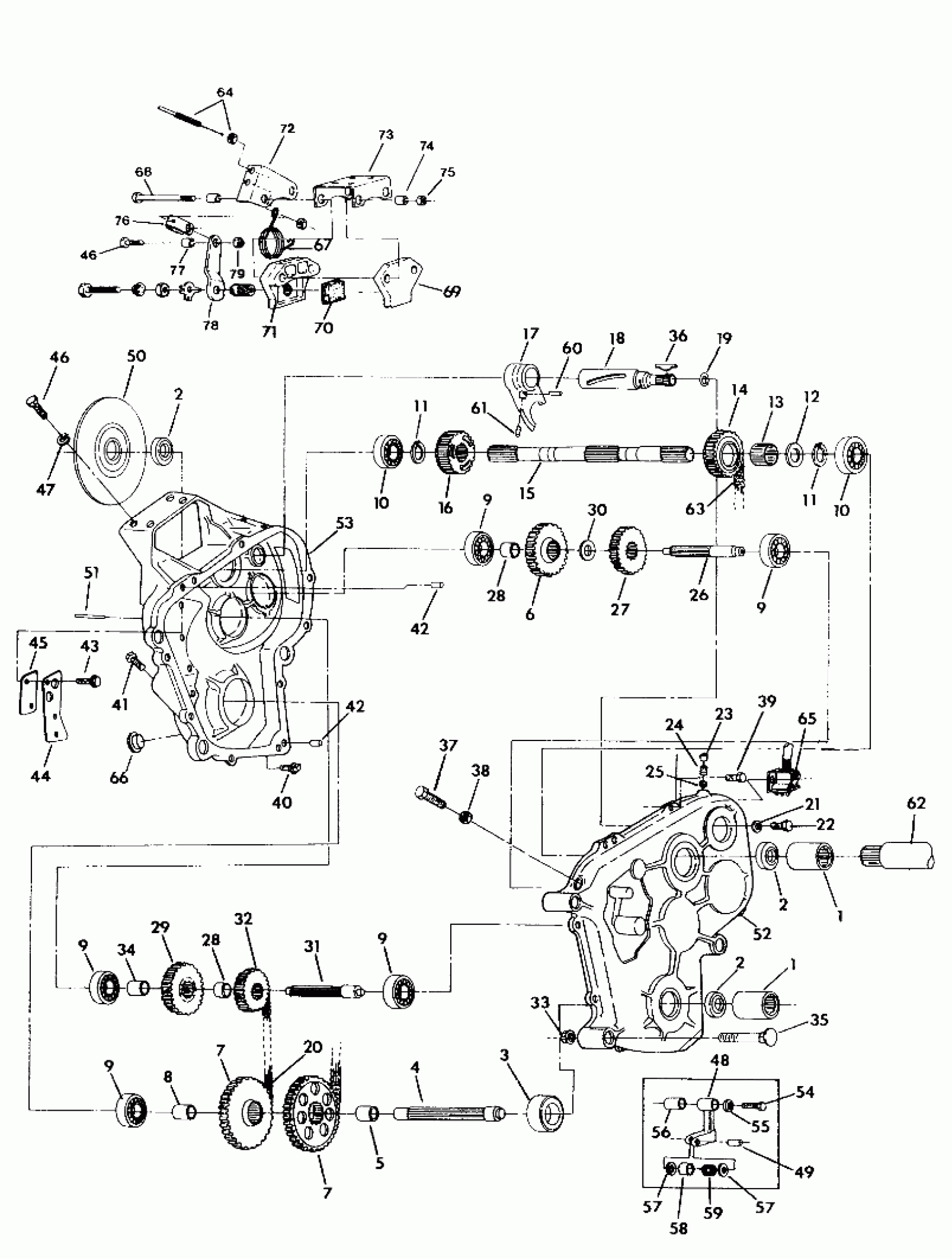

Polaris SWE WIDE TRAK - S922064 BRAKE and CHAINCASE WideTrak (4921302130021A) Diagram
#
1
COUPLER, GREASEABLE
1341096
Unavailable
1
COUPLER, GREASEABLE
1341096
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
3
BEARING,CHAINCASE
3514305
$19.99
4
SHAFT, OUTPUT
6230065
Unavailable
5
SPACER,OUTPUT SHAFT
5010227
Unavailable
6
GEAR,30T,LOW RANGE
5130758
Unavailable
7
SPROCKET-41T
3222037
Unavailable
7
SPROCKET-41T
3222037
Unavailable
8
SPACER,OUTPUT
5020480
Unavailable
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
10
BEARING,205,W/O SEAL
3514304
$15.99
10
BEARING,205,W/O SEAL
3514304
$15.99
11
RING, RET.(10)
7710411
Unavailable
11
RING, RET.(10)
7710411
Unavailable
12
WASHER(10)
7555751
Unavailable
13
BEARING, NEEDLE
3554503
Unavailable
14
GEAR,19T,FWD. (19T)
5130697
Unavailable
15
SHAFT, INPUT
5020508
Unavailable
16
PINION, REVERSE
5130667
Unavailable
17
FORK, SHIFT (Mach.)
5130662
$134.99
18
SHAFT, SHIFT
5130802
Unavailable
19
O RING(10)
5410440
$4.84
20
CHAIN, SILENT
3224037
Unavailable
21
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
SCREW(10)
7512144
Unavailable
23
SCREW, SET(10)
7515473
Unavailable
24
SPRING,SHIFTER DETENT Substituted by 7041483
7041187
Unavailable
25
BALL, DETENT
7080310
$5.99
26
SHAFT,LOW RANGE
5020481
Unavailable
27
GEAR, 24T
5130607
Unavailable
28
SPACER,REV.SHAFT
5010225
Unavailable
28
SPACER,REV.SHAFT
5010225
Unavailable
29
GEAR,30T,REVERSE
5130757
Unavailable
30
SPACER
5010260
Unavailable
31
SHAFT, REVERSE
5020446
Unavailable
32
SPKT, 18T
3221042
$68.48
33
NUT(10)
7542423
$3.99
34
SPACER
5010261
Unavailable
35
BOLT(10)
7515474
$3.33
36
WEIGHT, KEY(10)
7721112
Unavailable
37
SCREW(10)
7512470
Unavailable
38
NUT(10)
7542404
$1.59
39
SCREW(10)
7512225
$3.99
40
PLUG, PIPE
7051513
Unavailable
41
PLUG, PIPE(10)
7051511
Unavailable
42
PIN, DOWEL(10)
7661904
Unavailable
42
PIN, DOWEL(10)
7661904
Unavailable
43
SCREW(10)
7512252
Unavailable
44
PLATE, VENT
5211036
Unavailable
45
GASKET, VENT
5810305
Unavailable
46
BOLT(10)
7512240
$3.99
46
BOLT(10)
7512240
$3.99
47
LOCK WASHER(10)
7552801
$1.59
48
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
49
PIN,CHAIN TIGHTENER
7662210
Unavailable
50
DISC BRAKE WELD.
1910027
Unavailable
51
PIN-SPIRAL(10)
7661504
$1.27
52
GEARCASE,LH MACH.
5130628
Unavailable
53
GEARCASE,RH,MACH.
5130755
Unavailable
54
BOLT(10)
7512329
$3.99
55
WASHER,5/16SHAKEPROOF(10)
7577909
Unavailable
56
BUSHING
5010217
Unavailable
57
WASHER THRUST(10)
7558702
$1.59
57
WASHER THRUST(10)
7558702
$1.59
58
WHEEL,C/C IDLER
5630123
Unavailable
59
BEARING
3553002
$11.99
60
PIN, DOWEL(10)
7661819
Unavailable
61
PIN, SPRING(10)
7661206
Unavailable
62
SHAFT,INPUT,BLK.
5020540-067
Unavailable
63
CHAIN 66 PITCH
3224024
Unavailable
64
CABLE, BRAKE
7080432
Unavailable
65
SW,REV./NEUT.INDIC.
4110062
$32.37
66
PLUG, PIPE(10)
7051519
Unavailable
67
SPRING, BRAKE RETURN
7041147
Unavailable
68
BOLT(10)
7515478
$11.43
69
CALIPER
5630305
$36.41
70
PAD, BRAKE,(THICK)
1930588
Unavailable
71
CALIPER
1930593
Unavailable
72
BRKT,BRAKE,BLK.
5220211-067
$4.10
73
BRKT,BRAKE MTG.
5220514-067
Unavailable
74
BUSHING
1930559
Unavailable
75
NUT
1930558
Unavailable
76
PIN, CLEVIS
7080316
Unavailable
77
BUSHING
5332795
$5.56
78
LEVER-BRAKE
5430602
$36.41
79
NUT-LOCK(10)
7542122
$1.49
