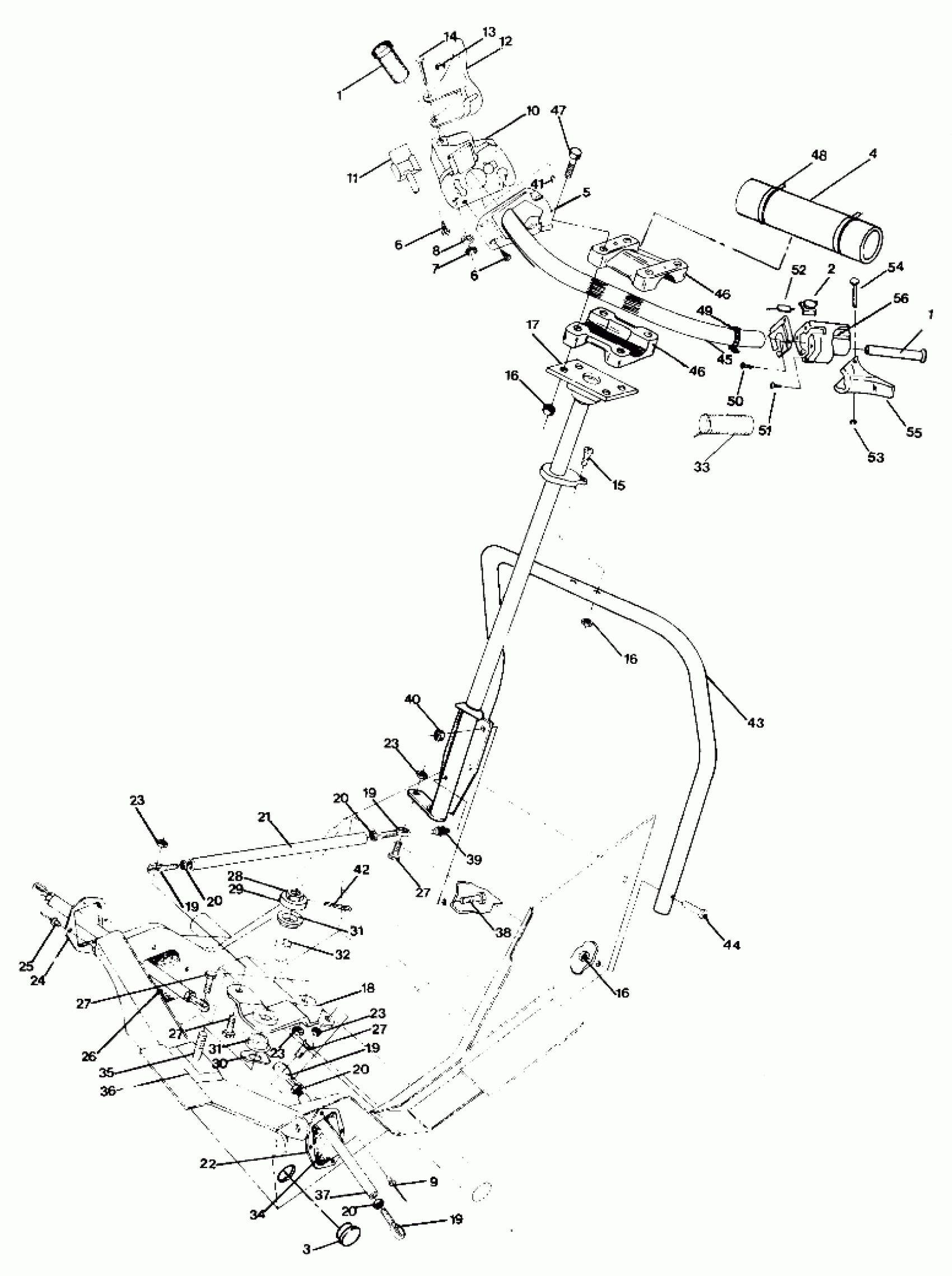

Polaris SWE WIDE TRAK - S912064 STEERING WideTrak (4919301930009A) Diagram
#
1
GRIP,H'BAR,RED Substituted by 5410272-067
5410272-093
$24.27
1
GRIP,H'BAR,RED Substituted by 5410272-067
5410272-093
$24.27
2
Switch, Dimmer
4110104
Unavailable
3
PLUG, HOLE(10)
7080416
$5.65
4
Pad, Handlebar
5521181
Unavailable
5
BLOCK-ADAPTER
5430604
$13.75
6
SCREW-SEMS(10)
7511848
$3.99
6
SCREW-SEMS(10)
7511848
$3.99
7
RING-RETAINING EXTERNAL
7710401
$3.99
8
WASHER(10)
7555730
$3.99
9
RIVET(50)
7621429
$1.49
10
BLOCK,THROTTLE/BRAKE Substituted by 5431592
5431265
$49.99
11
SWITCH-AUX.SHUT OFF
4110056
$48.81
12
LEVER-THROTTLE
5430652
Unavailable
13
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
14
PIN-RETAINING .186X1.780-AL
7661624
$12.79
15
SCREW(10)
7512183
Unavailable
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
17
POST, STEERING Substituted by 1823138-067
1823138
Unavailable
18
STEERING ARM CTR. Substituted by 1822040-067
1822040
Unavailable
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
21
ROD-DRAG LINK
5332712
Unavailable
22
PLATE,LH,BOOTSEAL Substituted by 5210959-067
5210959
Unavailable
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
24
PLATE,RH,BOOT SEAL
5210904
Unavailable
25
RIVET(50)
7621301
$3.99
26
BOOT-TIE ROD
5410328
Unavailable
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
28
NUT(10)
7542712
$9.59
29
WASHER(10)
7555721
$1.49
30
WASHER,WAVE(10)
7555735
$3.99
31
BUSHING
3563907
$3.99
31
BUSHING
3563907
$3.99
32
BUSHING-SPACER
5010161
Unavailable
33
HEATER,HANDLEBAR
2460247
Unavailable
34
BOOT , LH
5410388
Unavailable
35
BOLT(10)
7512658
Unavailable
36
BLOCK-CTR.STEERING
5130534
Unavailable
37
ROD,TIE,RED Substituted by 5332713-067
5332713-093
Unavailable
38
BOLT(10) Substituted by 7512377
7512394
Unavailable
39
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
SCREW(10)
7512465
$3.99
42
PIN COTTER(10)
7661203
$1.49
43
HOOP, STEERING Substituted by 1011819-067
1011819
Unavailable
44
BOLT-CARRIAGE(10)
7512262
Unavailable
45
HANDLEBAR Substituted by 1823135-067
1823135
Unavailable
46
BLOCK,HANDLEBAR Substituted by 5630187-067
5630187-01
Unavailable
46
BLOCK,HANDLEBAR Substituted by 5630187-067
5630187-01
Unavailable
47
BOLT(10)
7512254
Unavailable
48
TIE, CABLE(10)
7080356
$2.39
49
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
50
SCREW(10)
7512465
$3.99
51
SCREW-SEMS(10)
7511848
$3.99
52
Switch, Brake Light
4110105
Unavailable
53
CLIP-SPEED.(10)
7670044
$4.79
54
BOLT(10)
7512298
$3.99
55
LEVER-BRAKE
5430602
$36.41
56
BLOCK, THROTTLE Substituted by 5431265
5431076
$49.99
