ENGINE MOUNTING SuperTrak (4919291929015A)

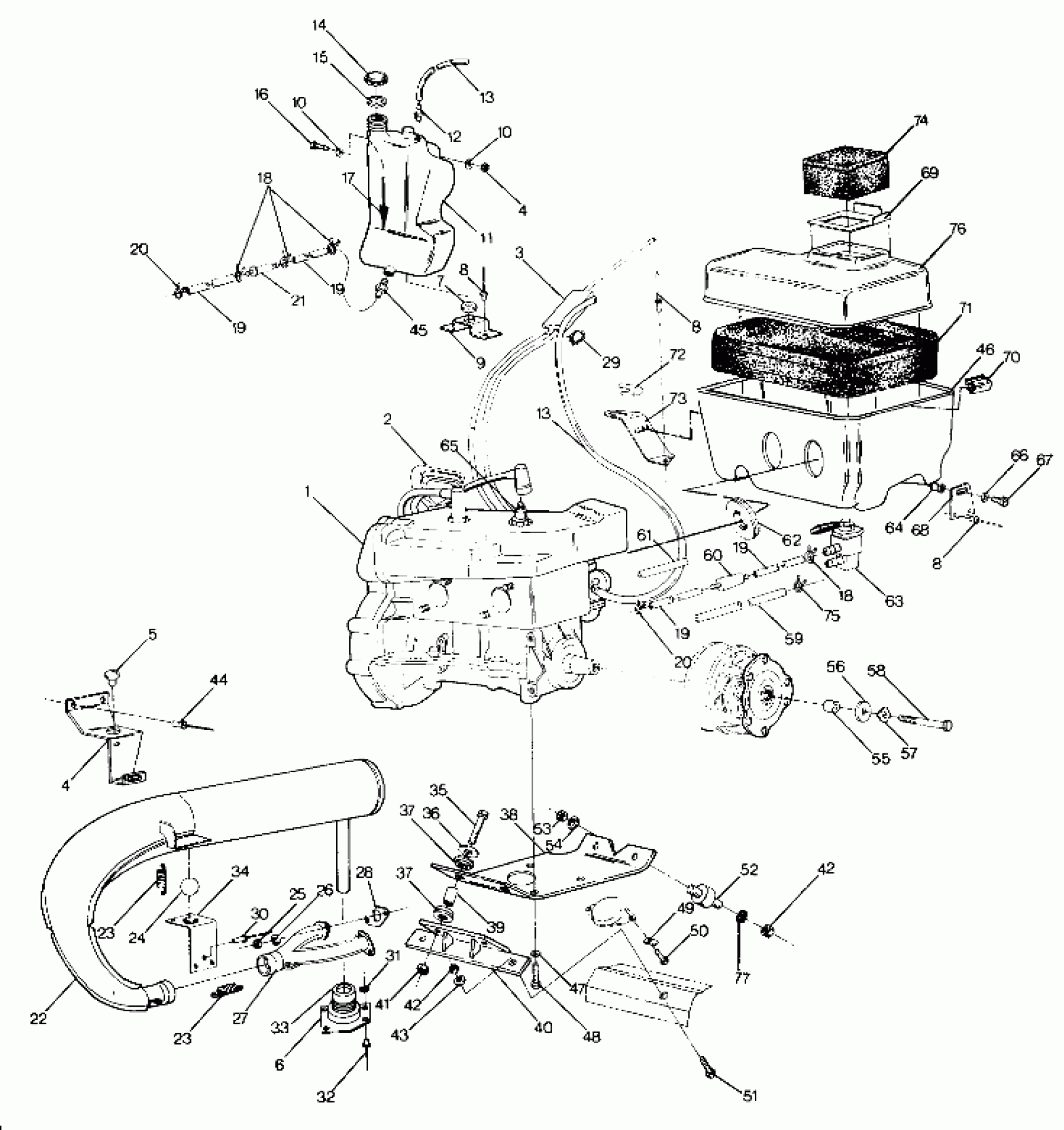

Polaris SWE TRAIL SUPERTRAK - S910161 ENGINE MOUNTING SuperTrak (4919291929015A) Diagram
#
1
ENG.EC50PM-03 Substituted by 1211442
1211459
Unavailable
2
HANDLE-RECOIL
5430520
Unavailable
3
CABLE, THROTTLE
7080289
$154.99
4
BRKT,MUFFLER,REAR Substituted by 5222146-067
5222146
Unavailable
4
BRKT,MUFFLER,REAR Substituted by 5222146-067
5222146
Unavailable
5
DAMPNER, VIB.
5410467
$8.79
6
HAT, EXHAUST Substituted by 5432465
5431058
Unavailable
7
GROMMET RUBBER
5410021
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
9
BRACKET, OIL TANK [No Longer Available]
5210961
Unavailable
10
WASHER,WROUGHT(10)
7558302
$1.59
10
WASHER,WROUGHT(10)
7558302
$1.59
11
TANK, OIL
5430997
Unavailable
12
VENT-TANK
5430579
Unavailable
13
KIT-TANK VENT
2200190
Unavailable
13
KIT-TANK VENT
2200190
Unavailable
14
CAP,OIL TANK
5430779
$14.56
15
GASKET-OIL CAP
5810141
$2.39
16
BOLT(10)
7512247
$2.39
17
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
18
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
18
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
20
CLAMP-HOSE(10)
7080134
Unavailable
20
CLAMP-HOSE(10)
7080134
Unavailable
21
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
22
MUFFLER [No Longer Available]
1260536
Unavailable
23
SPRING, EXHAUST(10)
7042031
$5.65
23
SPRING, EXHAUST(10)
7042031
$5.65
24
SOCKET
5220439
Unavailable
25
NUT(10)
3080285
Unavailable
26
WASHER LOCK ,(10)
3080530
$3.19
27
MANIFOLD Substituted by 1260505-029
1260505
Unavailable
28
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Unavailable
29
CLIP(10)
7080278
$2.63
30
RIVET(50)
7621429
$1.49
31
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
32
POP RIVET(50)
7621418
$1.49
33
Boot, Exhaust
5410502
$24.27
34
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
35
SCREW(10)
7512533
$1.75
36
WASHER(10)
7555740
$1.59
37
MOUNT
3110022
Unavailable
37
MOUNT
3110022
Unavailable
38
PLATE,ENG.MT.
5222169
Unavailable
39
SPACER
5332779
Unavailable
40
MOUNT, MOTOR Substituted by 1011587-067
1011587
Unavailable
41
NUT, LOCK,(10)
7542503
$10.39
42
NUT-LOCK(10)
7542439
$1.49
42
NUT-LOCK(10)
7542439
$1.49
43
WASHER(10)
7555801
$3.99
44
RIVET [No Longer Available]
7661452
Unavailable
45
FITTING, OUTLET
7052042
$8.99
46
SILENCER, DRILLED
5430953
Unavailable
47
WASHER LOCK(10)
7553101
$3.99
48
BOLT(10)
7512539
$3.99
49
SPEED NUT(10)
7670021
$6.99
50
BOLT-CARRIAGE(10)
7512263
$3.99
51
BOLT(10) Substituted by 7512457
7512491
Unavailable
53
NUT LOCK(10)
7542403
$3.99
54
WASHER(10) Substituted by 7555806
7555720
$0.79
55
BUSHING-.437 X.770 X.50
5430261
$7.19
56
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
57
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
58
BOLT(10)
7512565
$19.99
59
HOSE,IMPULSE [No Longer Available]
5521132
Unavailable
60
FILTER FUEL,(10)
2530008
$4.84
61
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
62
BOOT
5410403
$12.99
63
VALVE,FUEL SHUT-OFF
7052040
Unavailable
64
NUT-WELL(10)
7541923
$5.59
65
SPARKPLUG (10)
3070156
$3.99
66
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
67
SCREW(10)
7512279
$1.49
68
BRACKET, SILENCER
5211274
$9.70
69
RETAINER [No Longer Available]
5222467
Unavailable
70
CLIP, AIR BOX,(10)
7670055
$7.99
71
BAFFLE ASM.
1253102
$64.75
72
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
73
BRKT,AIR SILENCER,BLK. Substituted by 5223973-067
5223973
Unavailable
74
INTAKE ASM, FOAM
1253107
$36.41
75
HOSE CLAMP, RED
7080003
$1.49
76
COVER, SILENCER
5430920
$61.99
77
WASHER(10)
7555721
$1.49
