CONSOLE SuperTrak (4919291929006A)

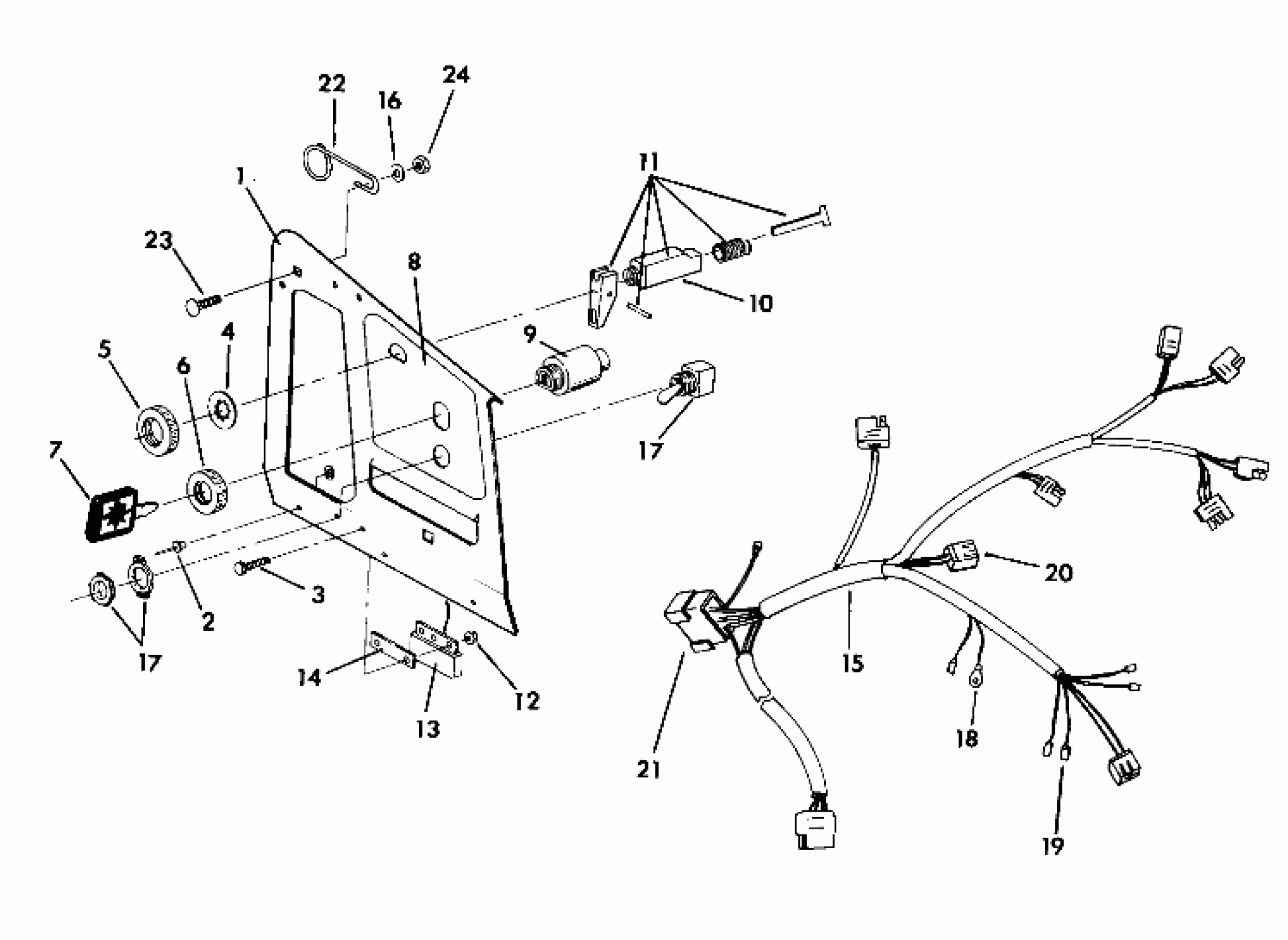

Polaris SWE TRAIL SUPERTRAK - S910161 CONSOLE SuperTrak (4919291929006A) Diagram
#
Description
Price
1
CONSOLE,BLK,'CLASSIC' Substituted by 5222495-067
5222495
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
SCREW(10)
7512007
$3.99
4
WASHER-LOCK(10)
7571610
$3.99
5
Nut
7080229
$19.99
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
KEY, IGNITION
5410378
$13.75
8
DECAL, CONSOLE [No Longer Available]
7072973
Unavailable
9
SWITCH, IGN. Substituted by 2200357
4110111
Unavailable
10
Cable, Choke Control
7080290
$105.22
11
KIT-CHOKE CONTROL
2200188
$24.27
12
NUT(10)
7541925
$1.49
13
REGULATOR - MINKS
4060071
Unavailable
14
HEAT SINK
5210650
Unavailable
15
HARNESS, WIRE
2460319
Unavailable
16
WASHER,WROUGHT(10)
7558302
$1.59
17
SWITCH,H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Unavailable
17
SWITCH,H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Unavailable
18
Terminal, Ring
4020092
Unavailable
19
TERMINAL ,(10)
4020099
Unavailable
20
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
21
Housing w/Receptacle
4020057
$3.51
22
MOUNT, RING RECOIL
5224441
Unavailable
23
BOLT-CARRIAGE(10)
7512263
$3.99
24
NUT-LOCK(10)
7542122
$1.49
24
KIT,IGN. SWITCH (Incl. 6,7,9) NOTE: If only key is needed, order P/N 4110112 and specify If for an A, B, C, D, or E switch. Letter code will be labelled on switch body behind console.
2200357
Unavailable
